Site Location  Manufacture KW Volts Amps RPM Poles # of Brushes in Use Photo - Collector / Comm Collector / Comm Notes Photo Holder Holder Notes Photo Brush Brush Notes Brush Size Recommendation

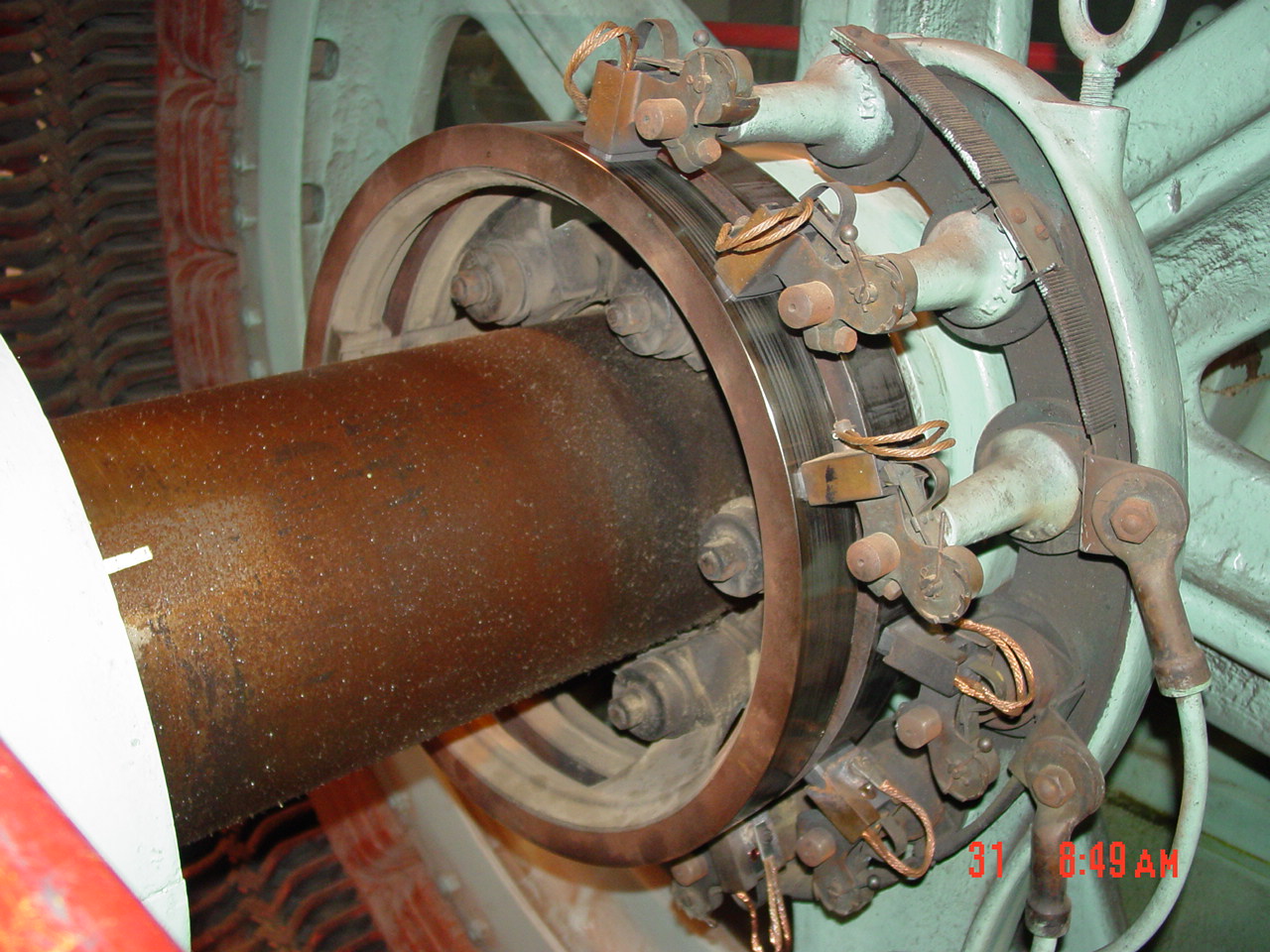

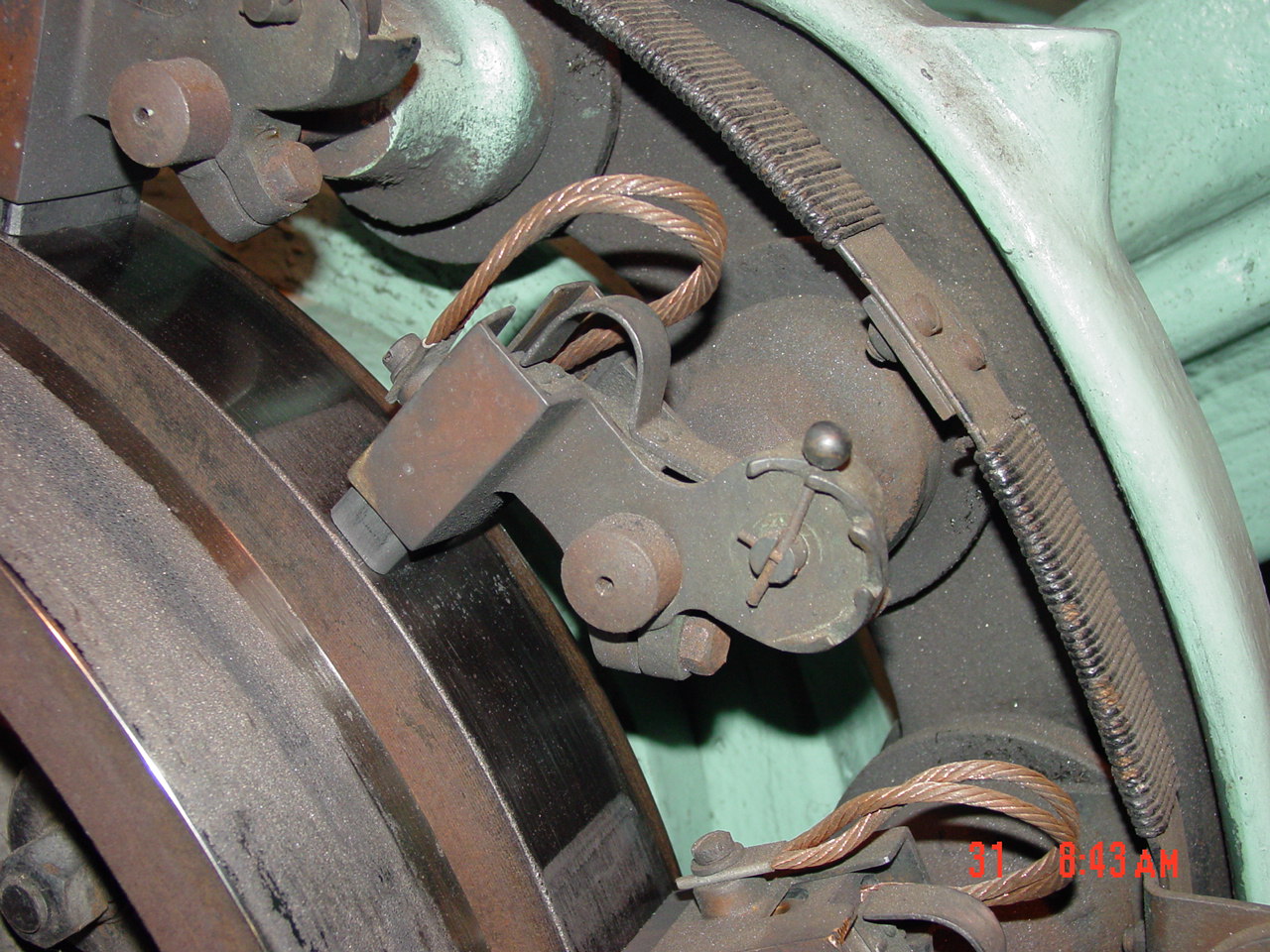

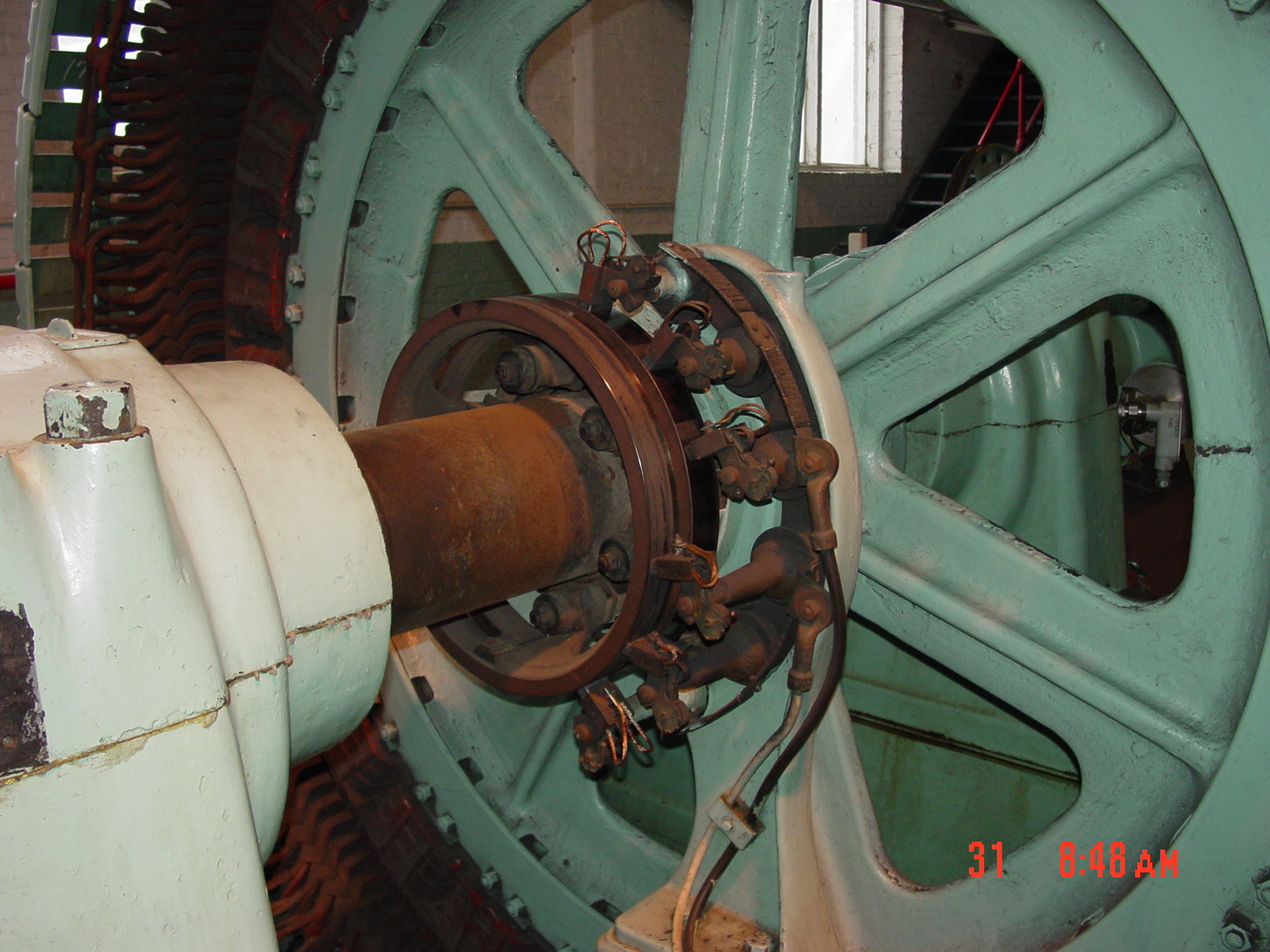

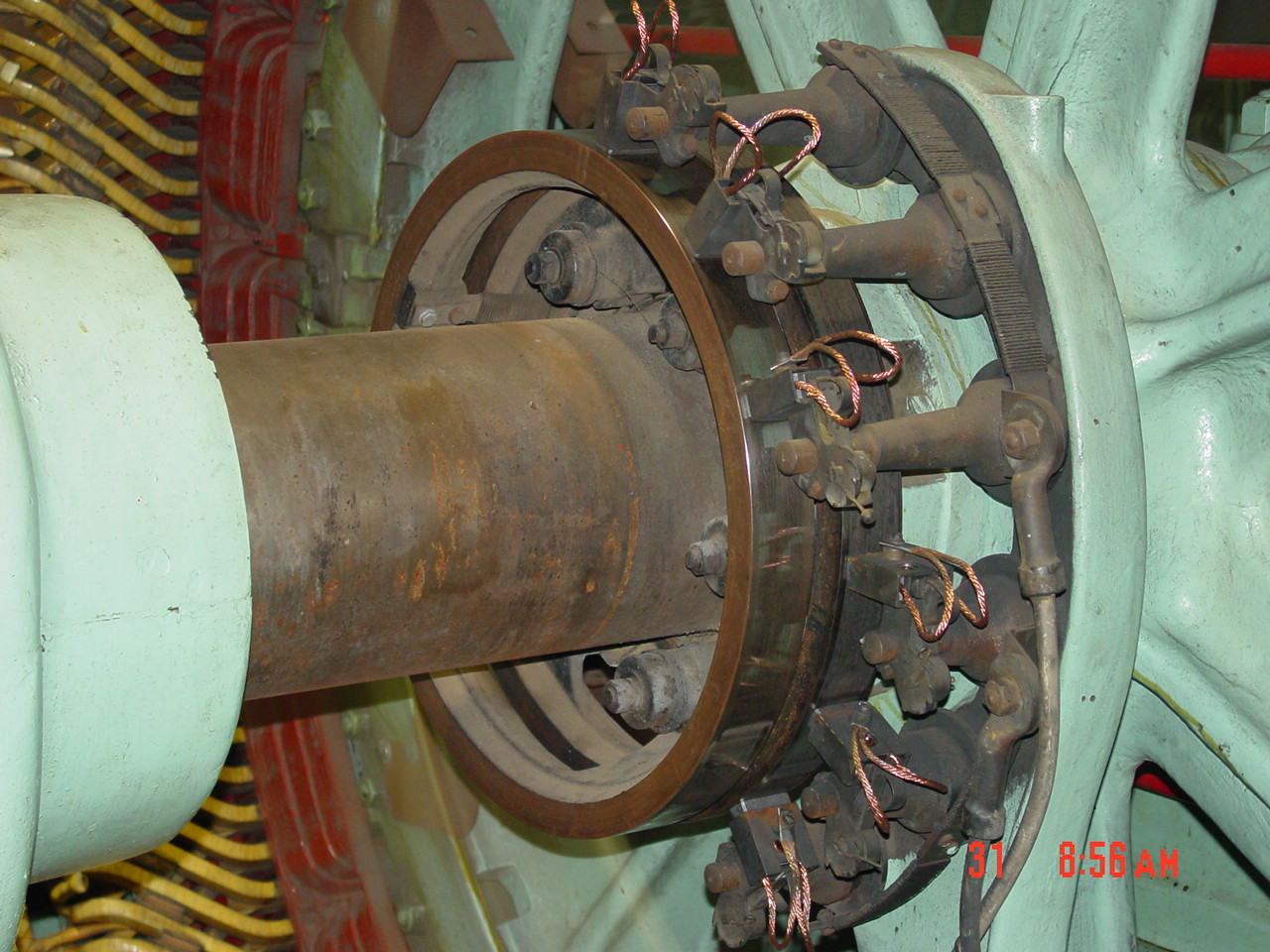

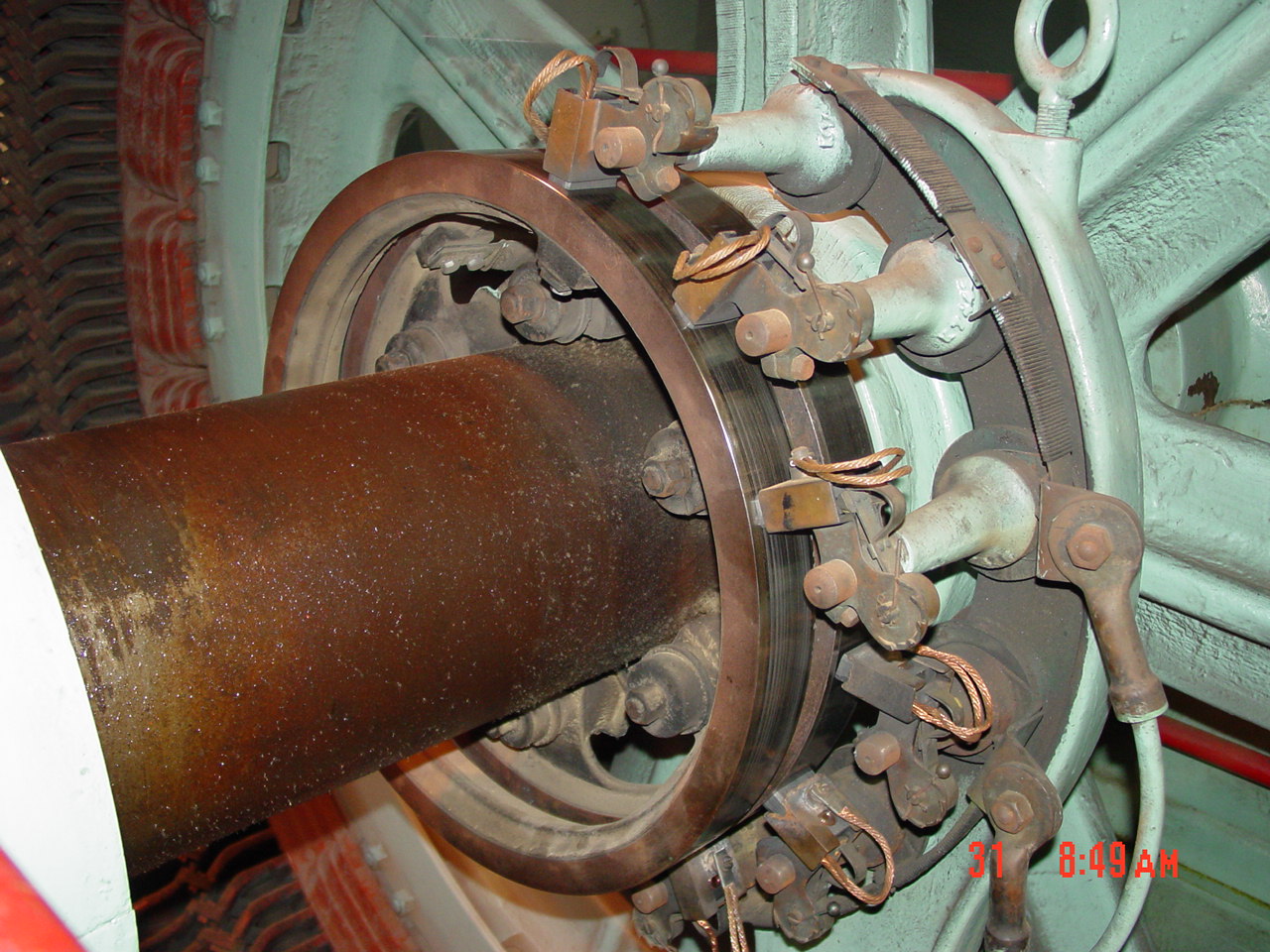

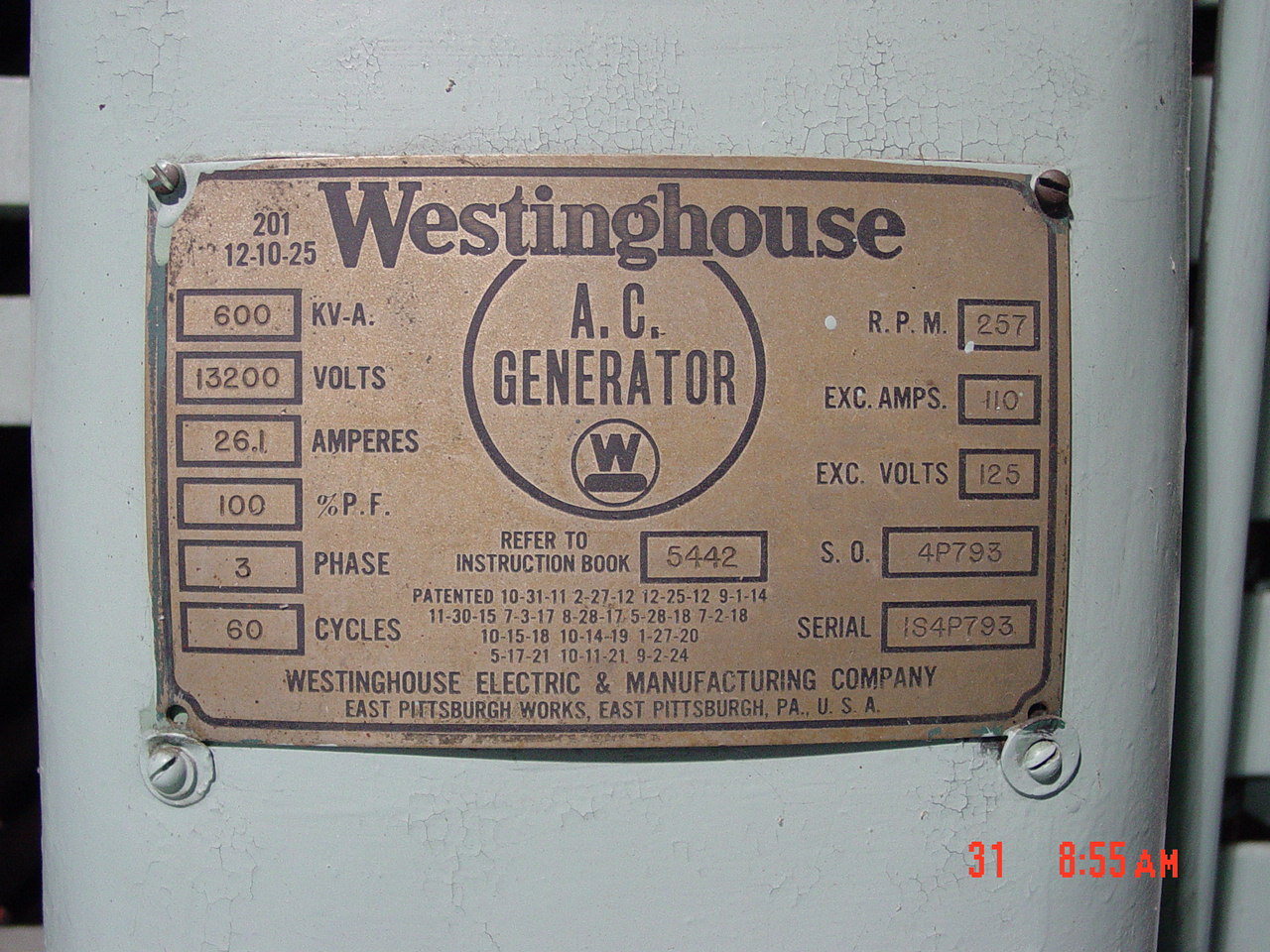

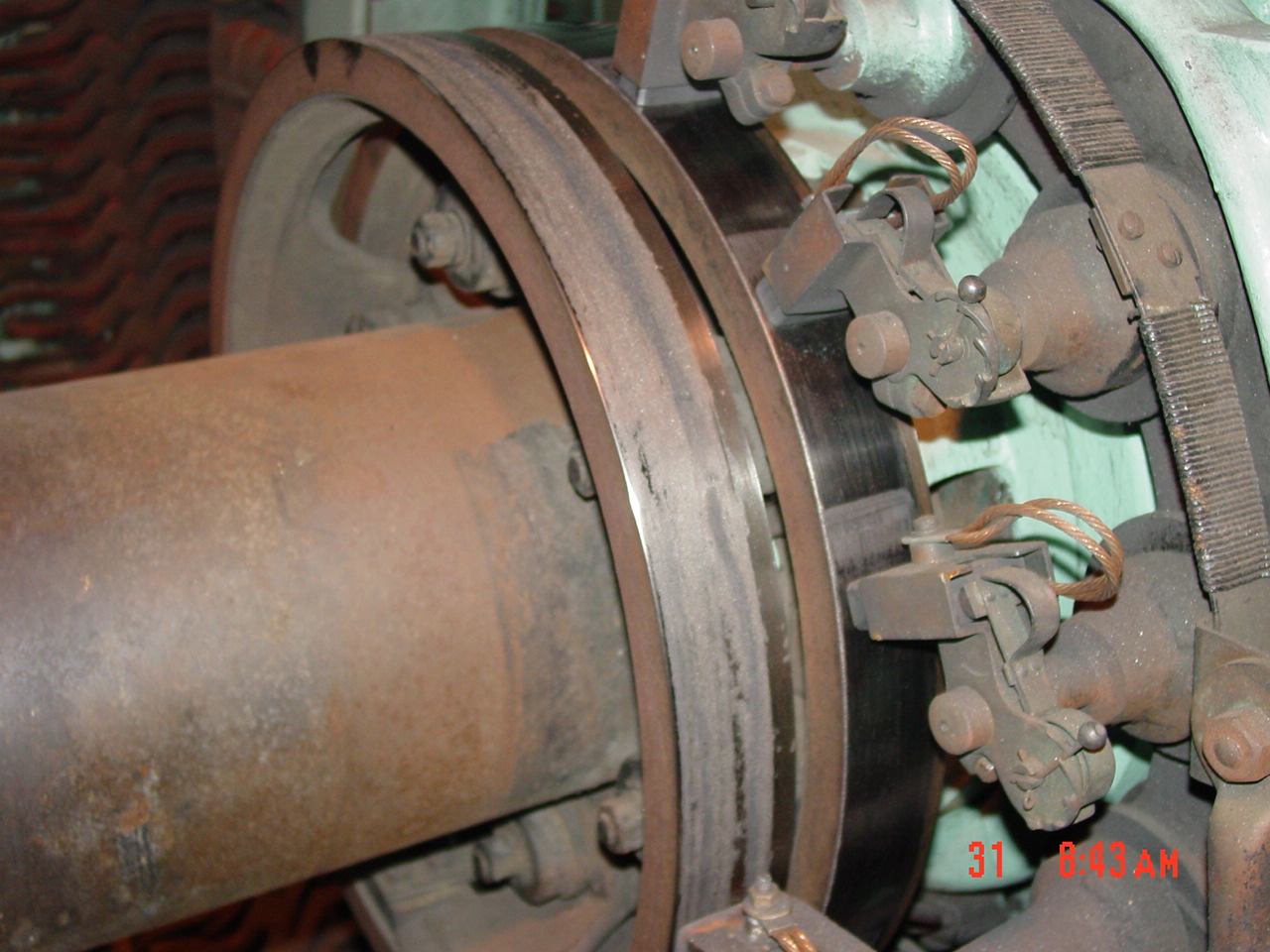

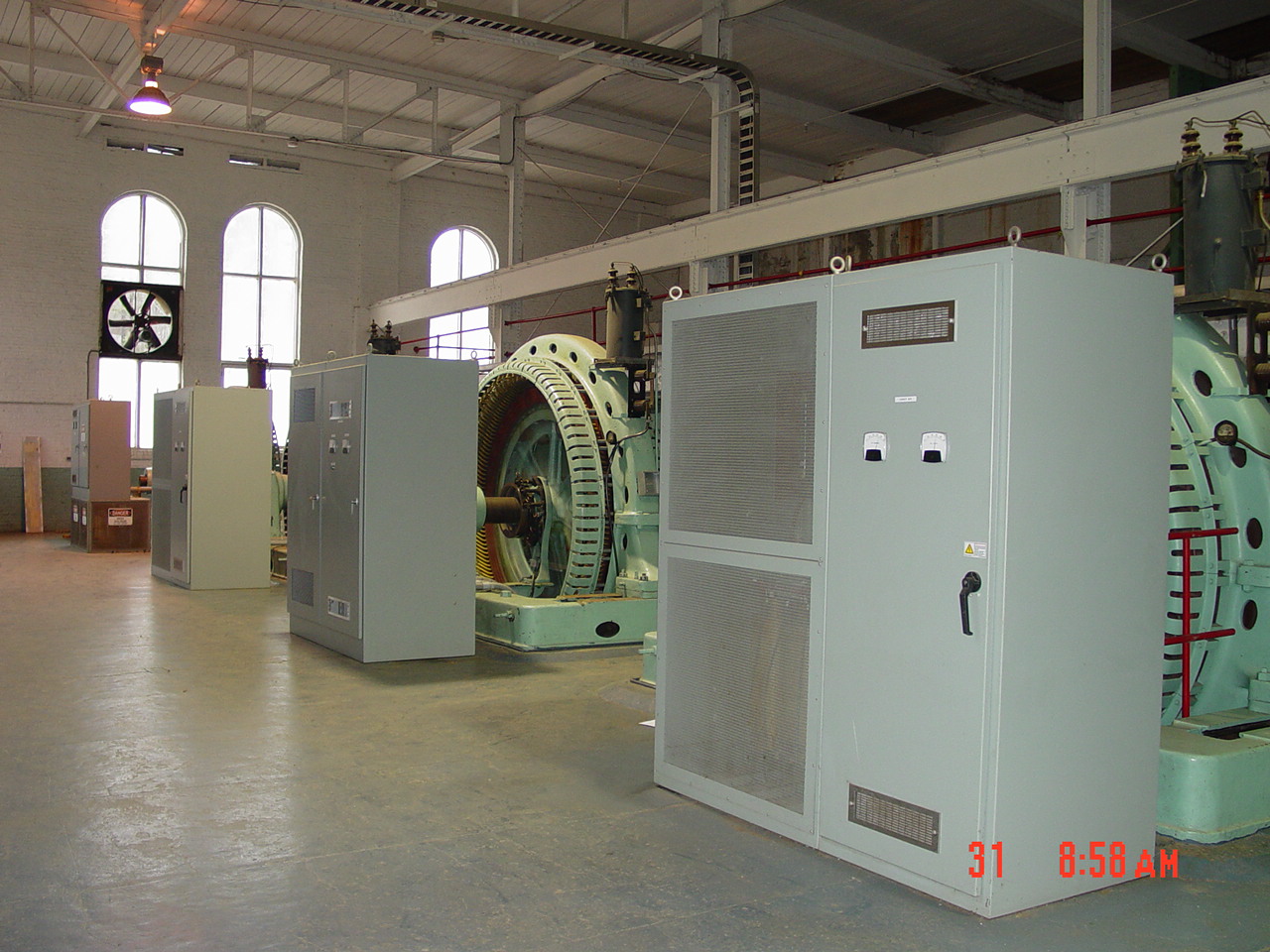

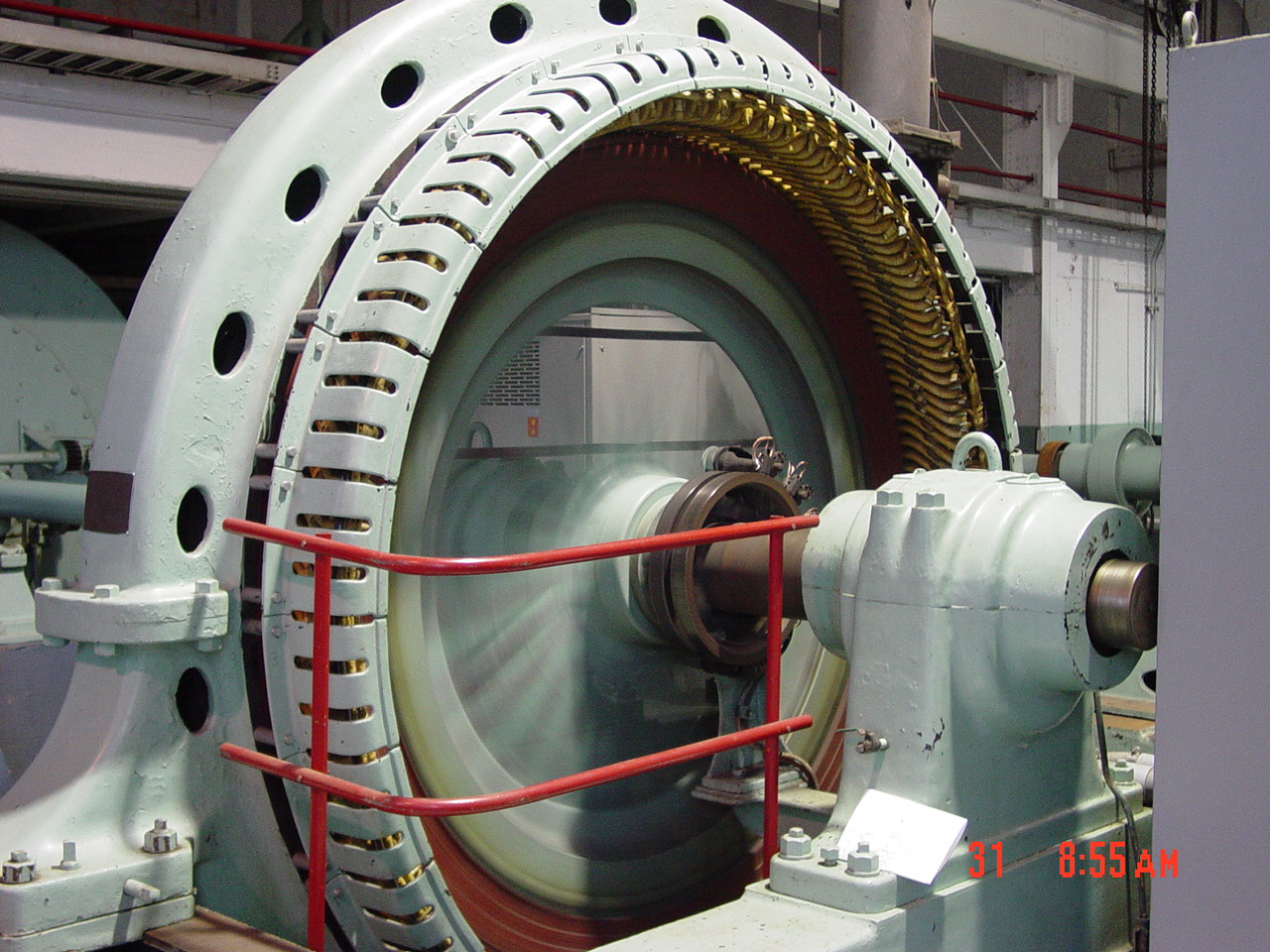

Saluda Dam Unit 1 Westinghouse 600 13200 26.25 257 2 6 Collector Truing with truing brush and proper cleaning with rubbing alcohol maybe necessary., Holder Holders are too far away. Springs need to be adjusted to proper and even pressure. Brush - Front Collector Ghost marking and the brush is not making proper connection with the ring. .75 x 1.75 x 2.5 1. Change polarity of collector rings at the control panel. 2. Move all springs to same level on the upper ones and lower ones same level, except a slightly higher pressure. 3. Adjust all holders to the same gap of at least 1/8 inch from Ring. 4. Install Truing brush in one holder for a short period of time. Must be watched closely! This will acctually cut the ring down quickly. Holders may need to be moved after.
Saluda Dam Unit 2 Westinghouse 600 13200 26.25 257 2 6   Truing with truing brush and proper cleaning with rubbing alcohol maybe necessary., Holder Holders are too far away. Springs need to be adjusted to proper and even pressure.   Ghost marking and the brush is not making proper connection with the ring. .75 x 1.75 x 2.5
Saluda Dam Unit 3 Westinghouse 600 ?? 26.25 257 2 6 Collector Truing with truing brush and proper cleaning with rubbing alcohol maybe necessary., Holder Holders are too far away. Springs need to be adjusted to proper and even pressure.   Ghost marking and the brush is not making proper connection with the ring. .75 x 1.75 x 2.5
Saluda Dam Unit 4 Westinghouse 600 13200 26.25 257 2 6 Collector Truing with truing brush and proper cleaning with rubbing alcohol maybe necessary., Holder Holders are too far away. Springs need to be adjusted to proper and even pressure.   Ghost marking and the brush is not making proper connection with the ring. .75 x 1.75 x 2.5
