Yokohama Tire - Salem VA ACCOUNT 701293
DIV 250 Z-CAL
Pictures
Location Manufacturer Serial No. H.P. or K.W. Volts Amperes RPM Brush Spec Old / New Brushes per Set Spring Clip Comments Brush Commutator

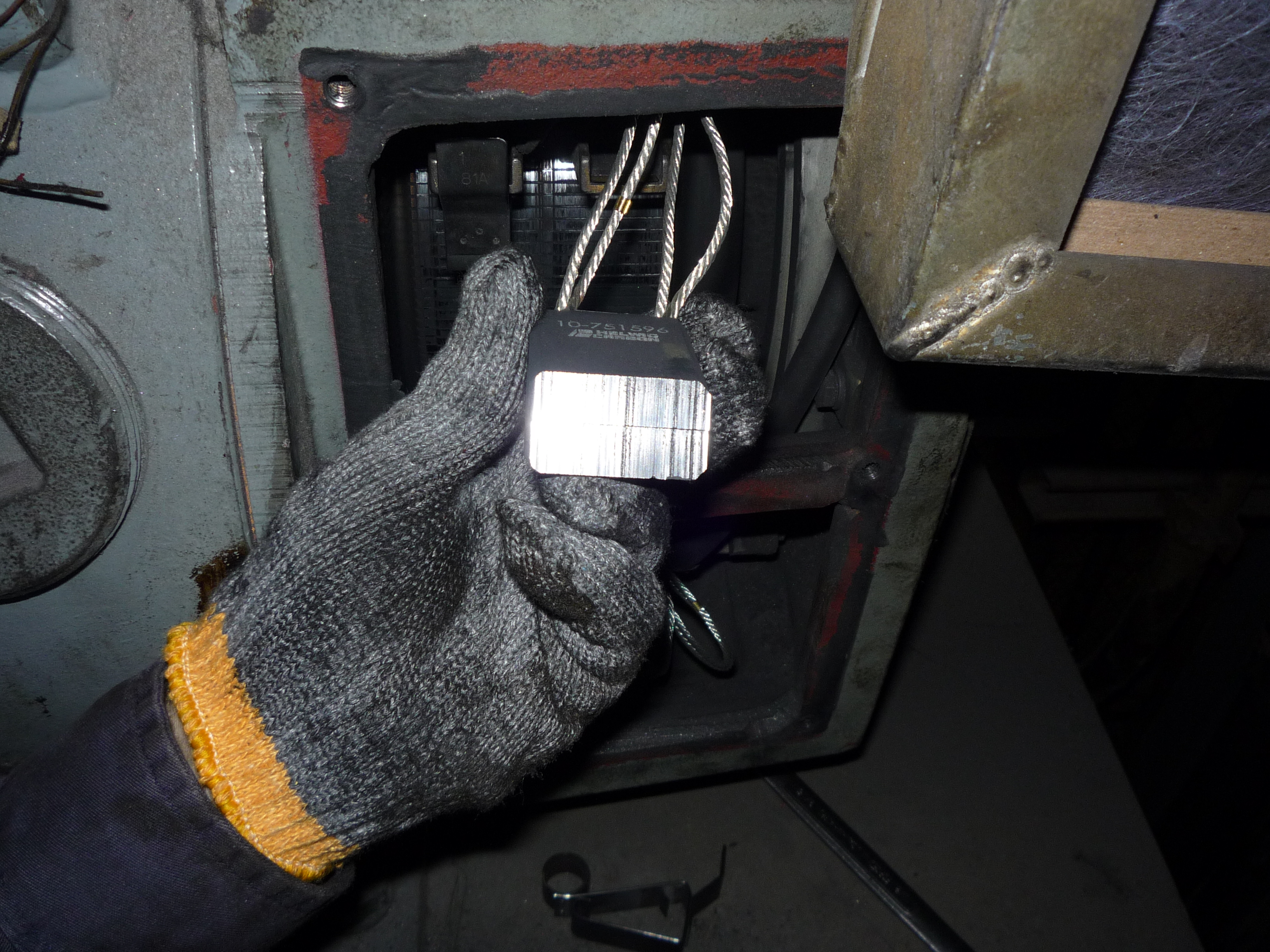

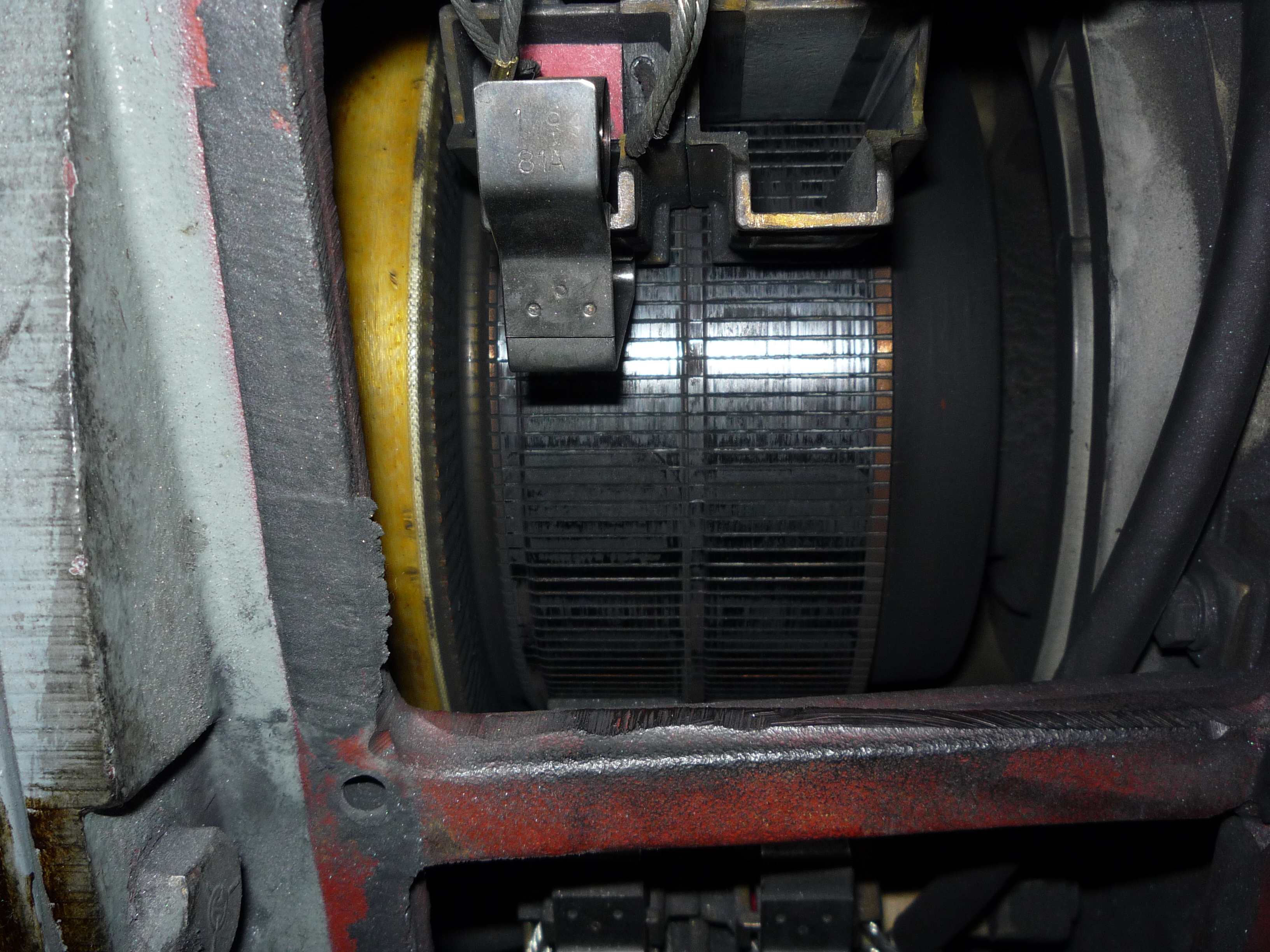

Drive Roll #1 GE PJ-1-21 PJ 125 500 7.5/3.3 1150/2000 10-8751596 4 81A replace smearing, bonded brush P1000147.JPG P1000148.JPG

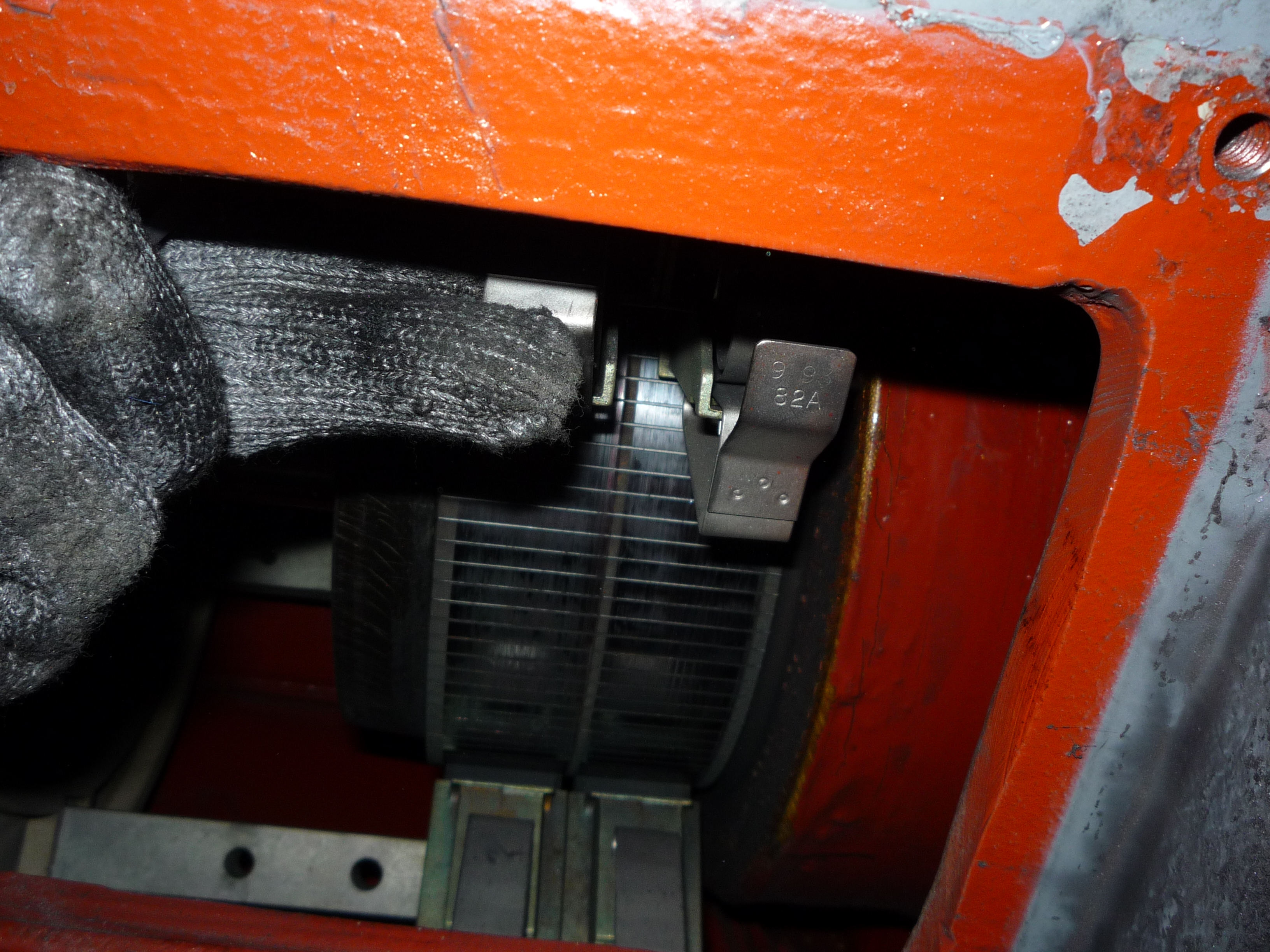

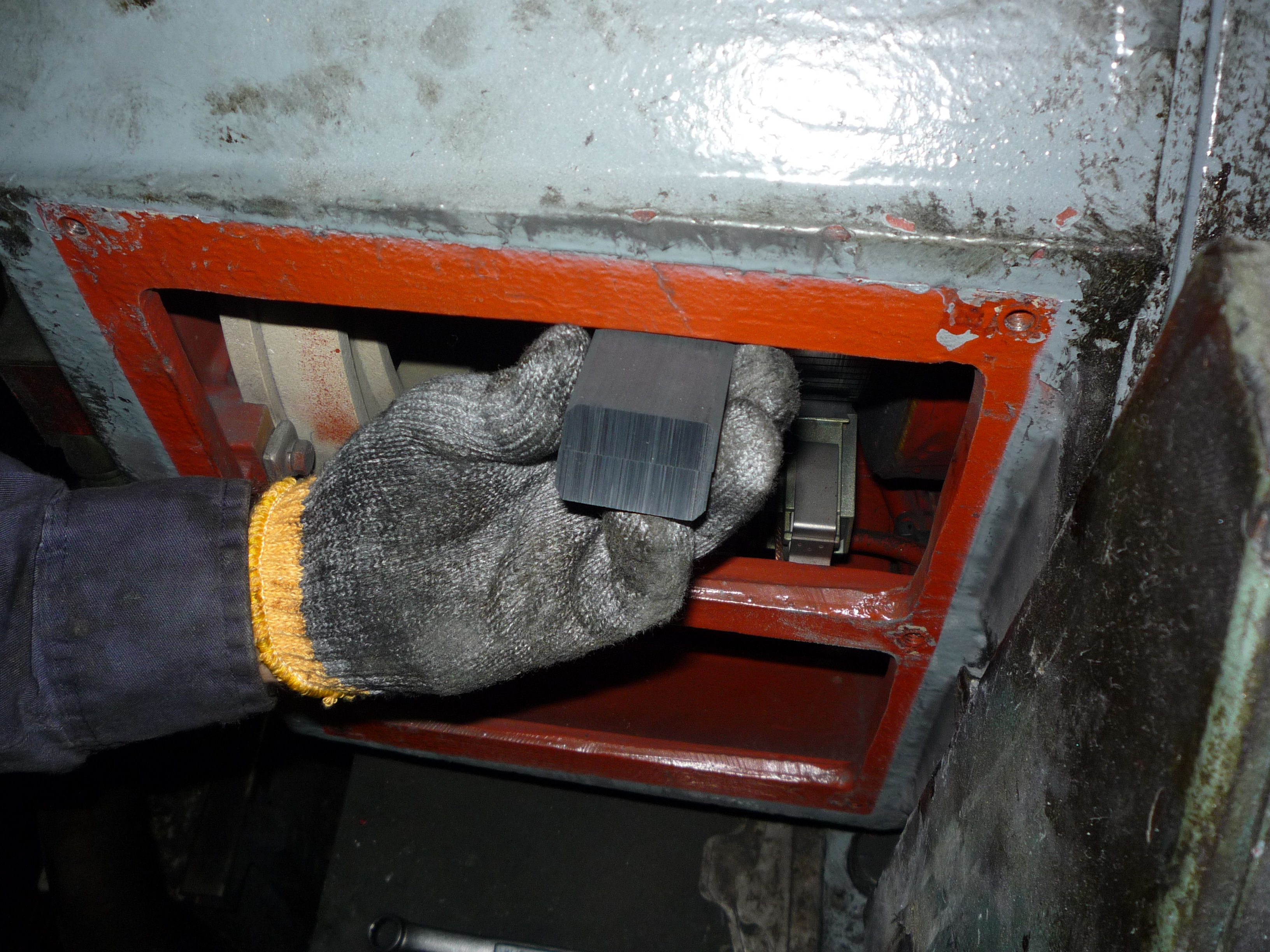

Drive Roll #2 GE YH-1-145 YH 200 500 317 1150/1800 T563 - National 8 82A replace smearing, bonded brush P1000149.JPG P1000150.JPG

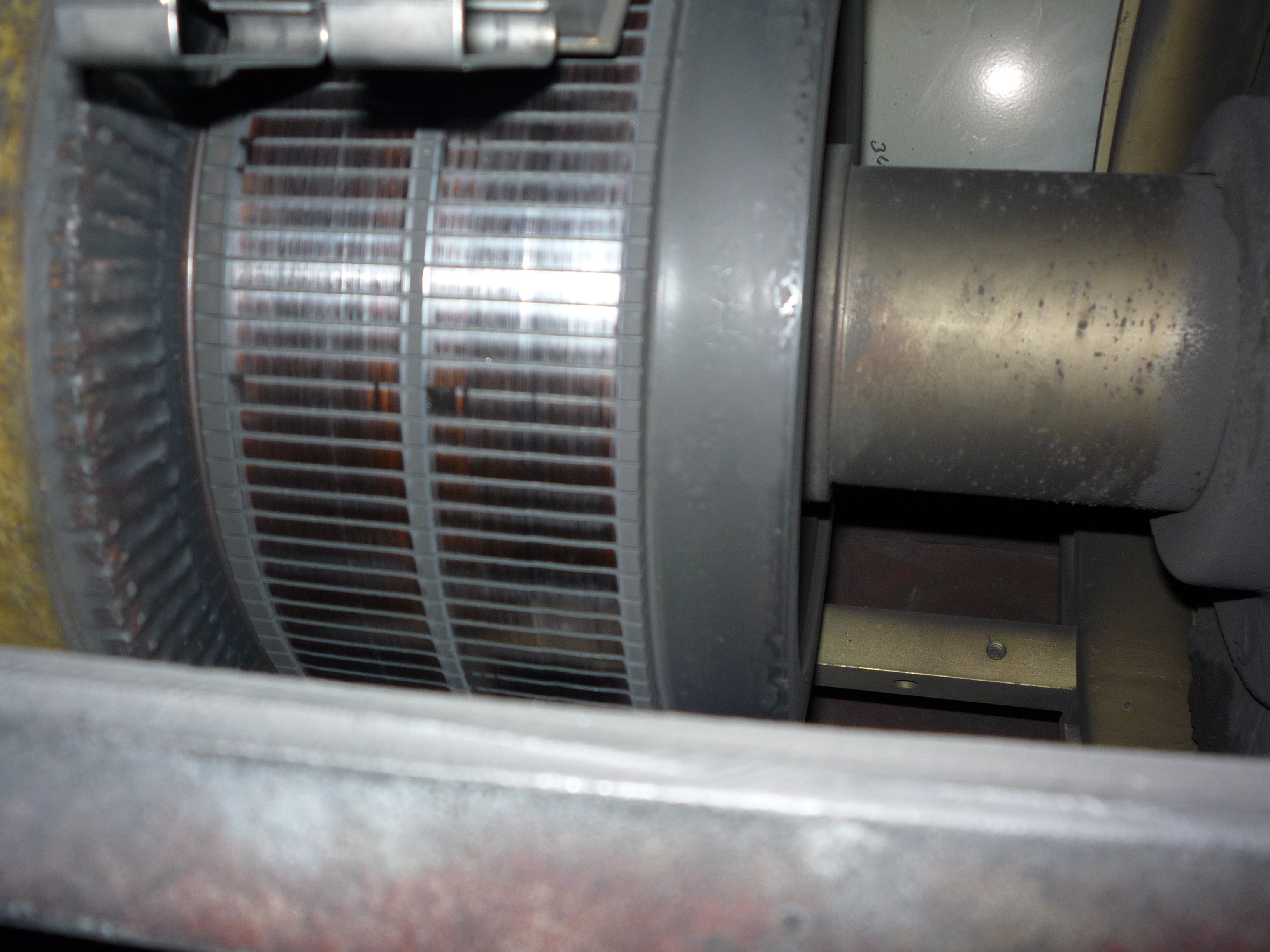

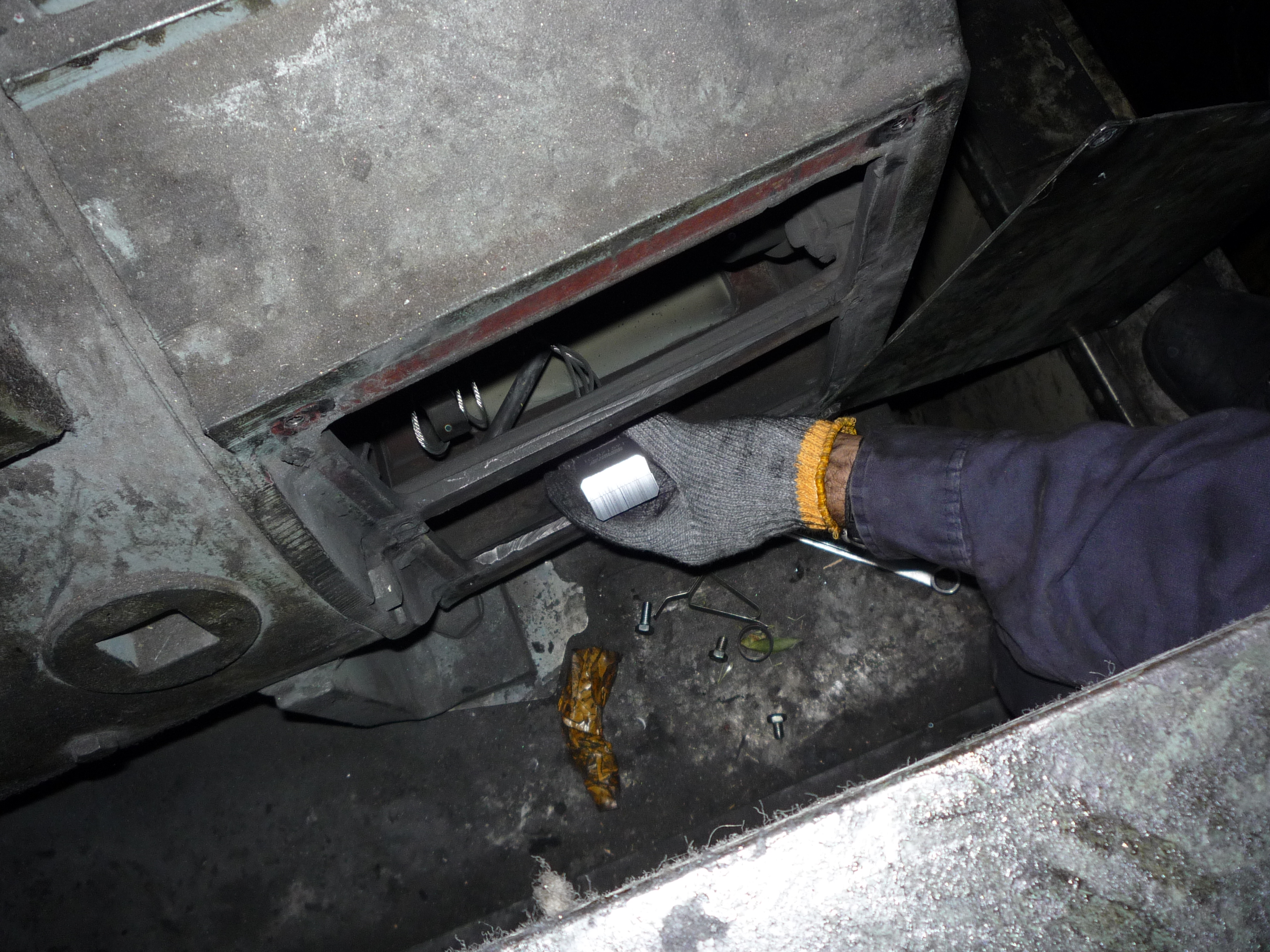

Drive Roll #3 GE   200 500 317 1150/1800 10-871591 8 82A replace smearing, bonded brush P1000151.JPG P1000152.JPG

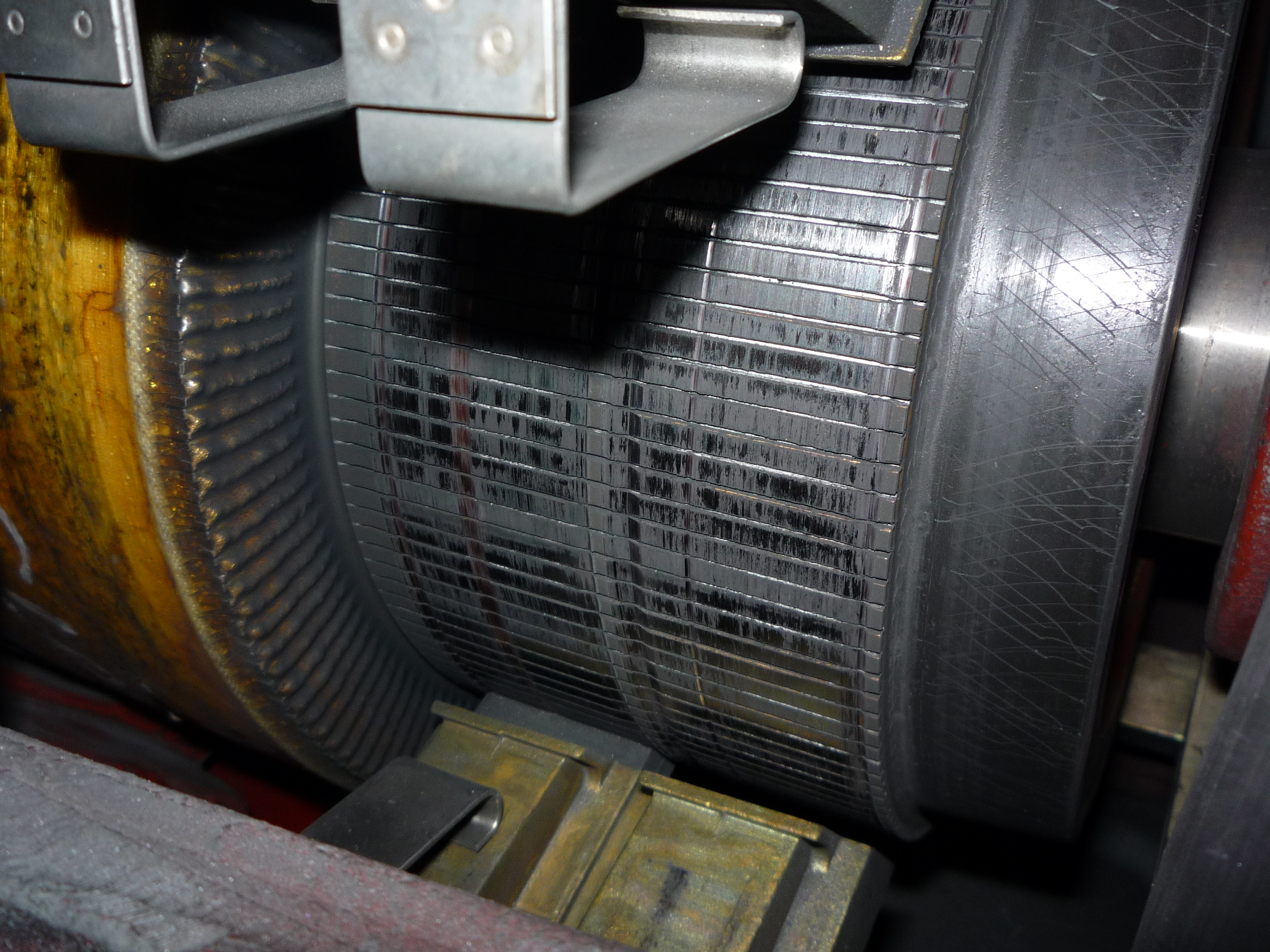

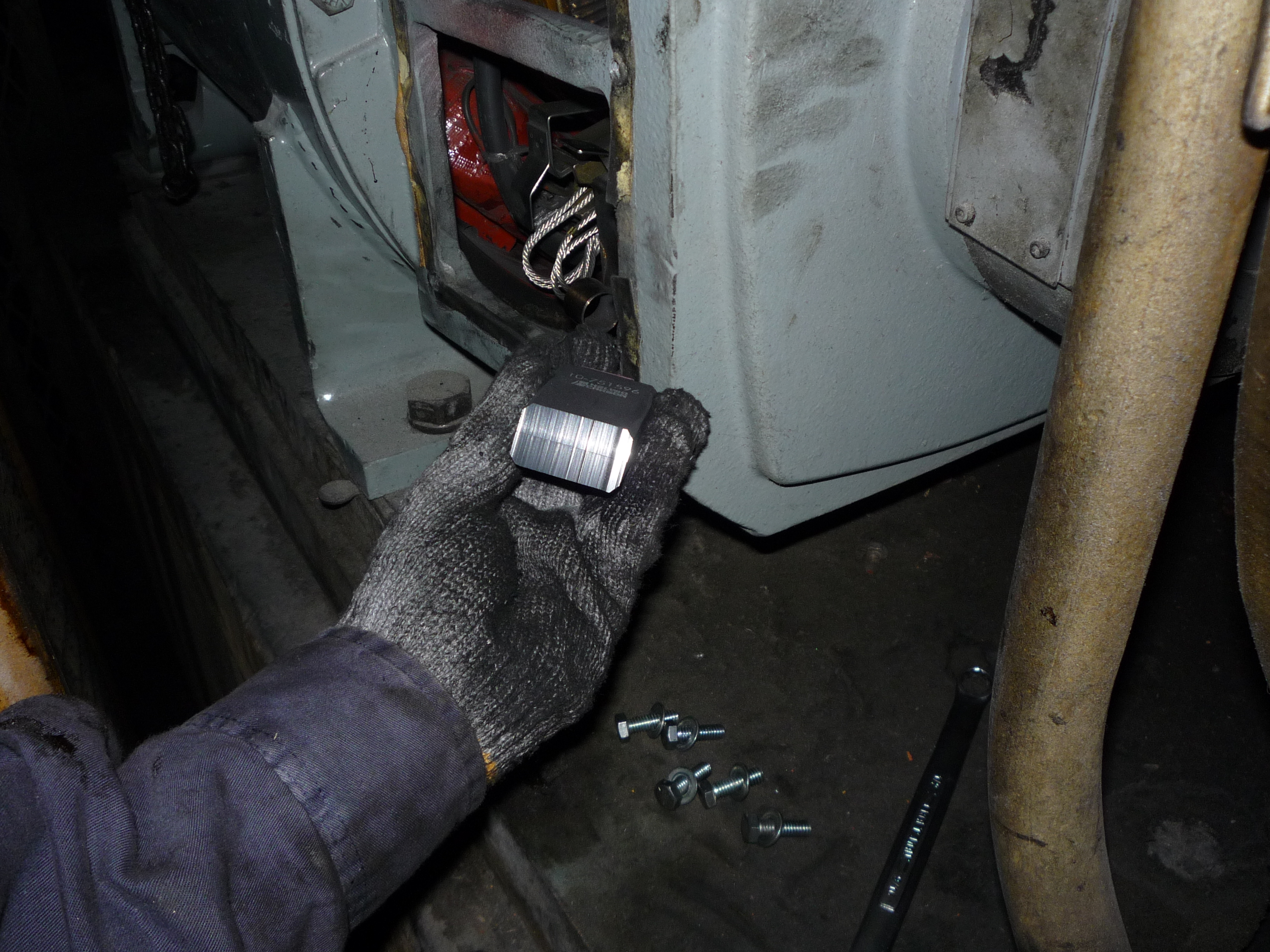

Drive Roll #4 AB   125 500 201 1150/2000 10-751596 8 82A replace smearing, bonded brush P1000153.JPG P1000154.JPG

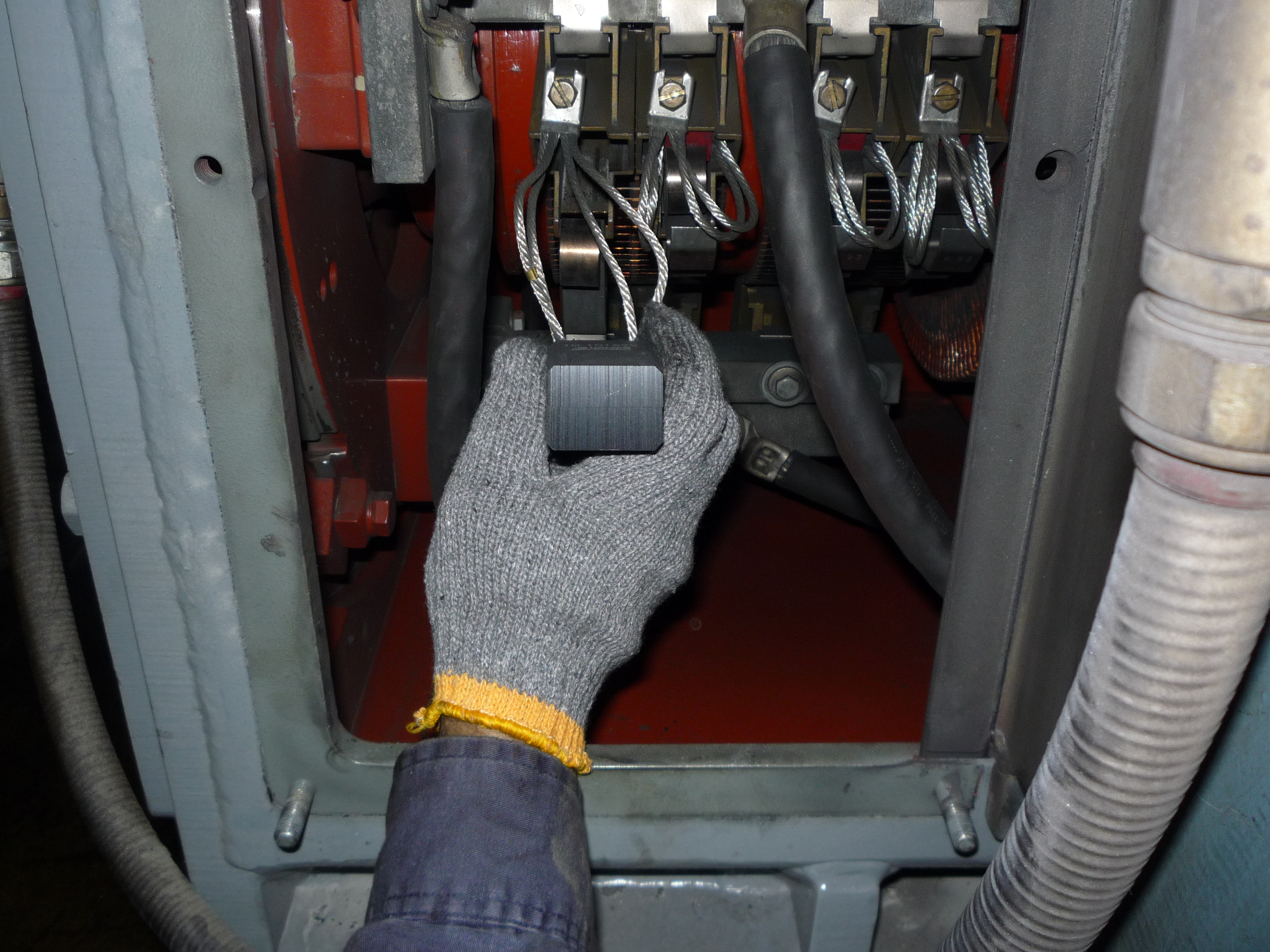

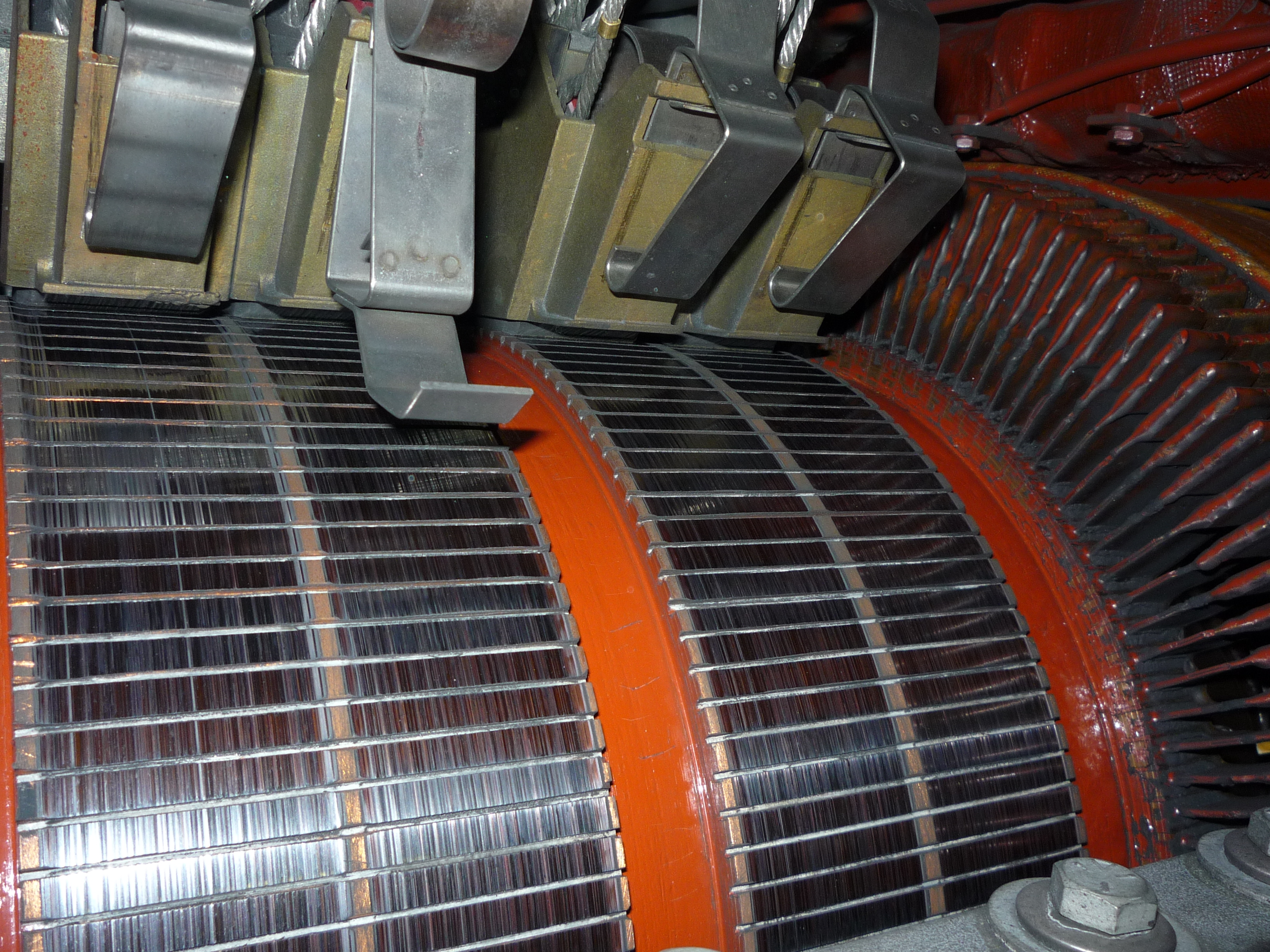

Twin Mill Drive GE VH-2-6 VH 500 500 795 1150/1500 10-101592 16 86A  Contamination oil P1000155.JPG P1000156.JPG

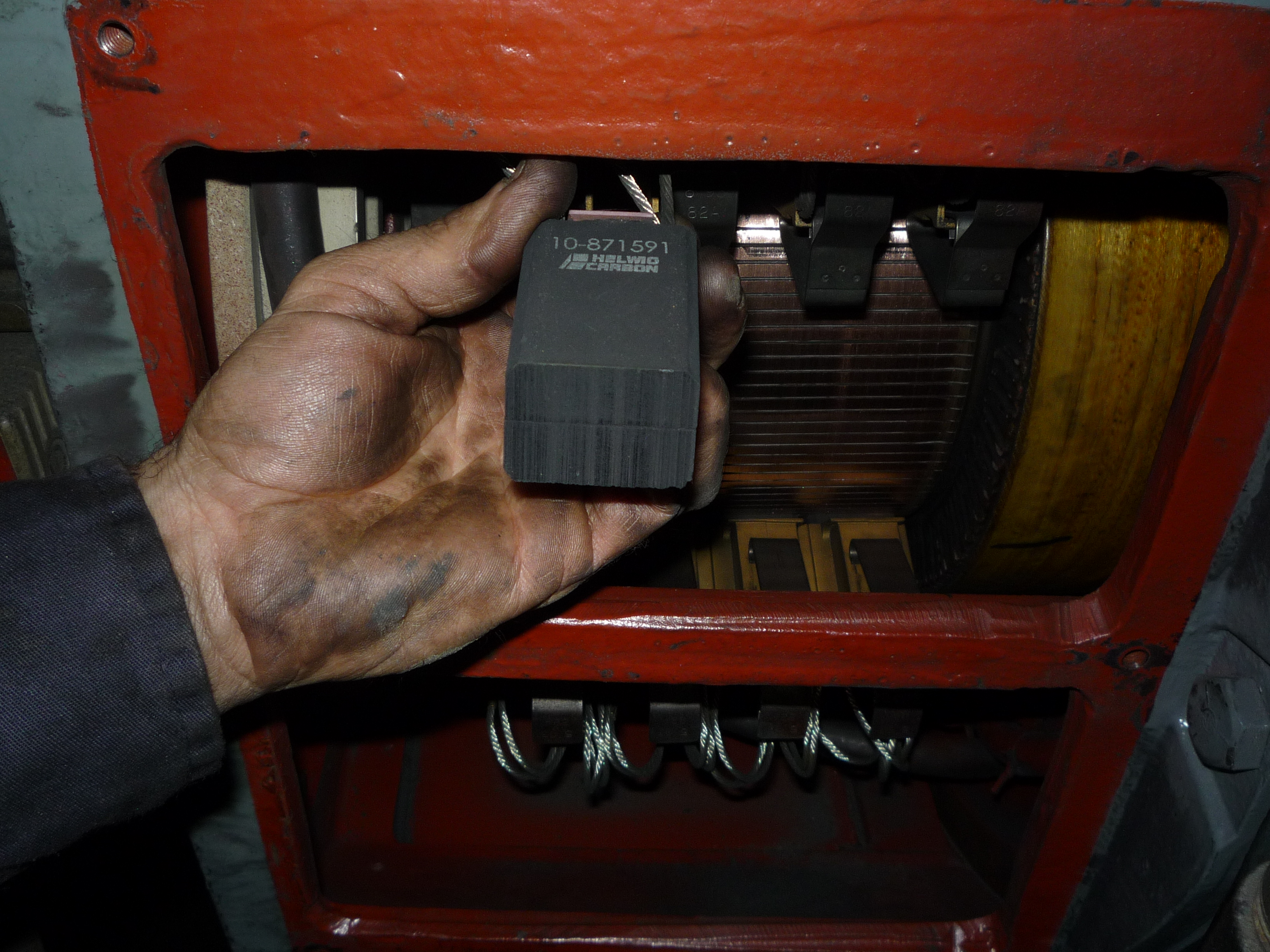

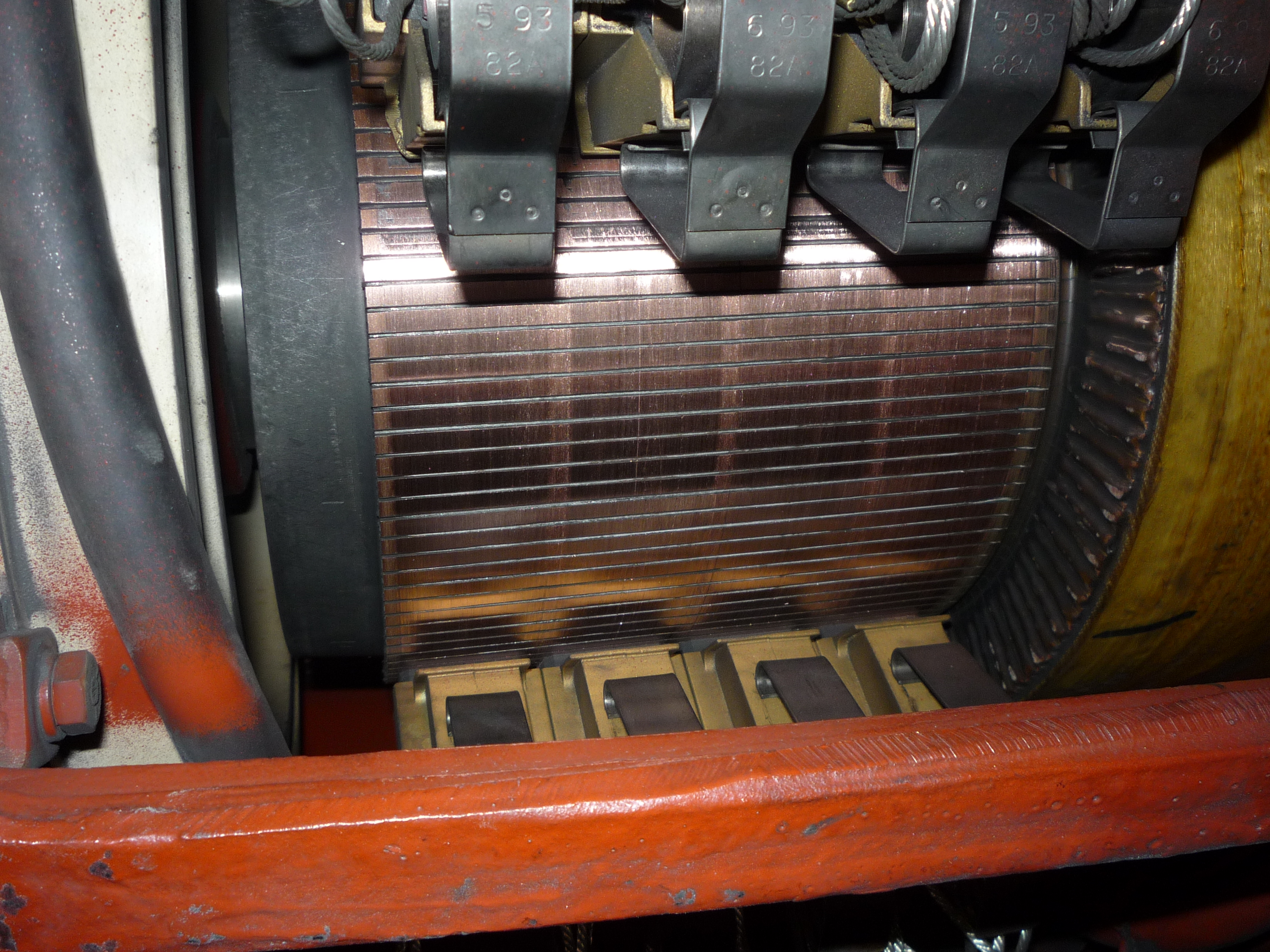

Single Mill Drive GE VH-1-70 VH 300 500 473 1150/1600 10-871591 16 86A  Different motor than on work sheet P1000157.JPG P1000158.JPG

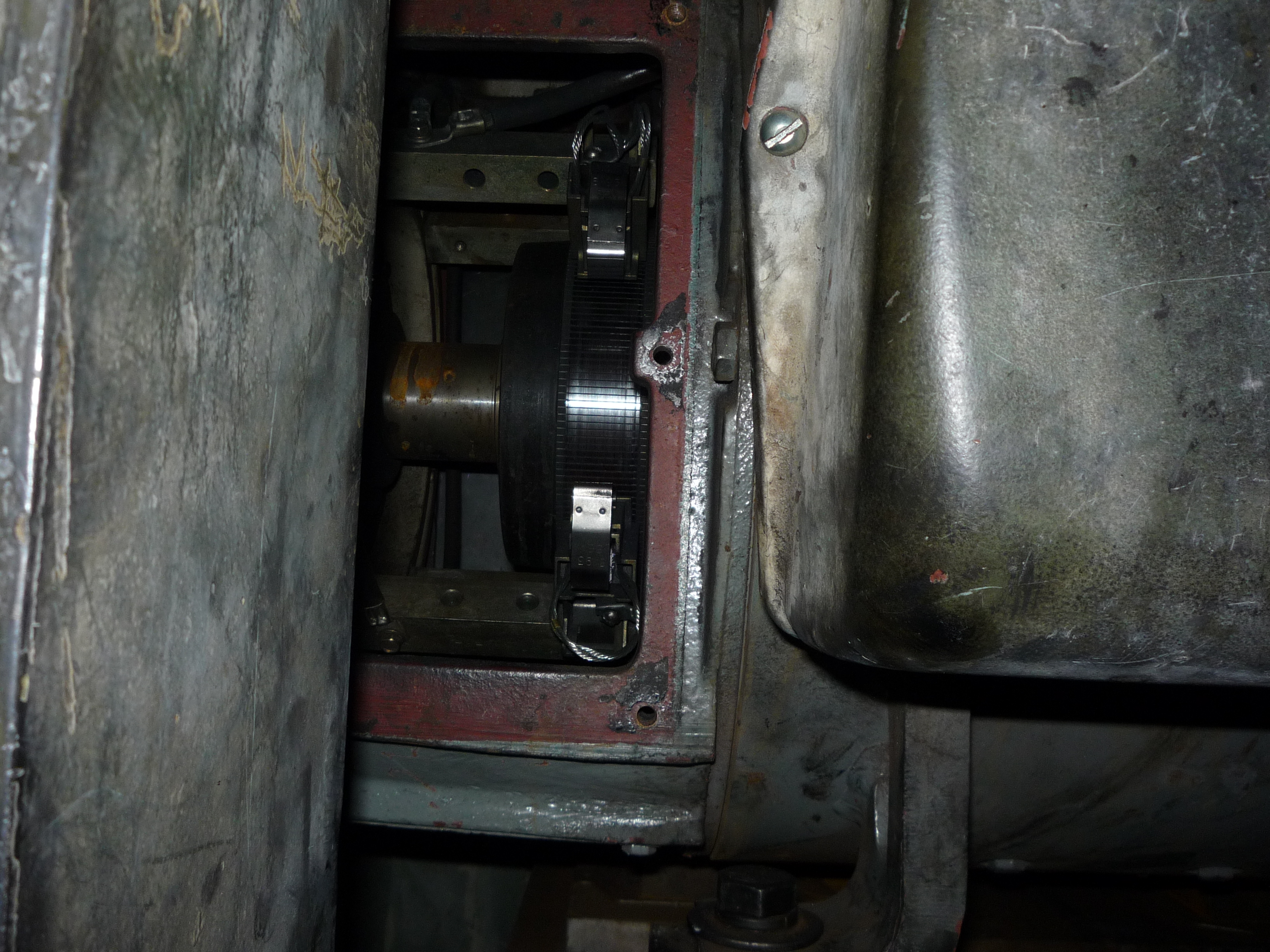

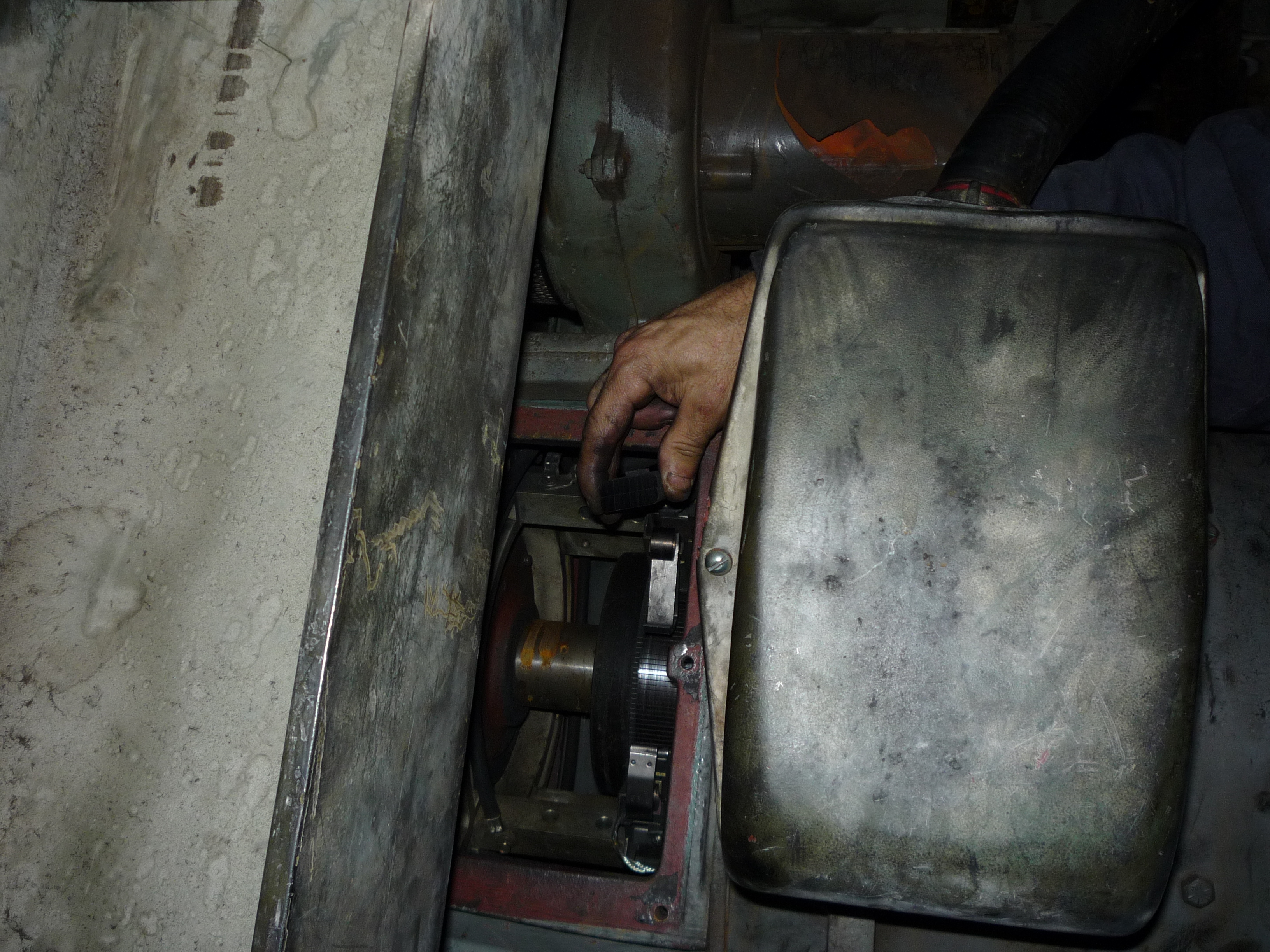

Post Tension Drive GE VH-1-24 VH 75 500 122 1750/2100 10-62129 4 83A Threading, bonded P1000159.JPG P1000160.JPG

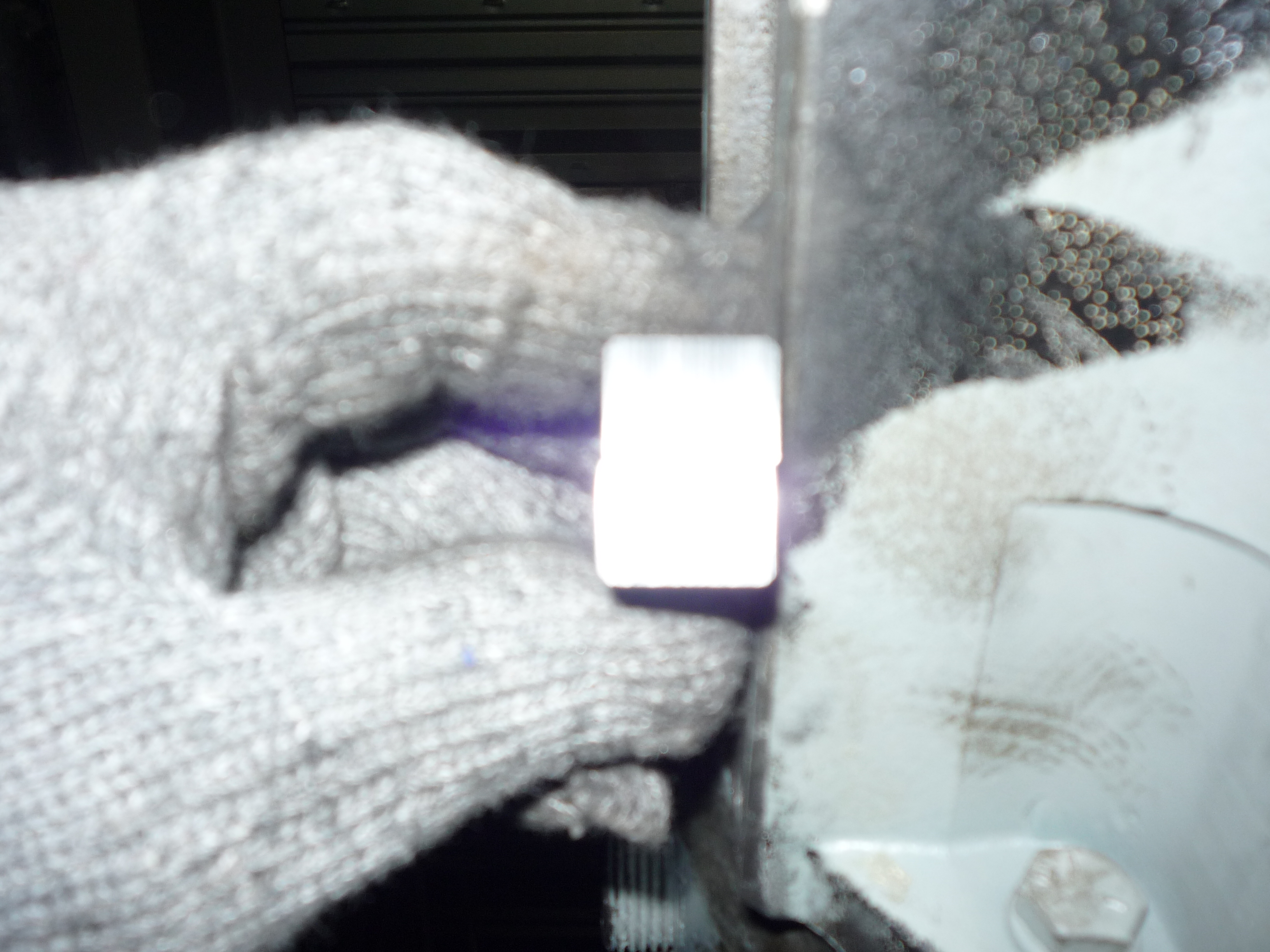

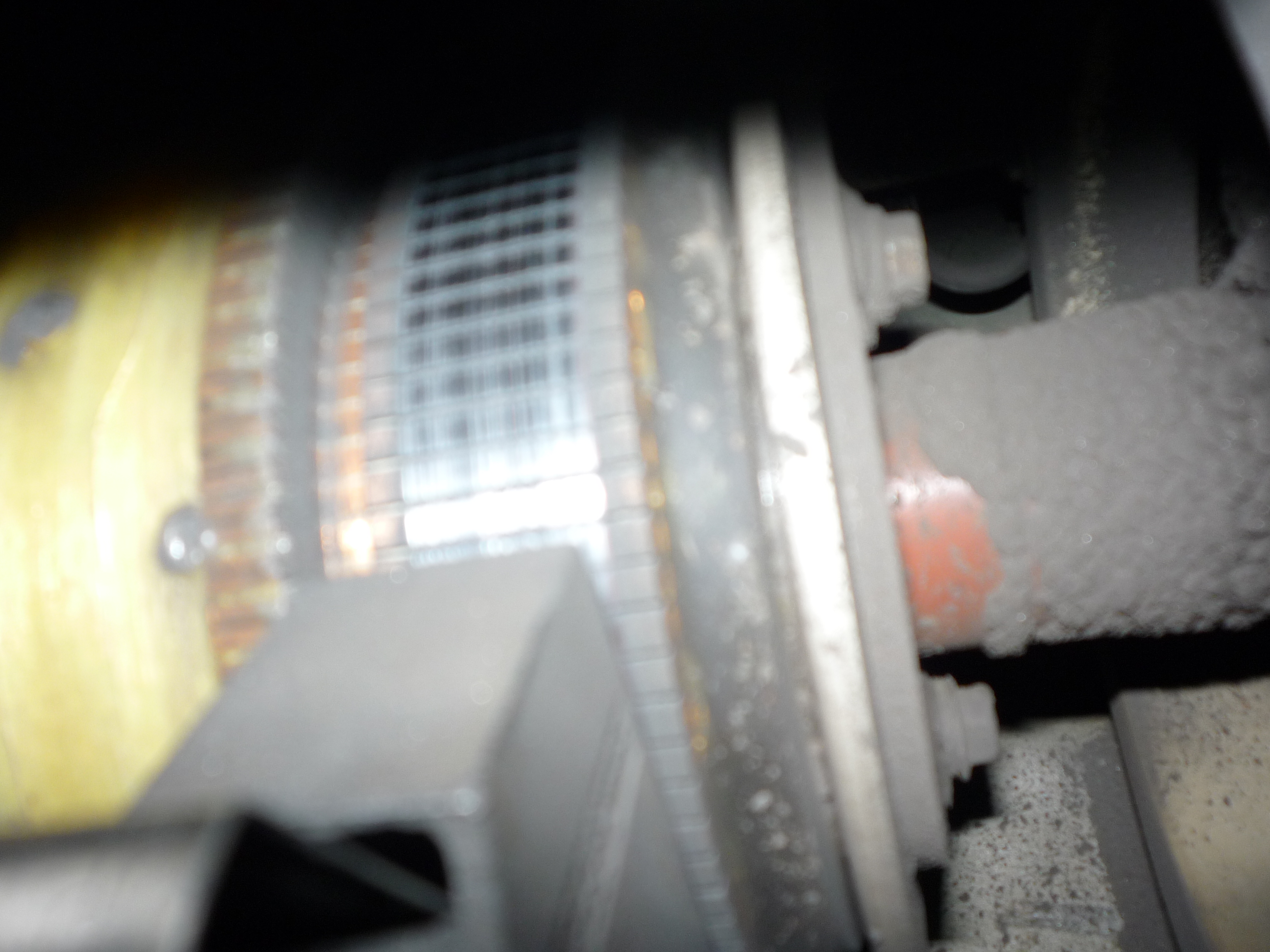

Wind up pull roll blower     7.5 600 13.3 1750/2300 H41 2 86A  Streaking P1000161.JPG P1000162.JPG

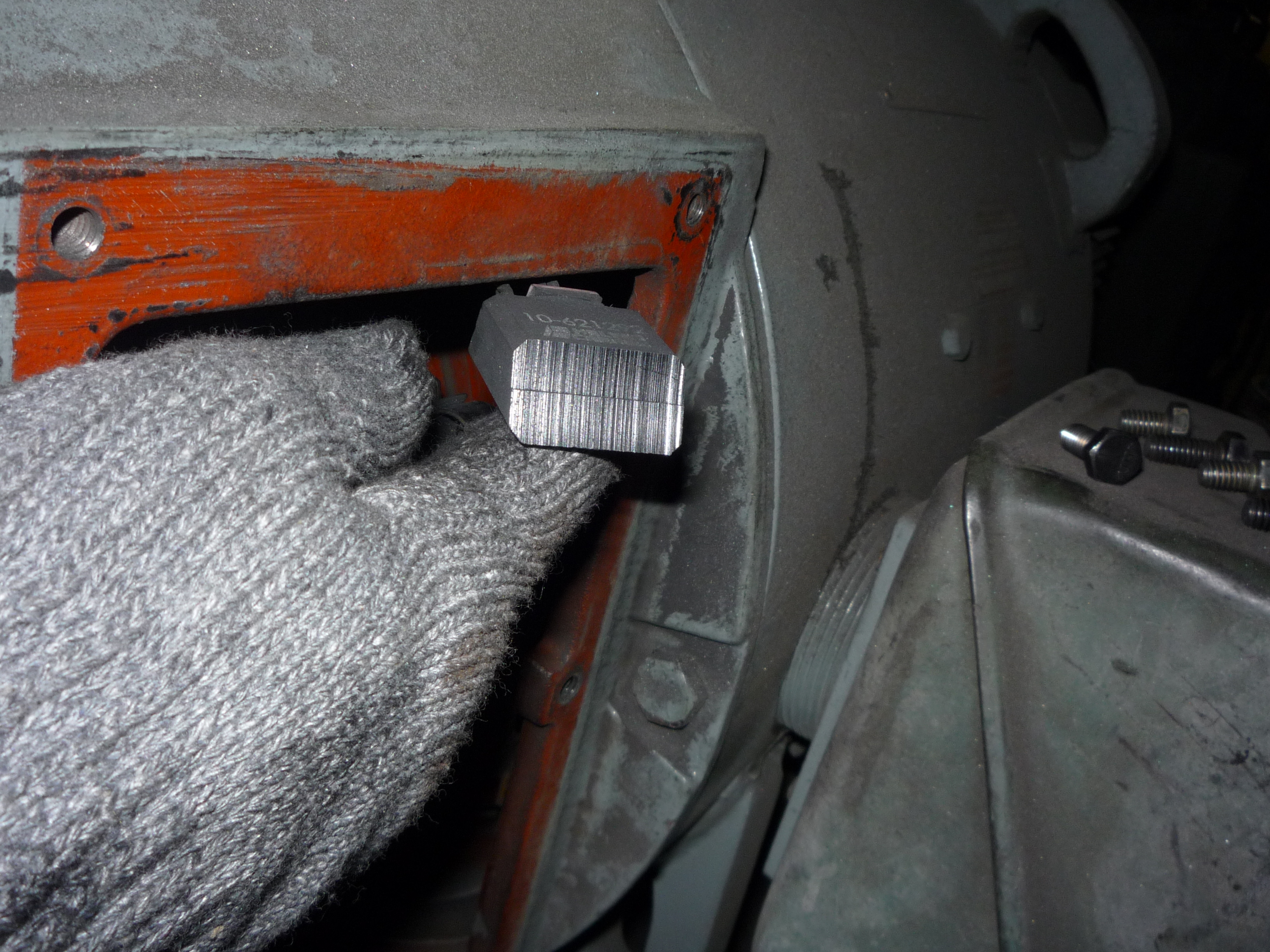

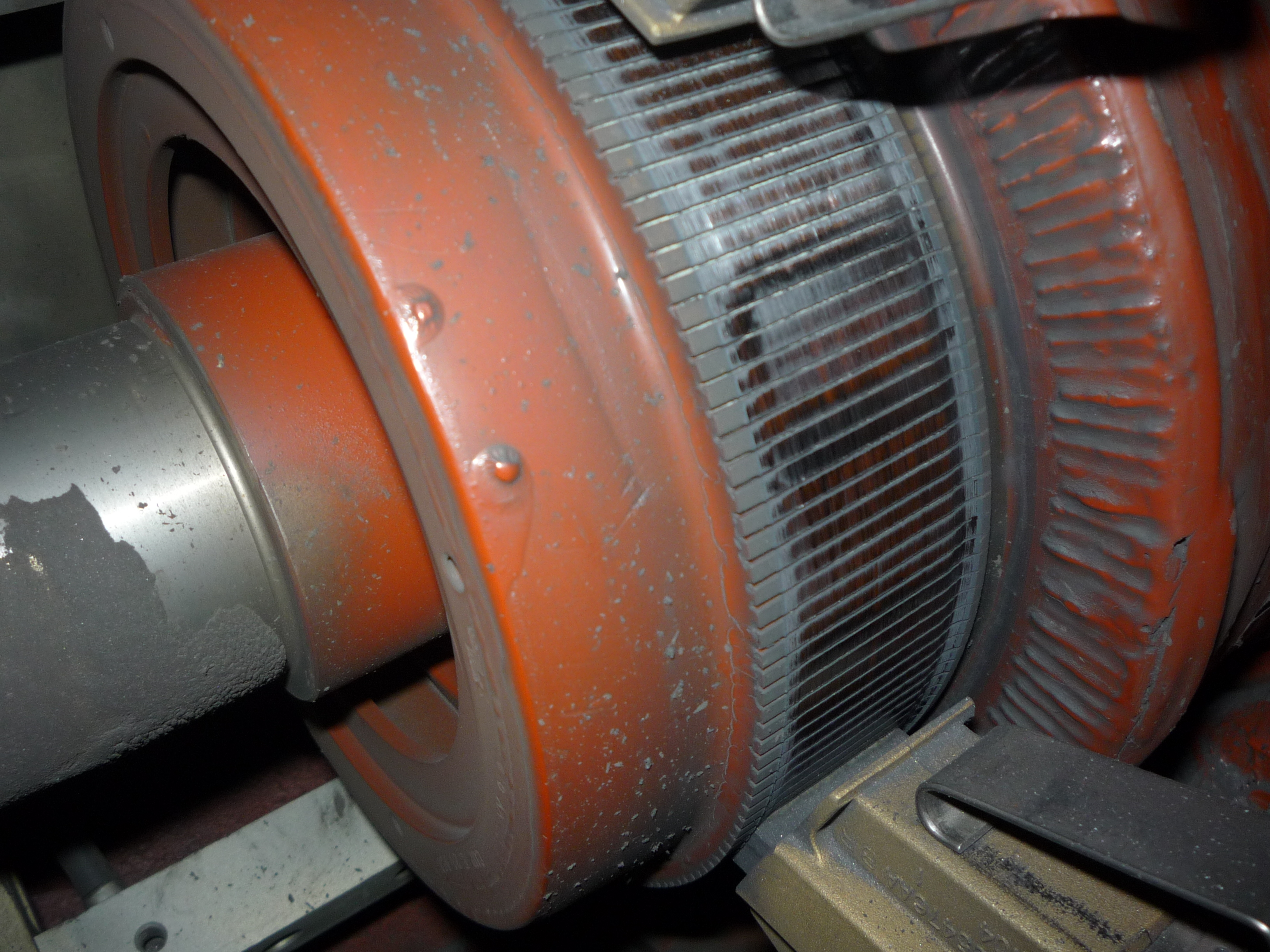

A Windup GE VH-1-233 VH 75 500 122 1750/2100 10-621292 4 83A Streaking, flat spot P1000163.JPG P1000164.JPG

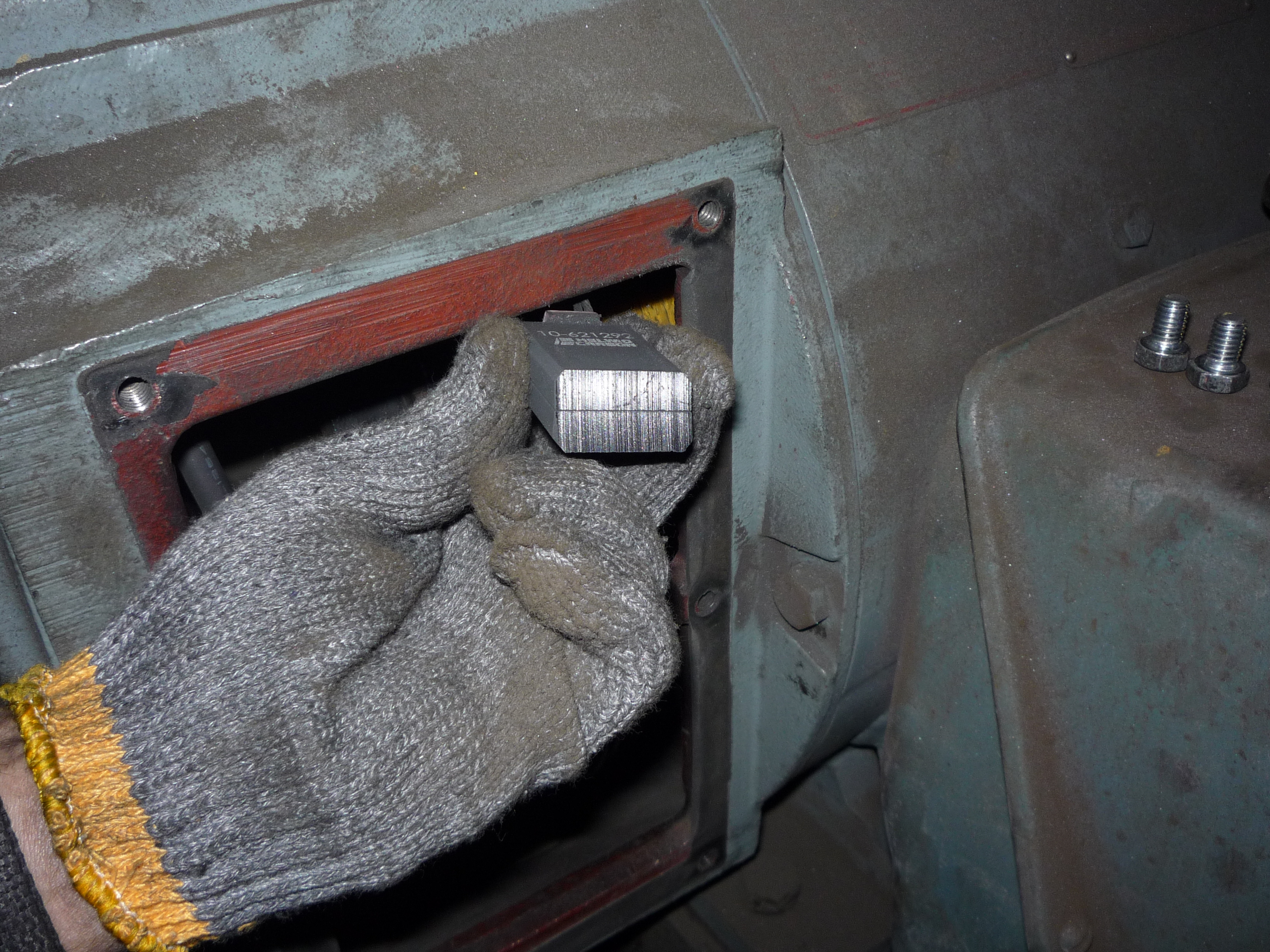

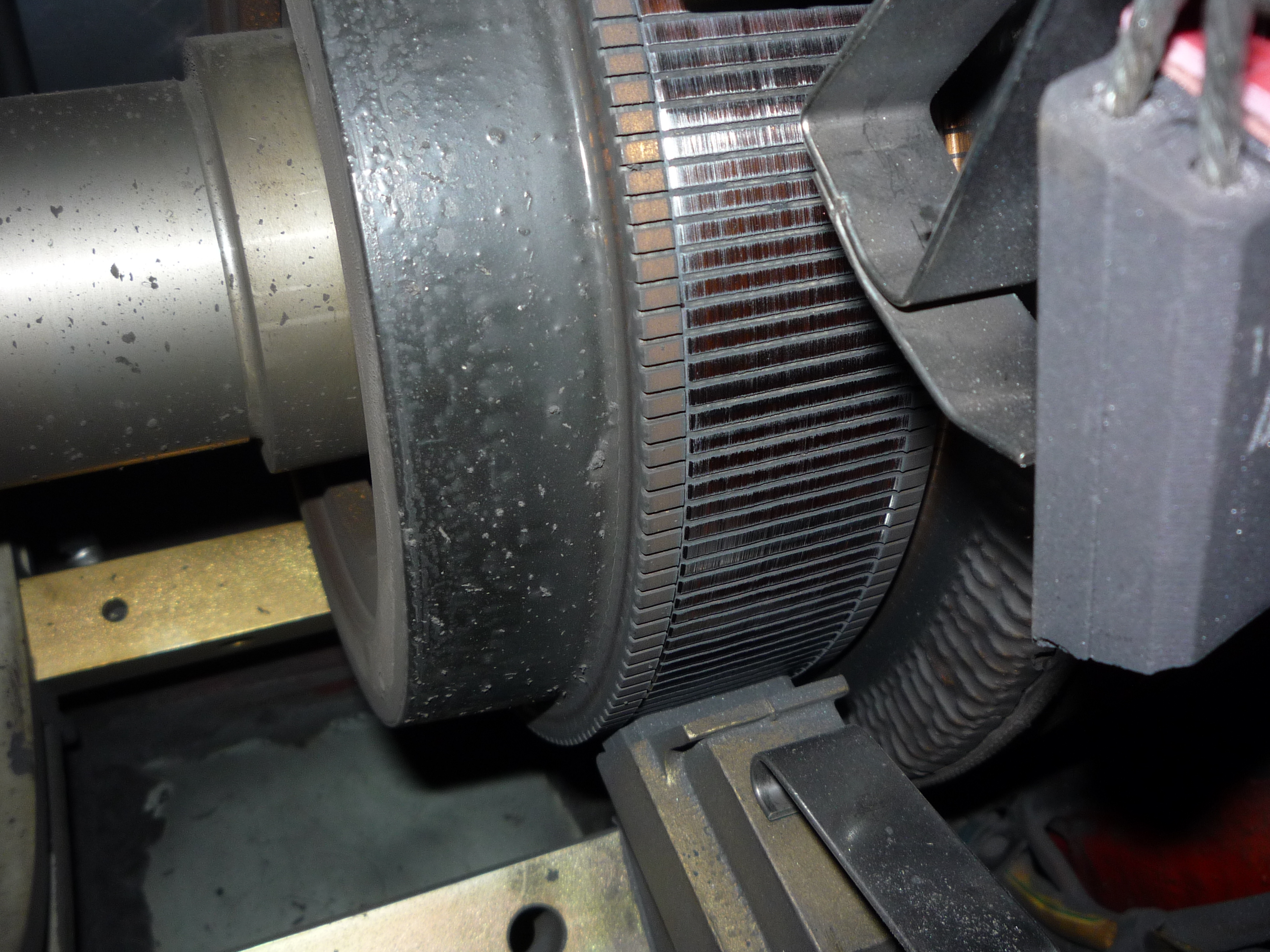

B Windup  GE SP-7-13 SP 75 500 122 1750/2100 10-621292 4 83A Threading P1000165.JPG P1000166.JPG

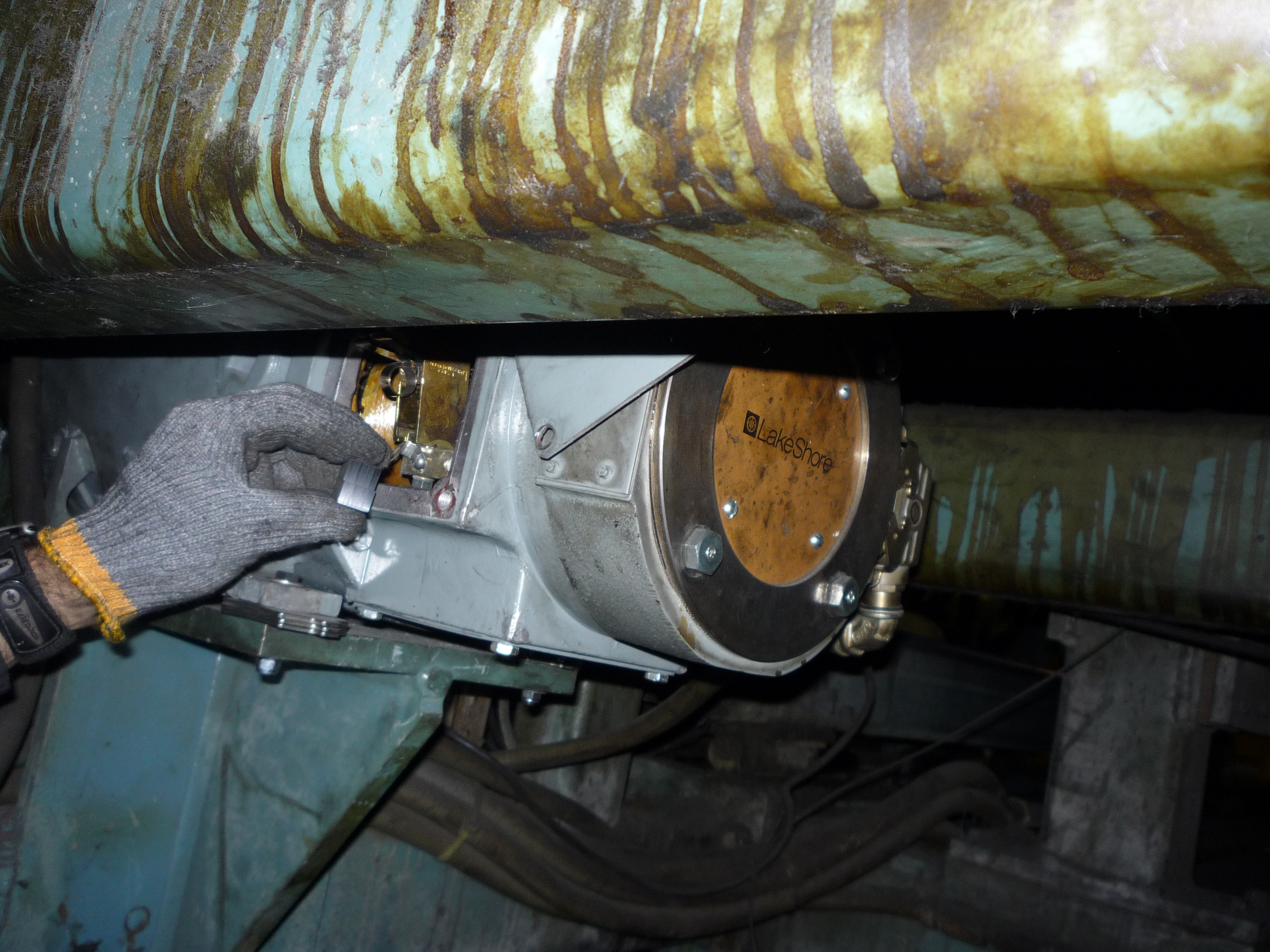

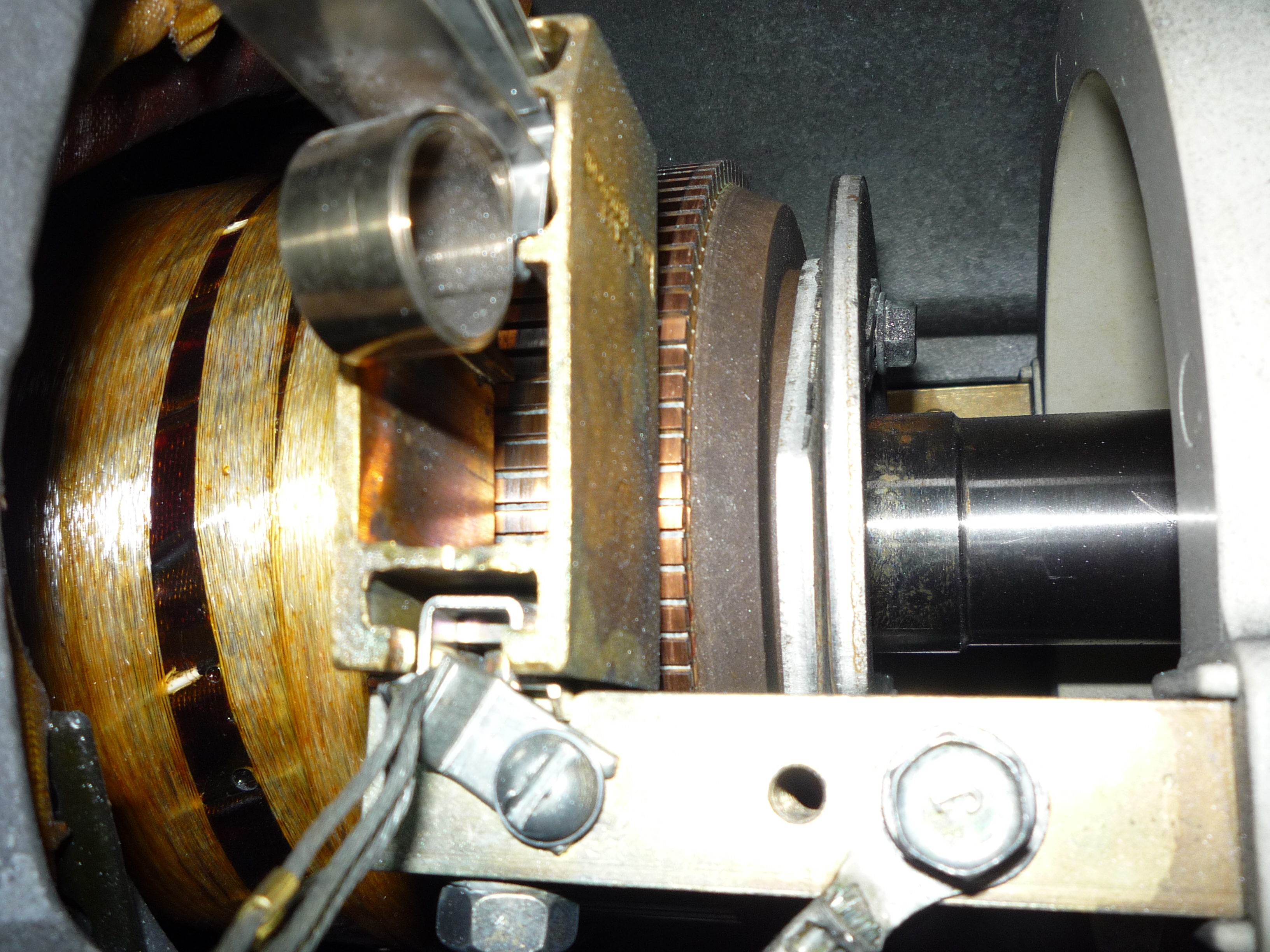

Windup shuttle GE WH-8-4 WH 5 500 8.4 1750/2300 National 2   Hairline threading P1000167.JPG P1000168.JPG

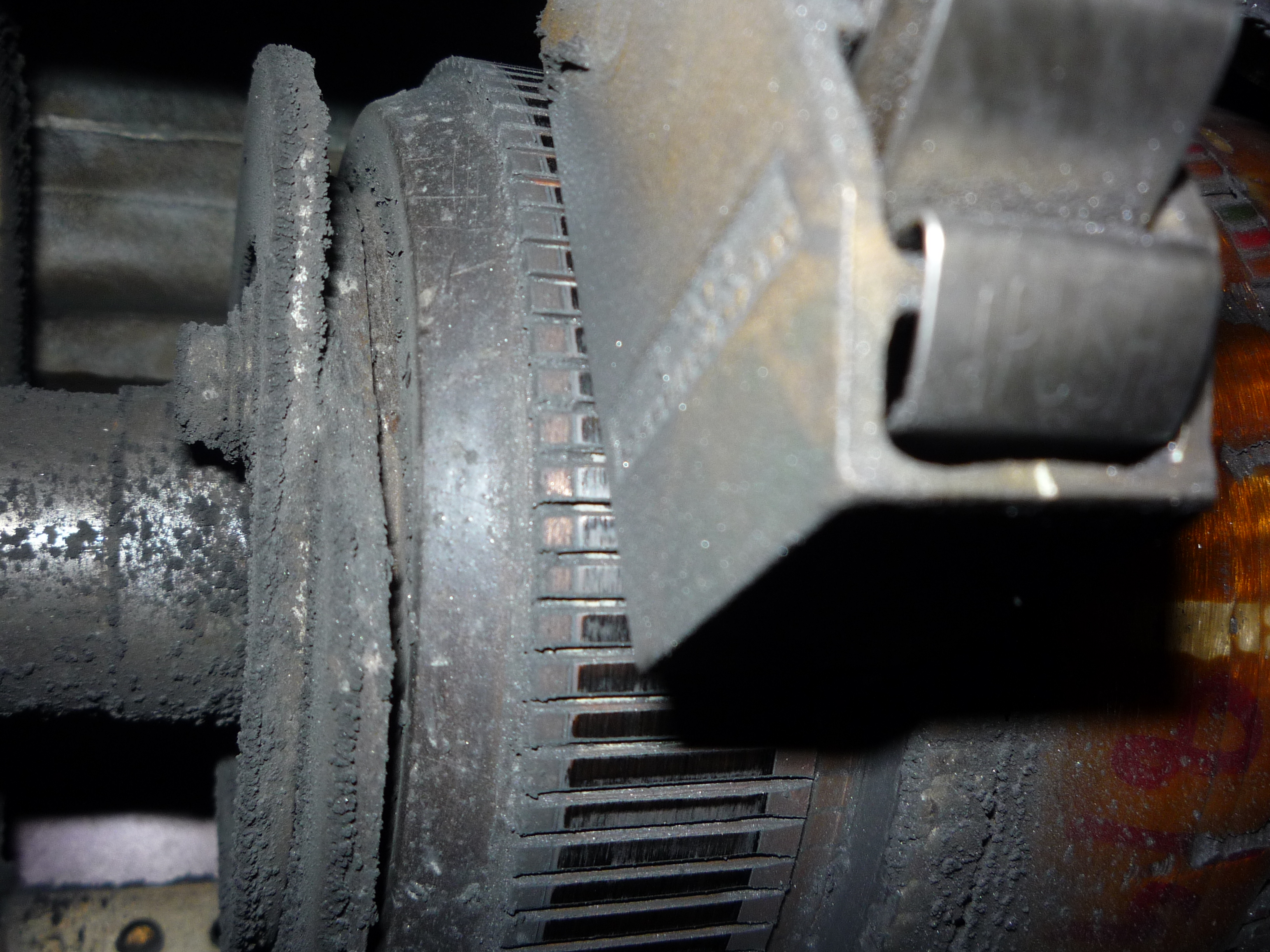

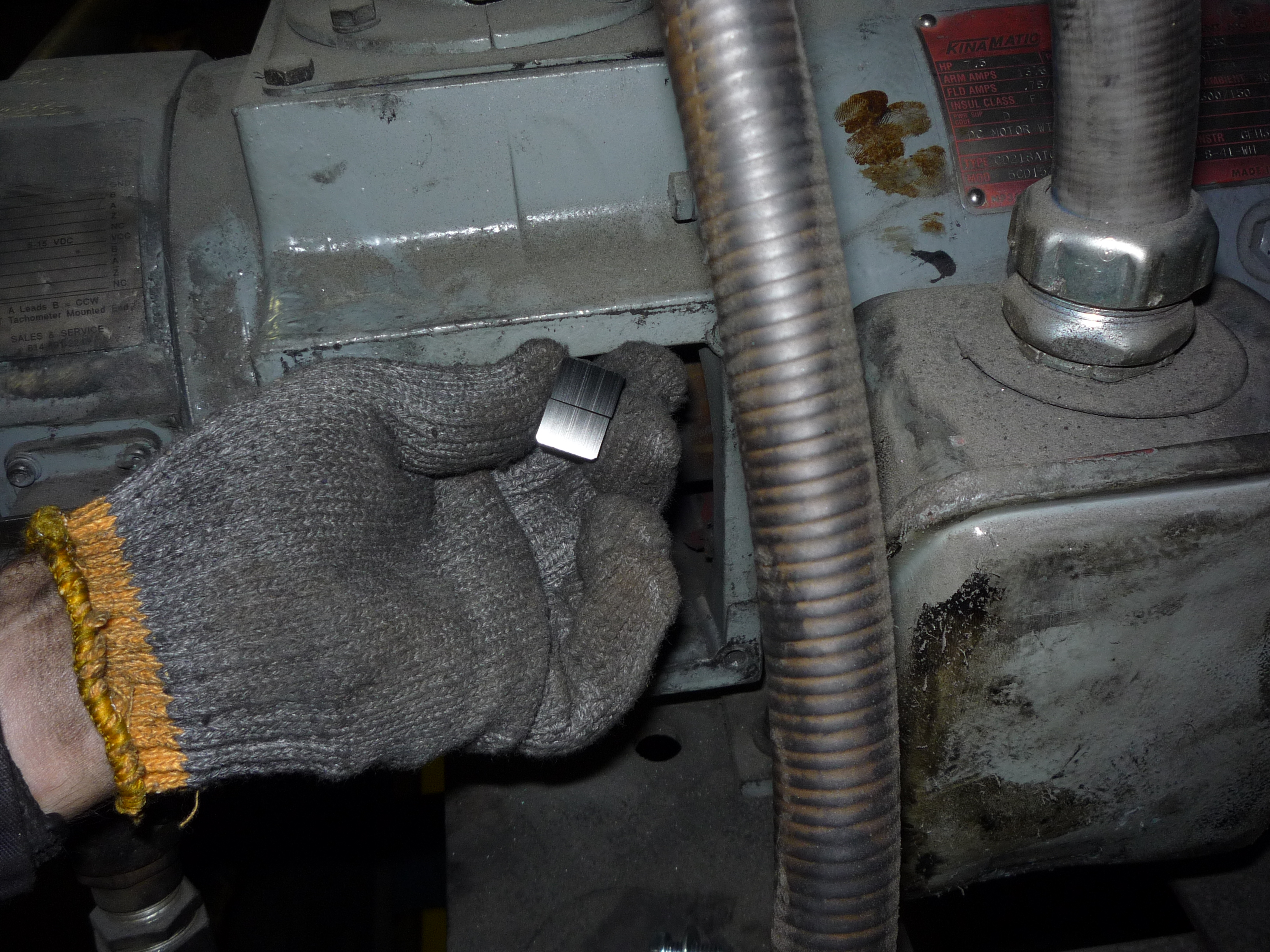

Leff Off Pull Roll GE WH-8-41 WH 7.5 500 13.3 1750/2000 10-876231 2 83A Hairline threading P1000169.JPG P1000170.JPG

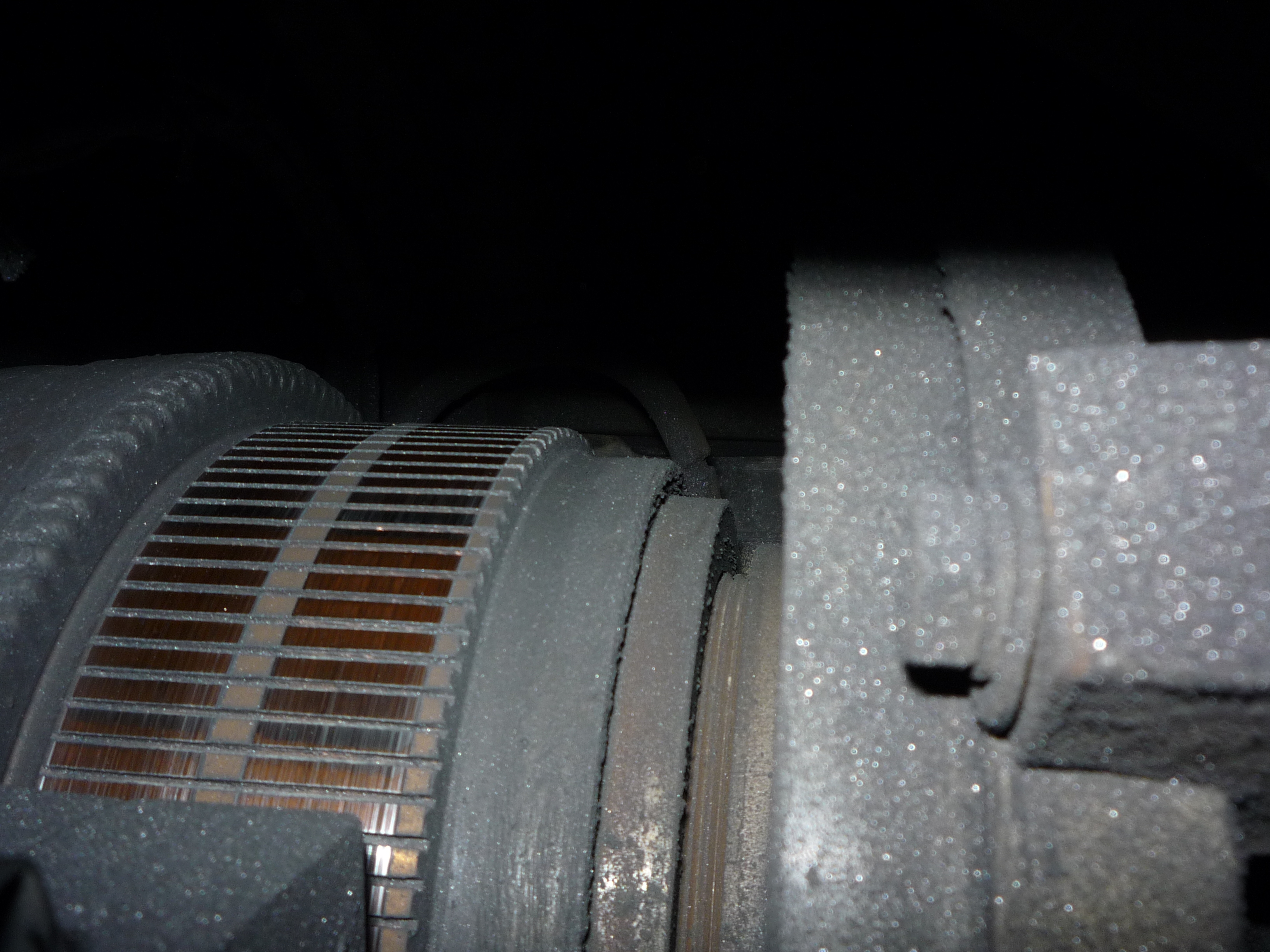

Pretension Blower GE WH-8-272 WH 50 500 85 1750/2100 10-127531 4   Threading P1000172.JPG P1000173.JPG
DIV 300
Location Manufacturer Serial No. H.P. or K.W. Volts Amperes RPM Brush Spec Old / New Brushes per Set Spring Clip Comments Brush Commutator

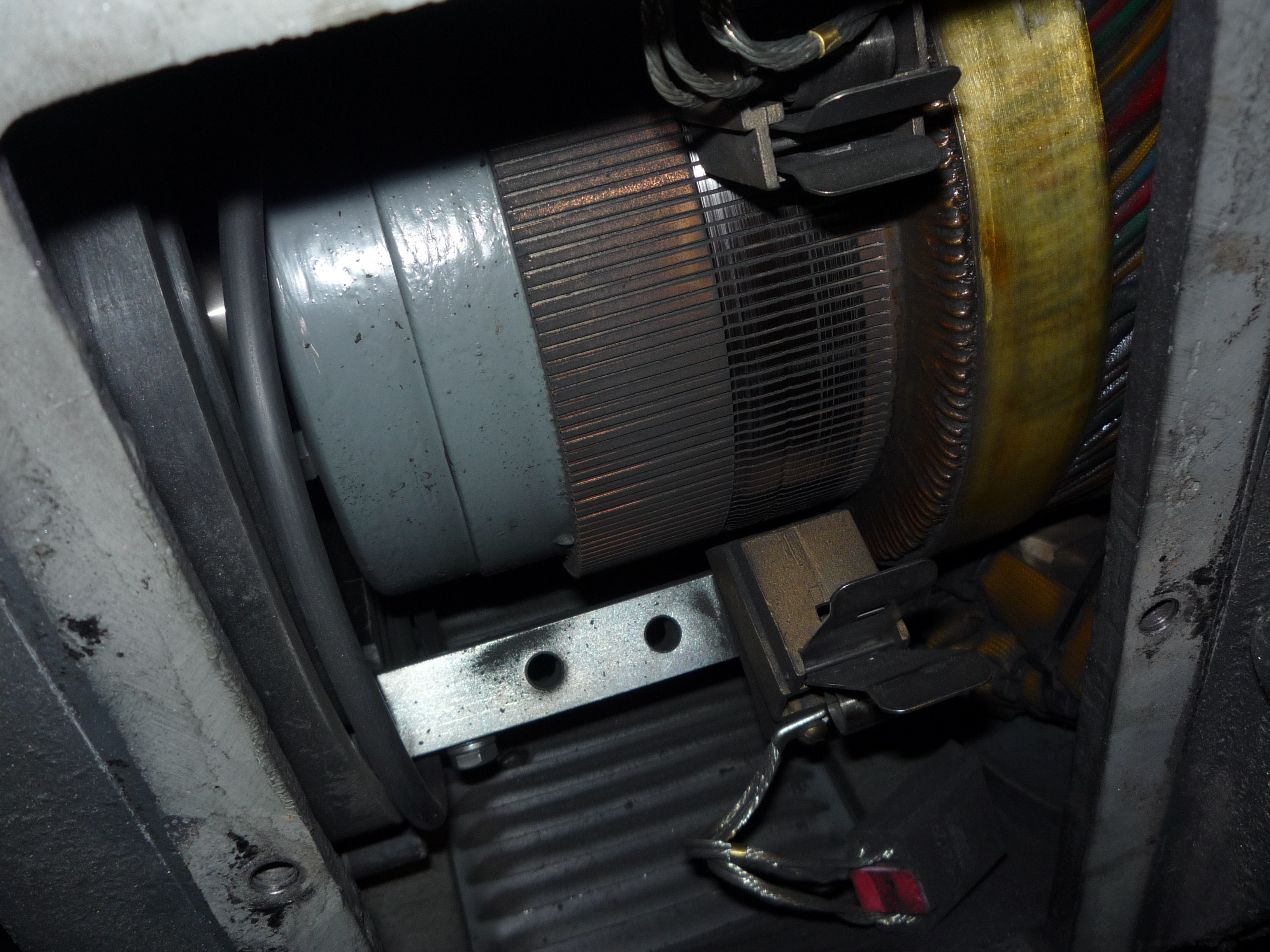

#10 Bead Tipper Extruder Drive Baldor N051011007 75 500 123 1750/2100 10-621292 25-621291 H57  Grade OK 4 ID Again Hairling, starting to groove P1000140.JPG P1000139.JPG

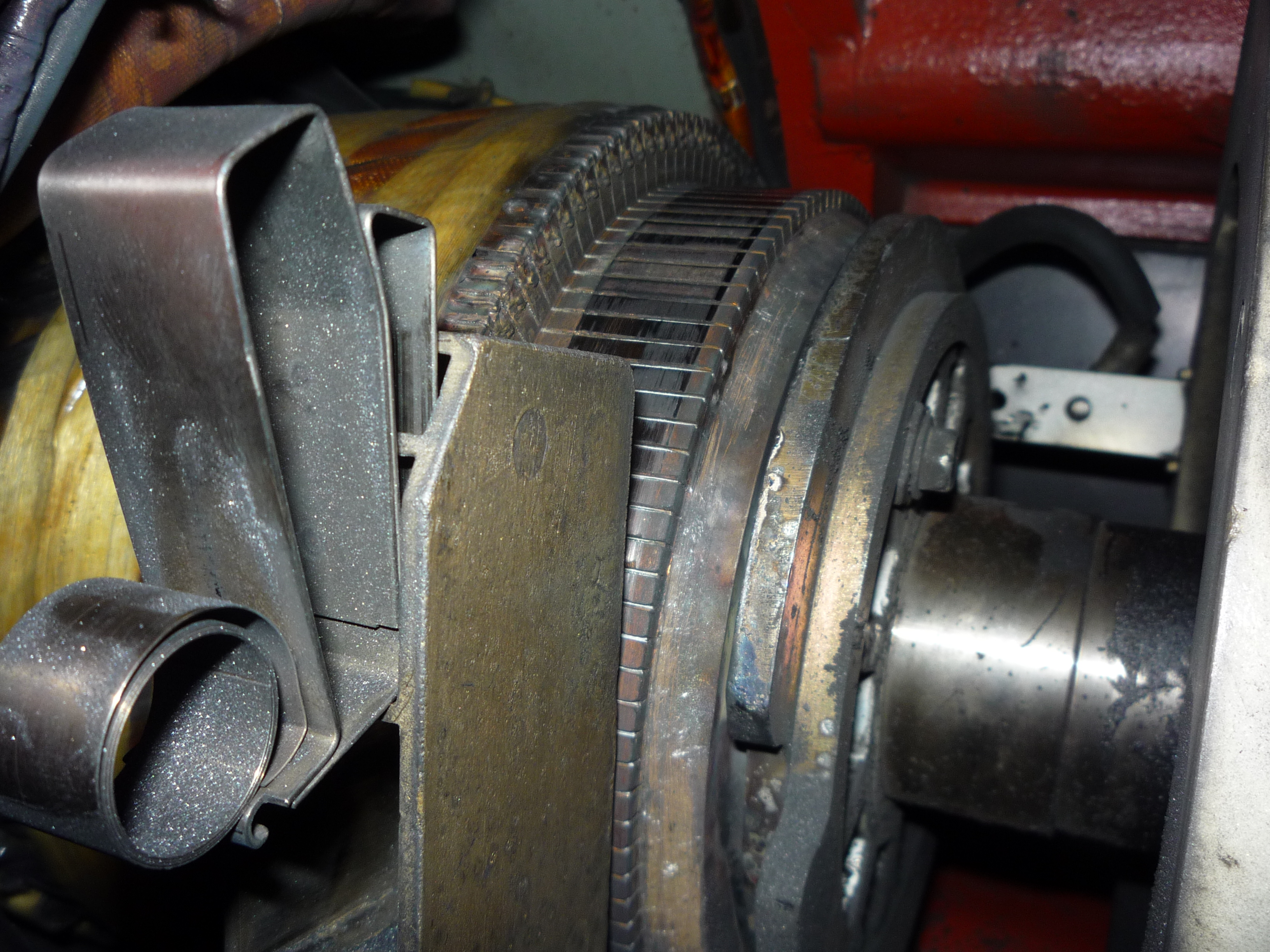

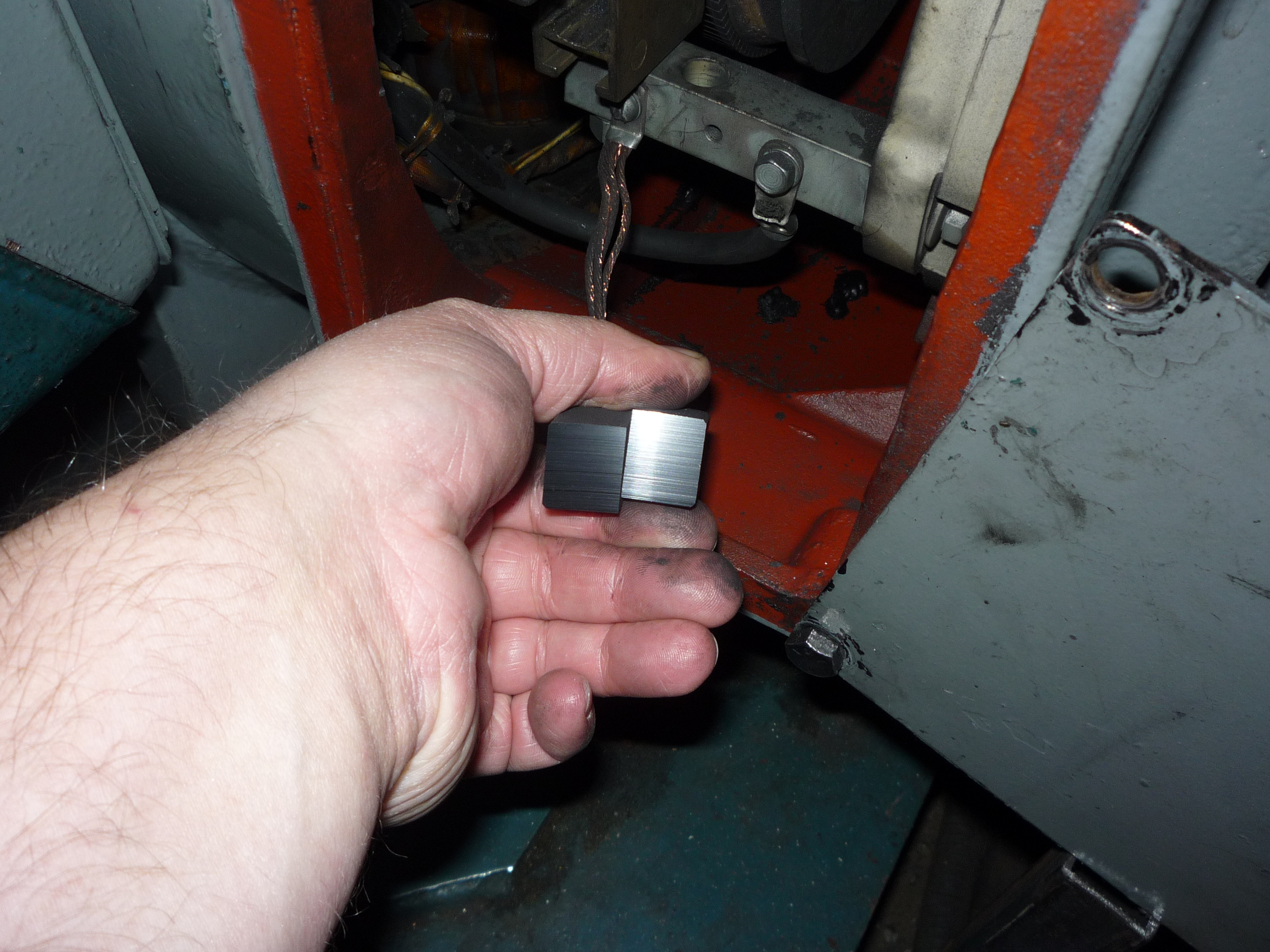

#8 Bead Tipper Extruder Drive GE OP-8-145 OP 30 500 42 1150/2000 25-127591 H77 2   Streaking film P1000143.JPG P1000142.JPG

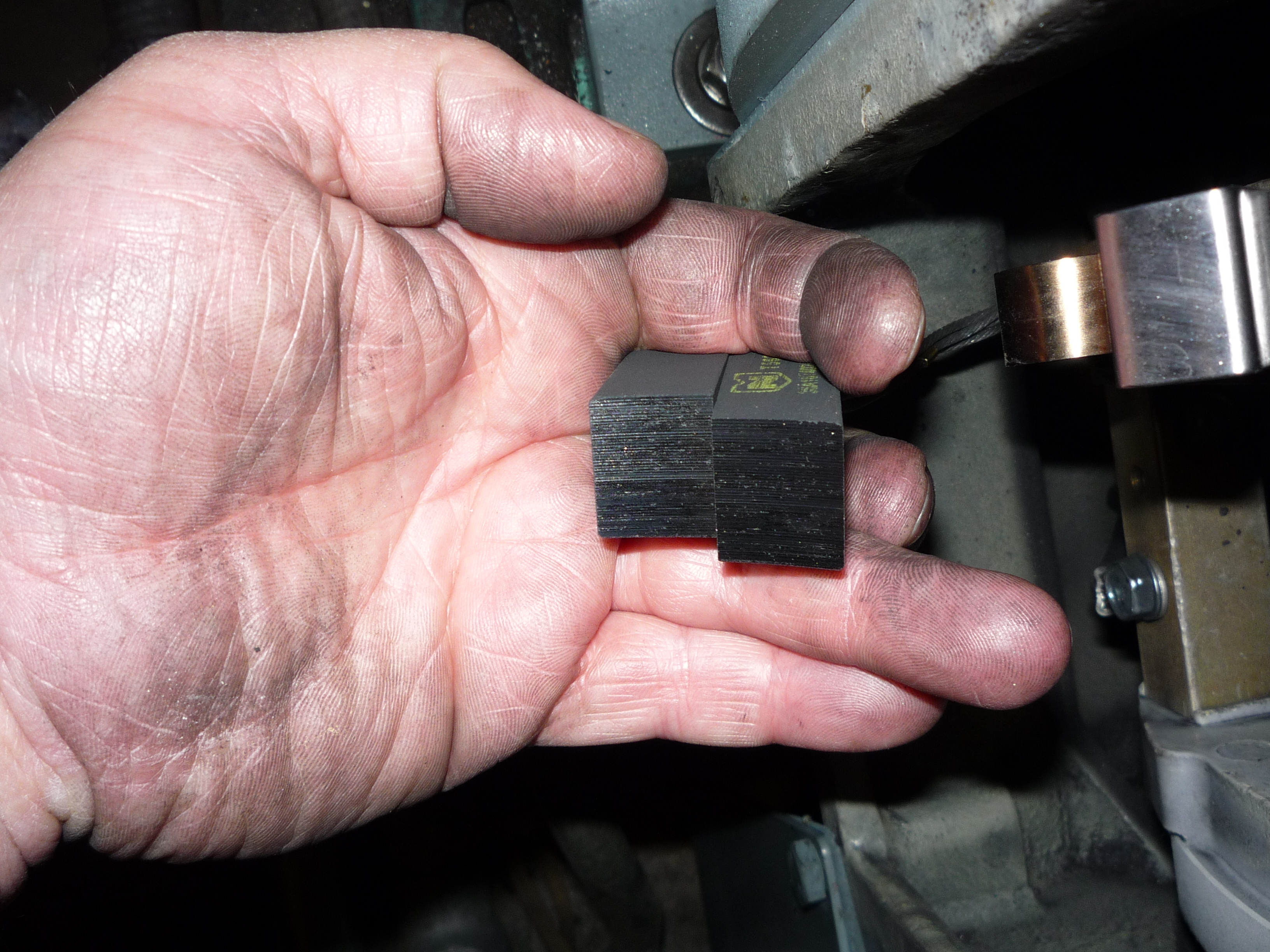

#7 Bead Tipper Extruder Drive GE EB-8-46 EB 30 500 50.4 1750/2000 National / 25-127591 H77 2   Streaking film P1000146.JPG P1000145.JPG

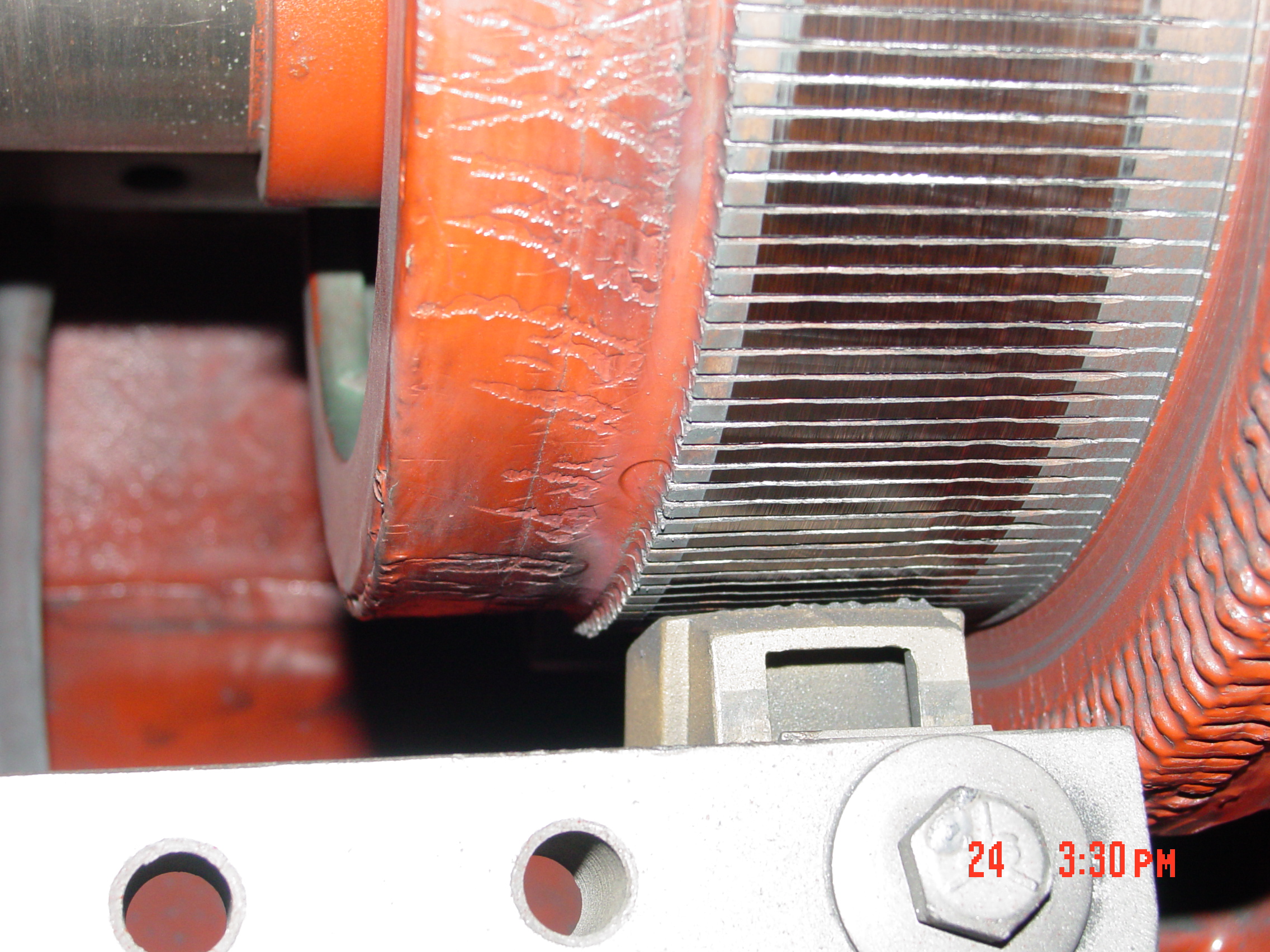

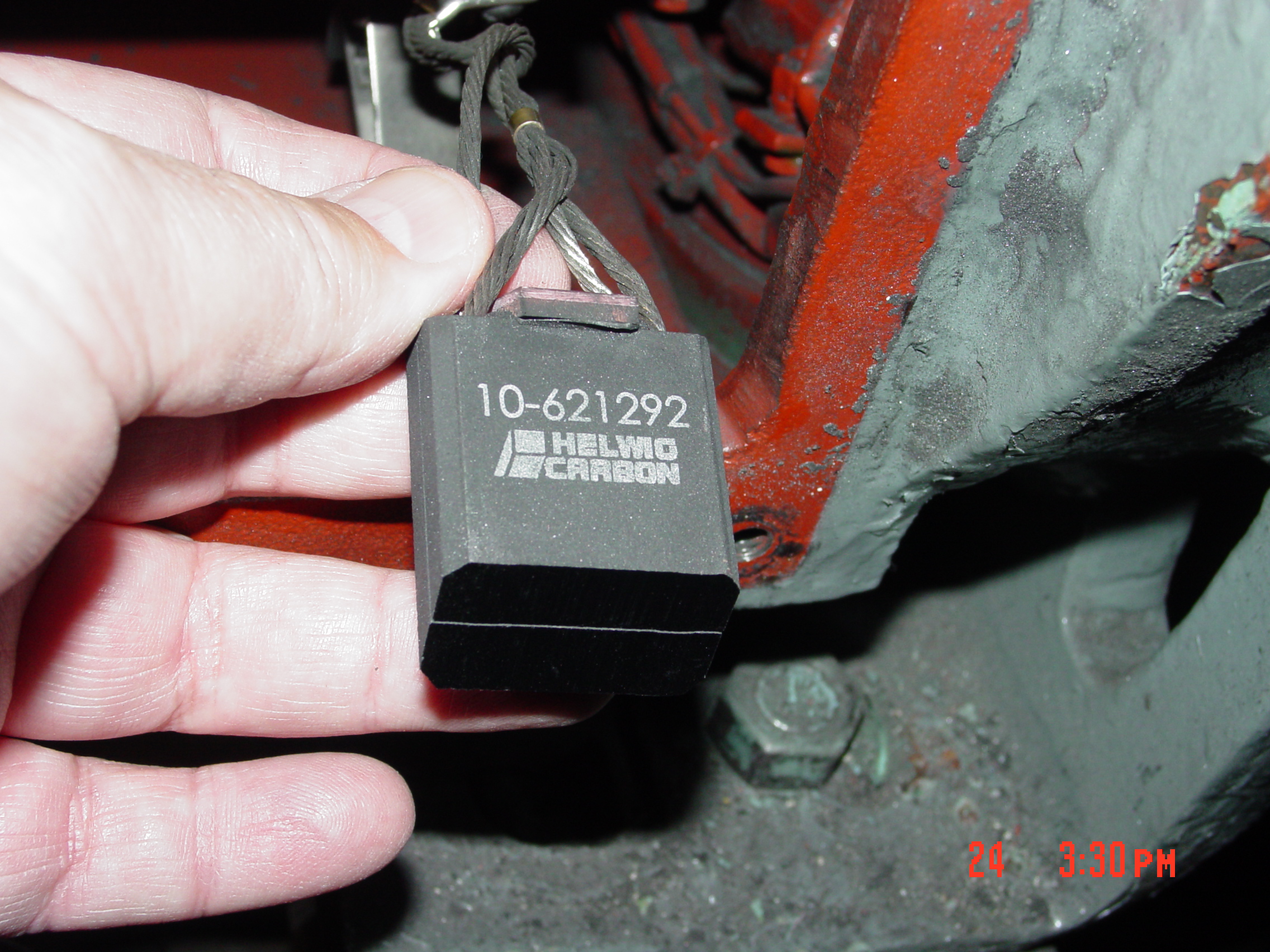

#11 Bead Tipper Extruder Drive GE AS-1-553 AS 60 500 90 17500/2100 10-621292 / 10-621296 H55 4 86A replace  Hairline threading DSC00006.JPG DSC00007.JPG

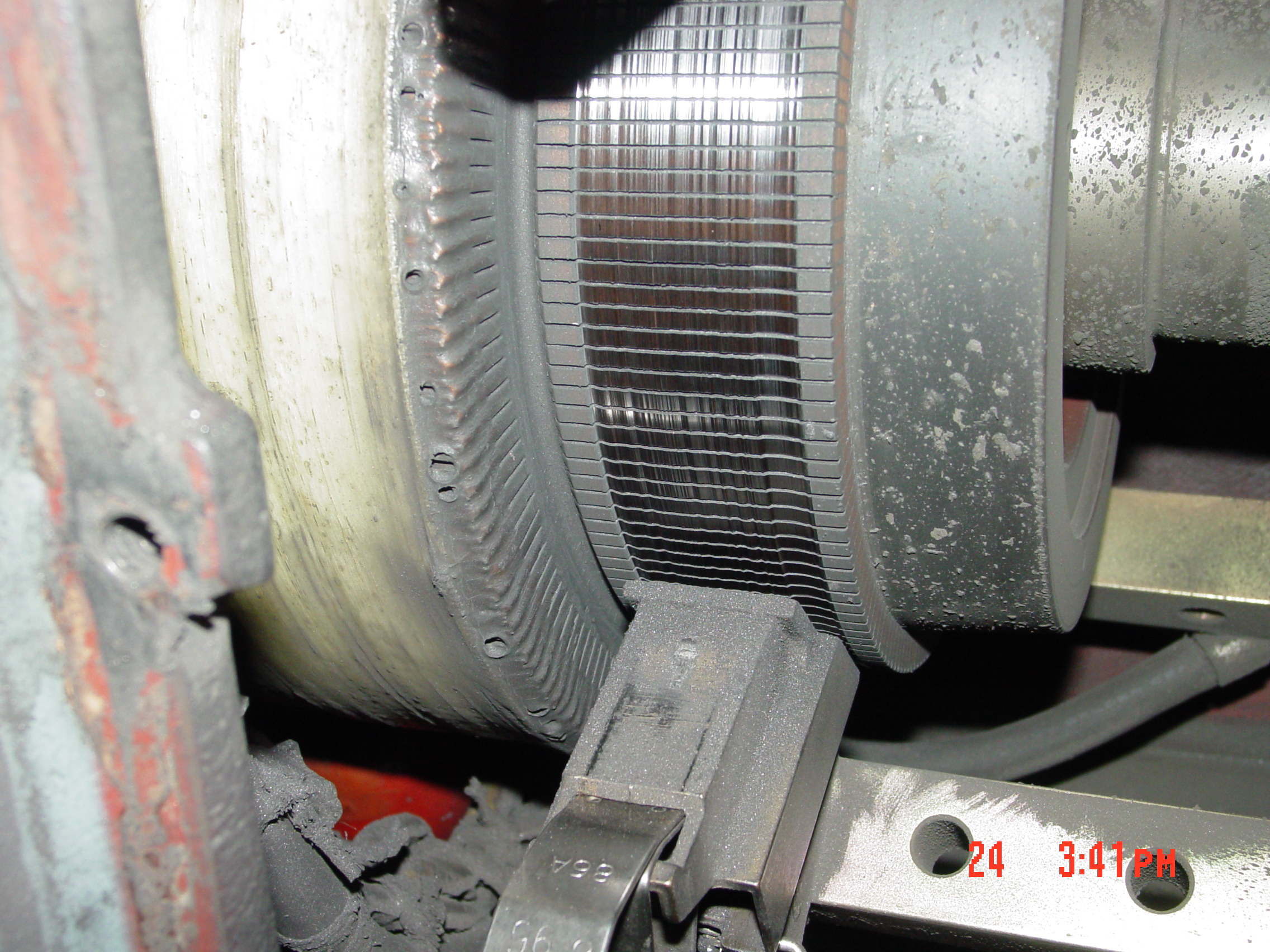

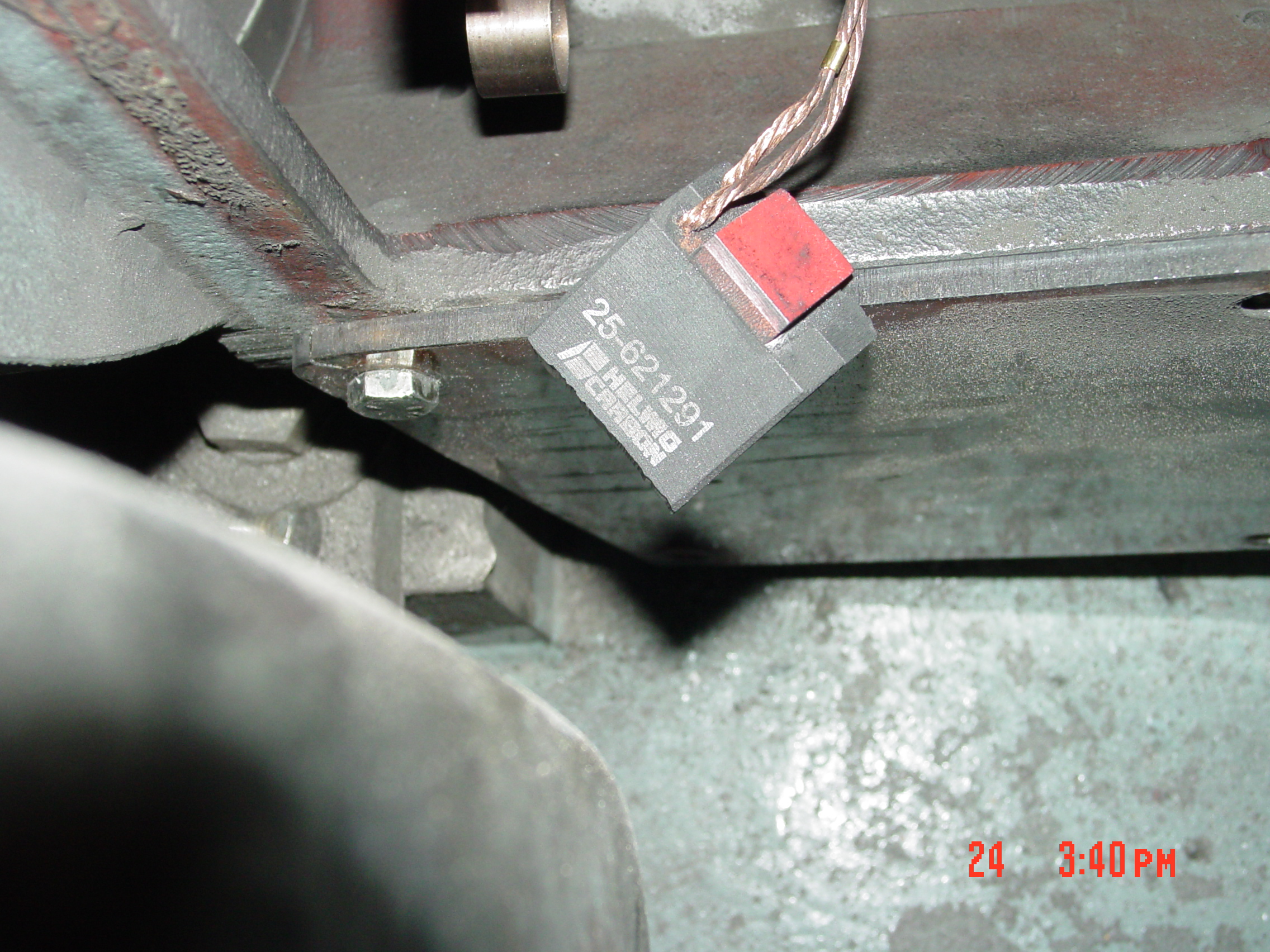

#9 Bead Tipper Extruder Drive GE CL-7-6 EV 75 500 122 1750 25-621291 / 10-621296 H55 4 86A replace  Threading DSC00008.JPG DSC00009.JPG

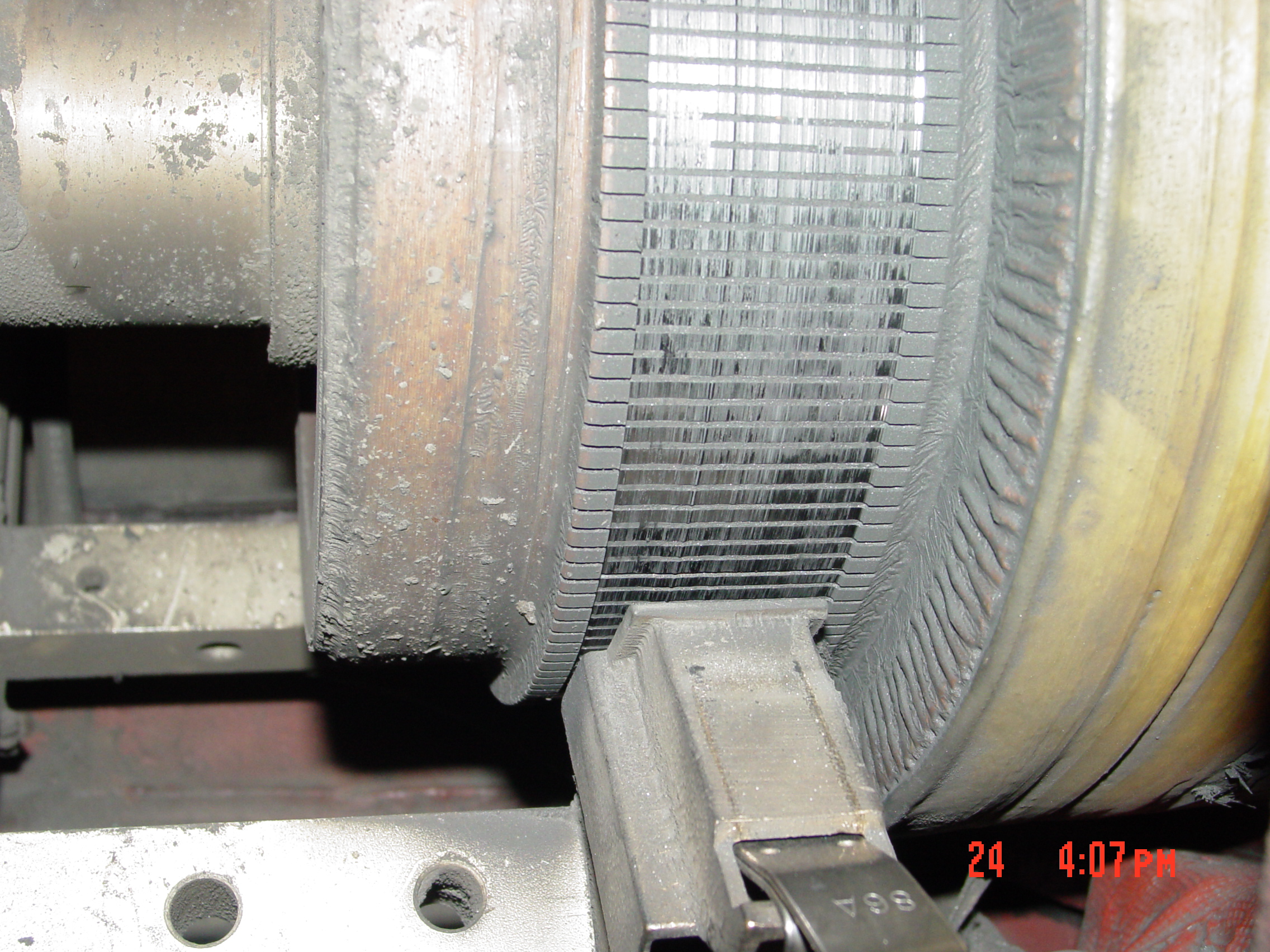

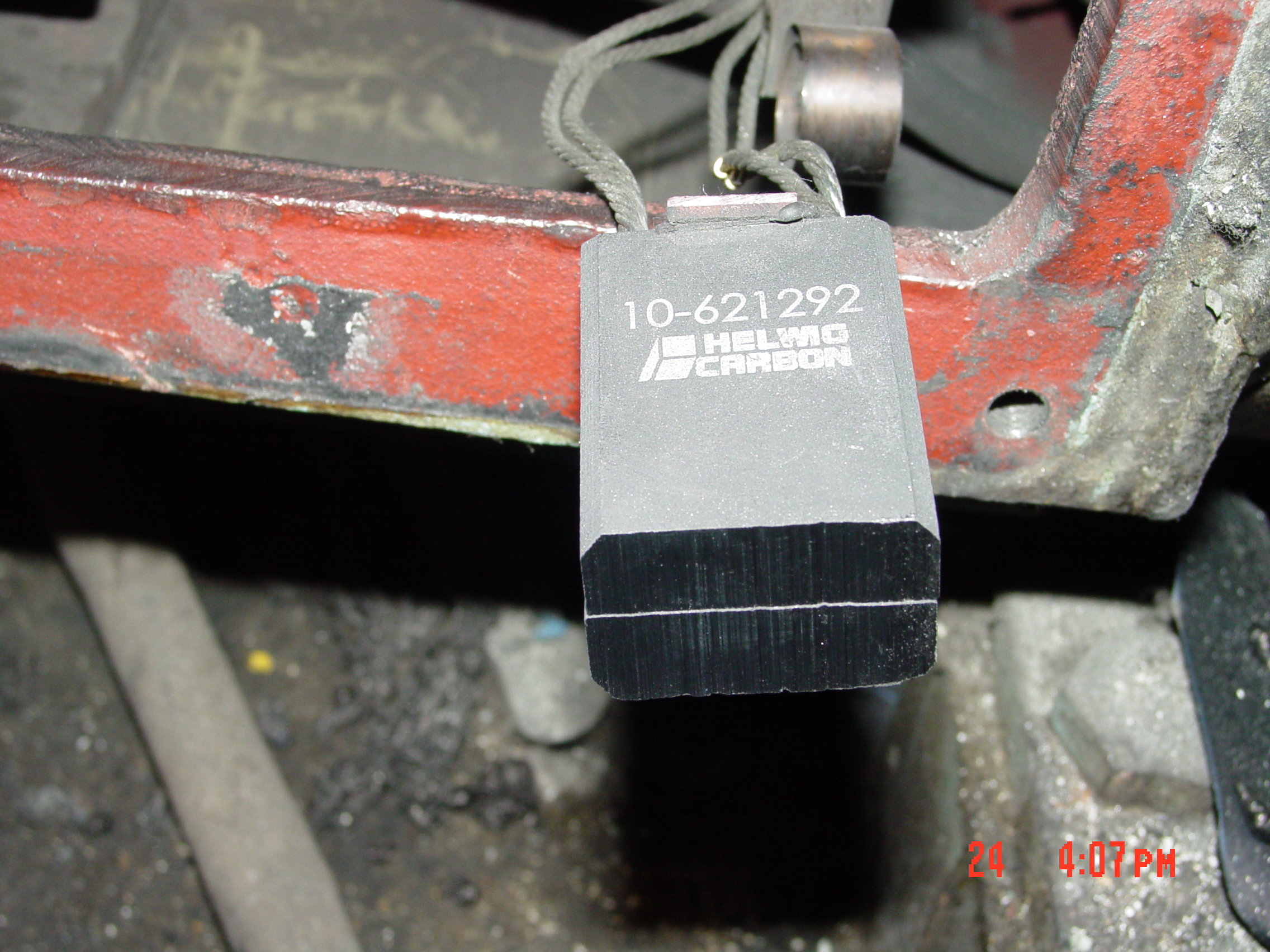

#6 Bead Tipper Extruder Drive GE RF-1-365 SF 75 500 122 1750 10-621292 / 10-621296 H55 4 86A replace  Smearing threading DSC00010.JPG DSC00011.JPG

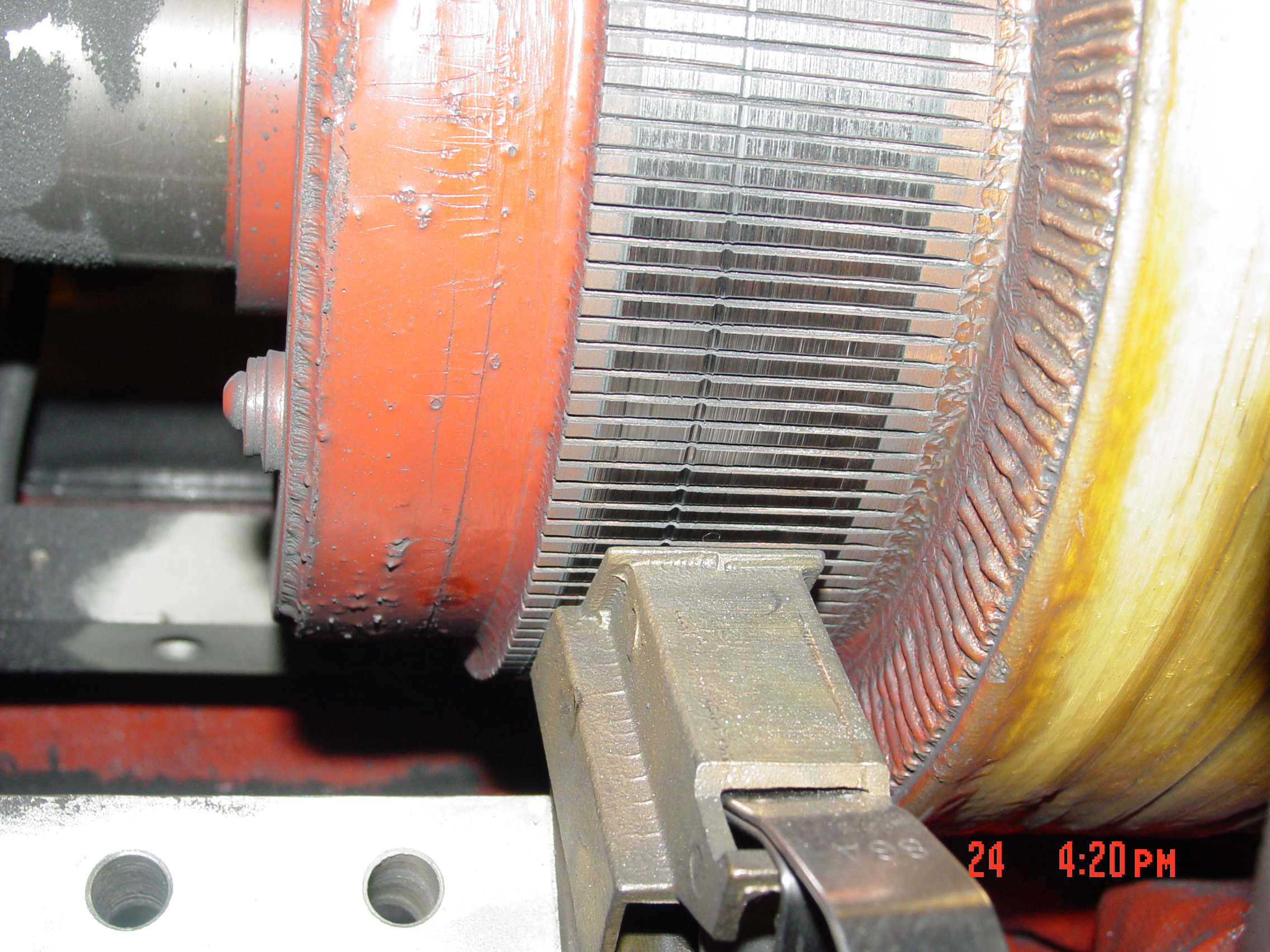

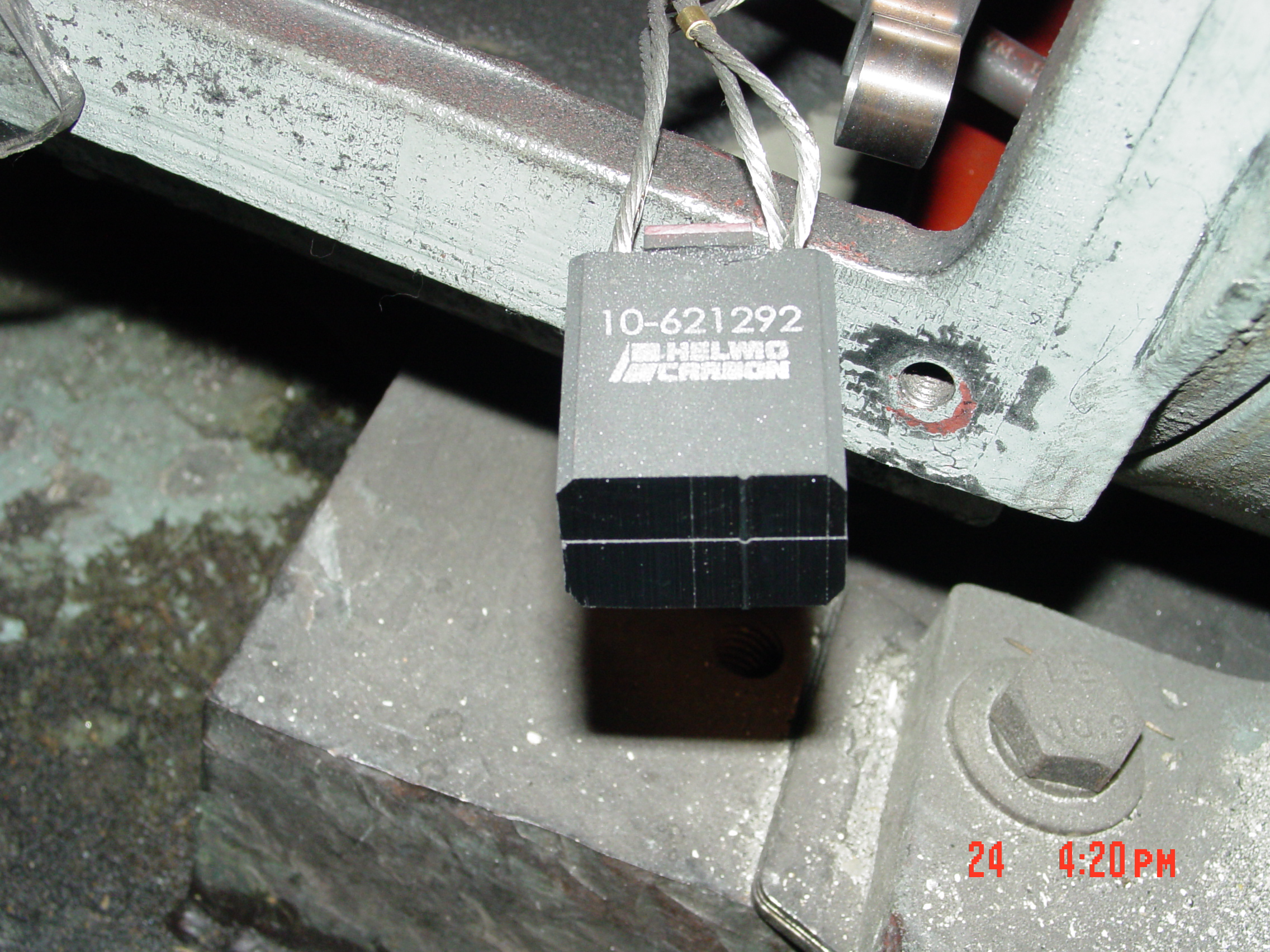

#5 Bead Tipper Extruder Drive GE RE-1-357 SF 75 500 122 1750 10-621292 / 10-621296 H55 4 86A replace  Sever hairlining DSC00013.JPG DSC00014.JPG

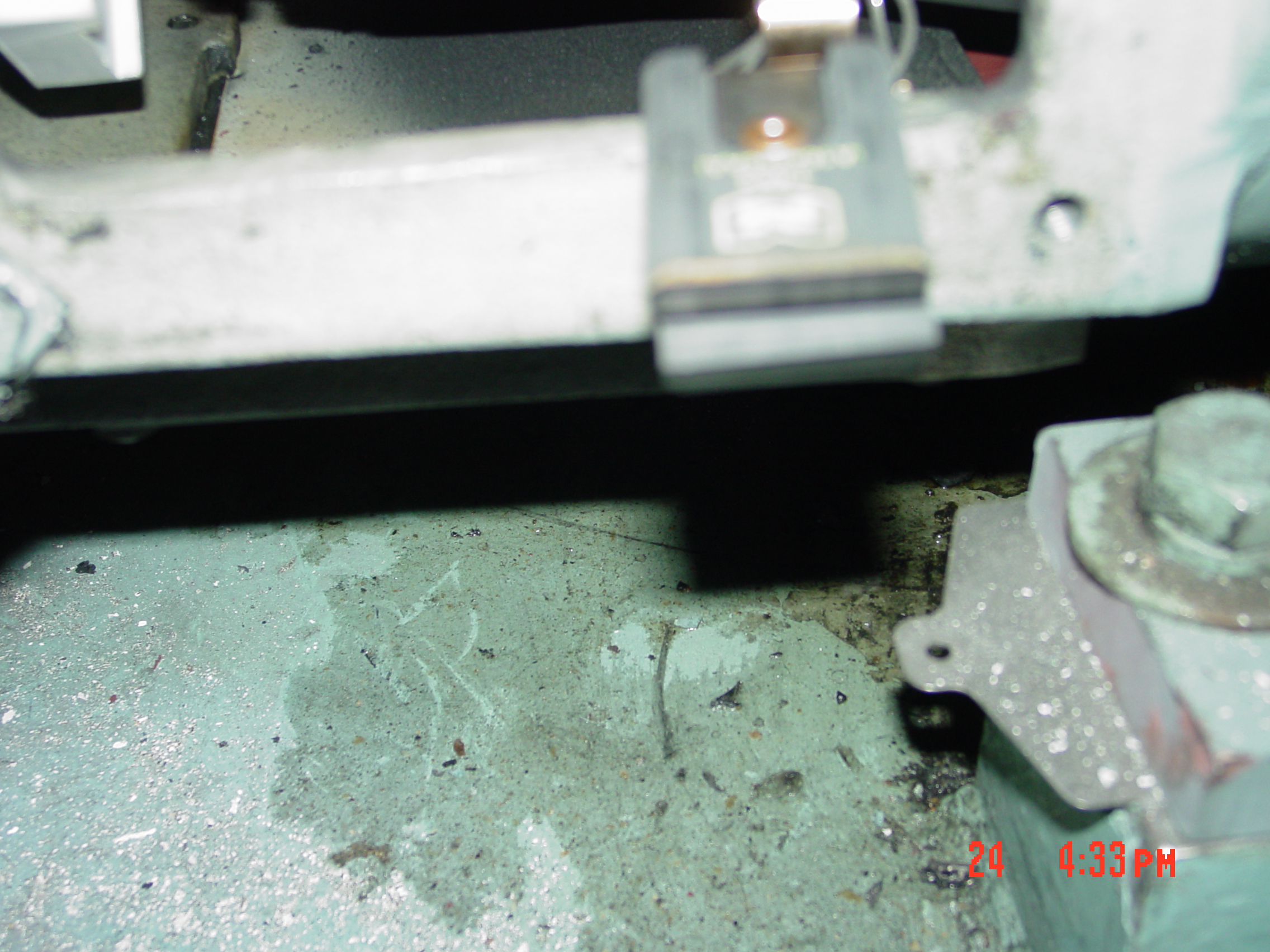

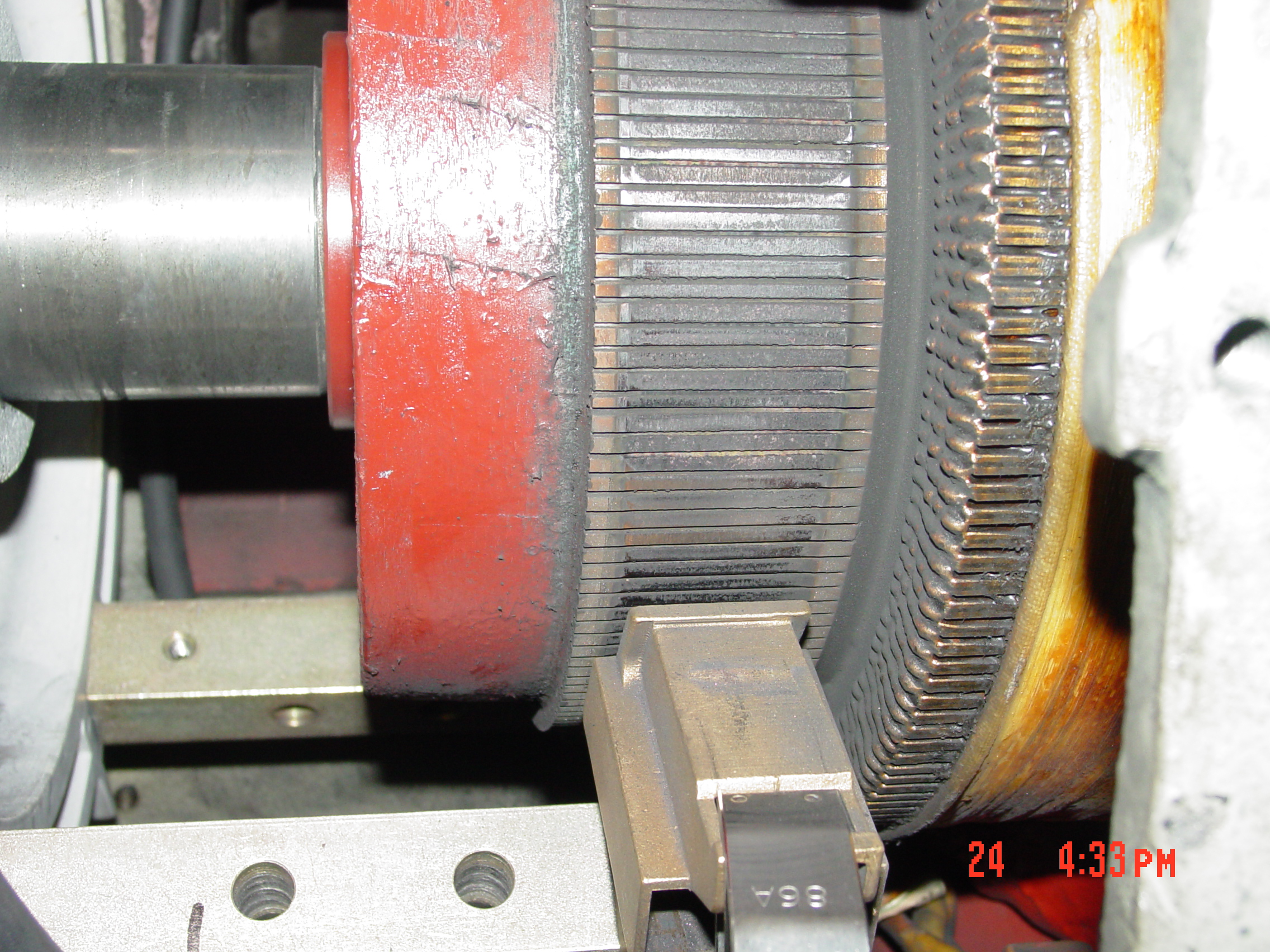

#4 Bead Tipper Extruder Drive GE FB-7-4-FB 75 500 122 1750 National / 10-621296 H55 4 86A replace  National brush burning com DSC00017.JPG DSC00018.JPG

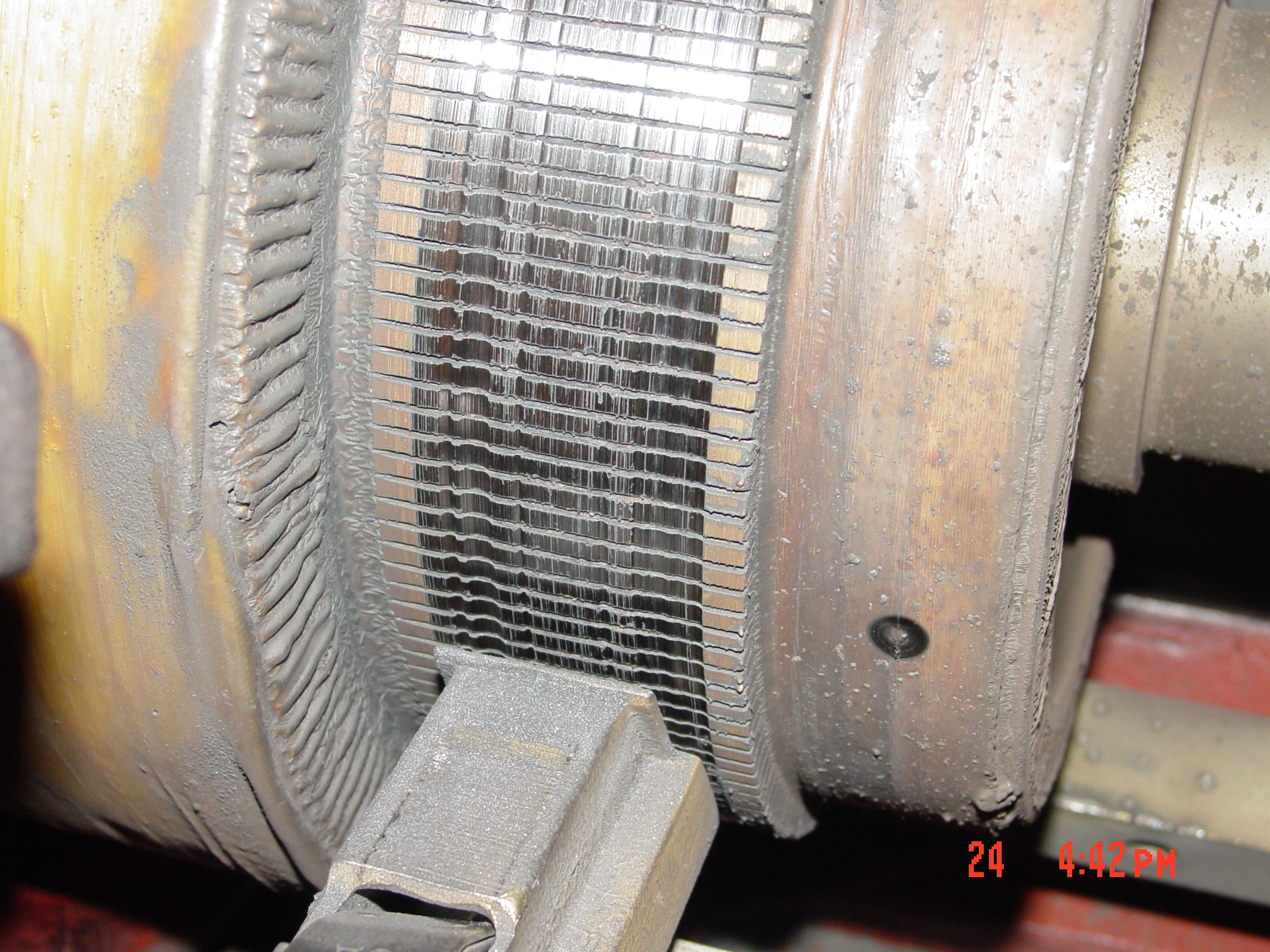

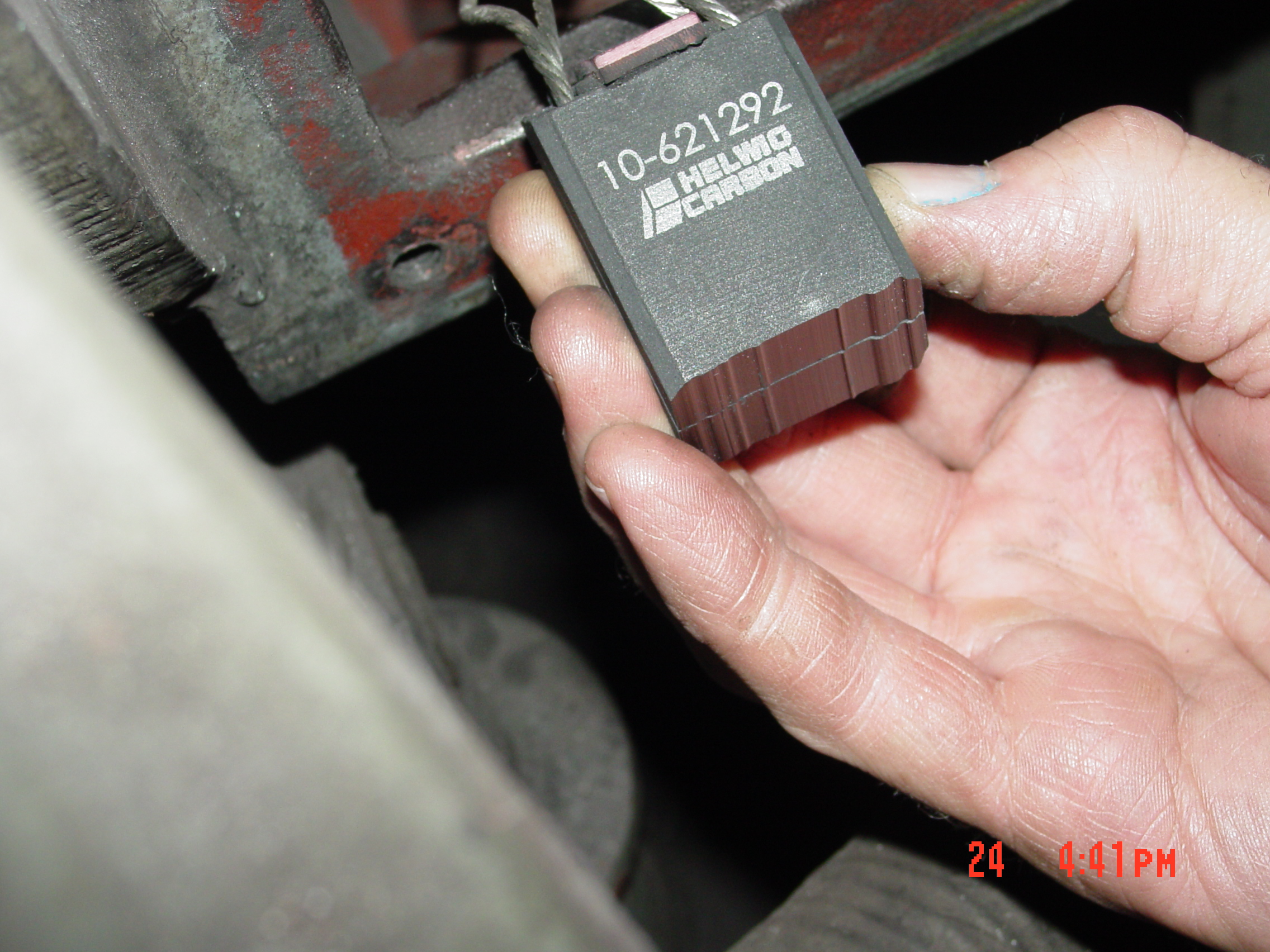

#3 Bead Tipper Extruder Drive GE RF-1-564 SF 75 500 122 1750 10-621292 / 10-621296 H55 4 86A replace  Gooving DSC00019.JPG DSC00020.JPG

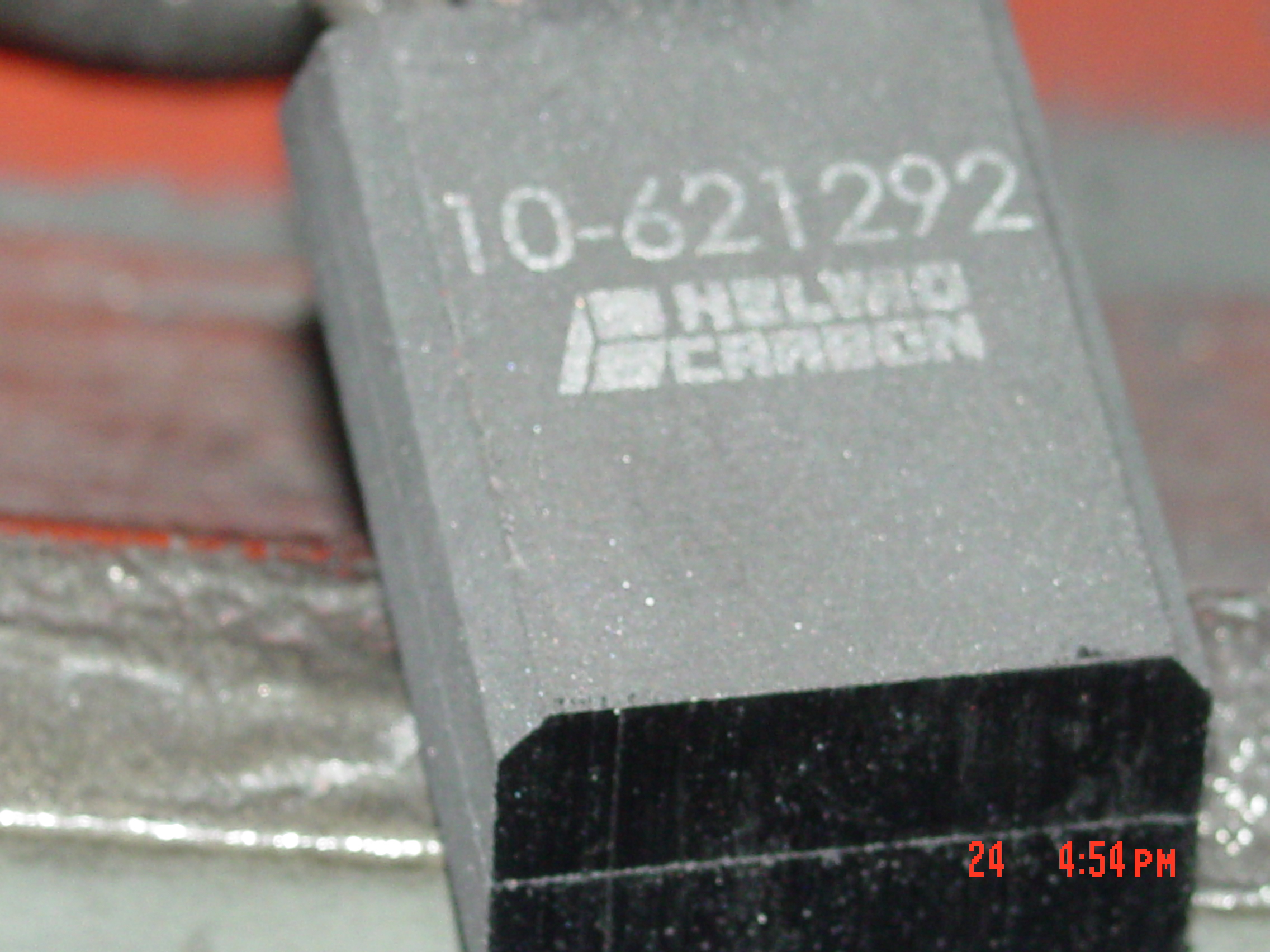

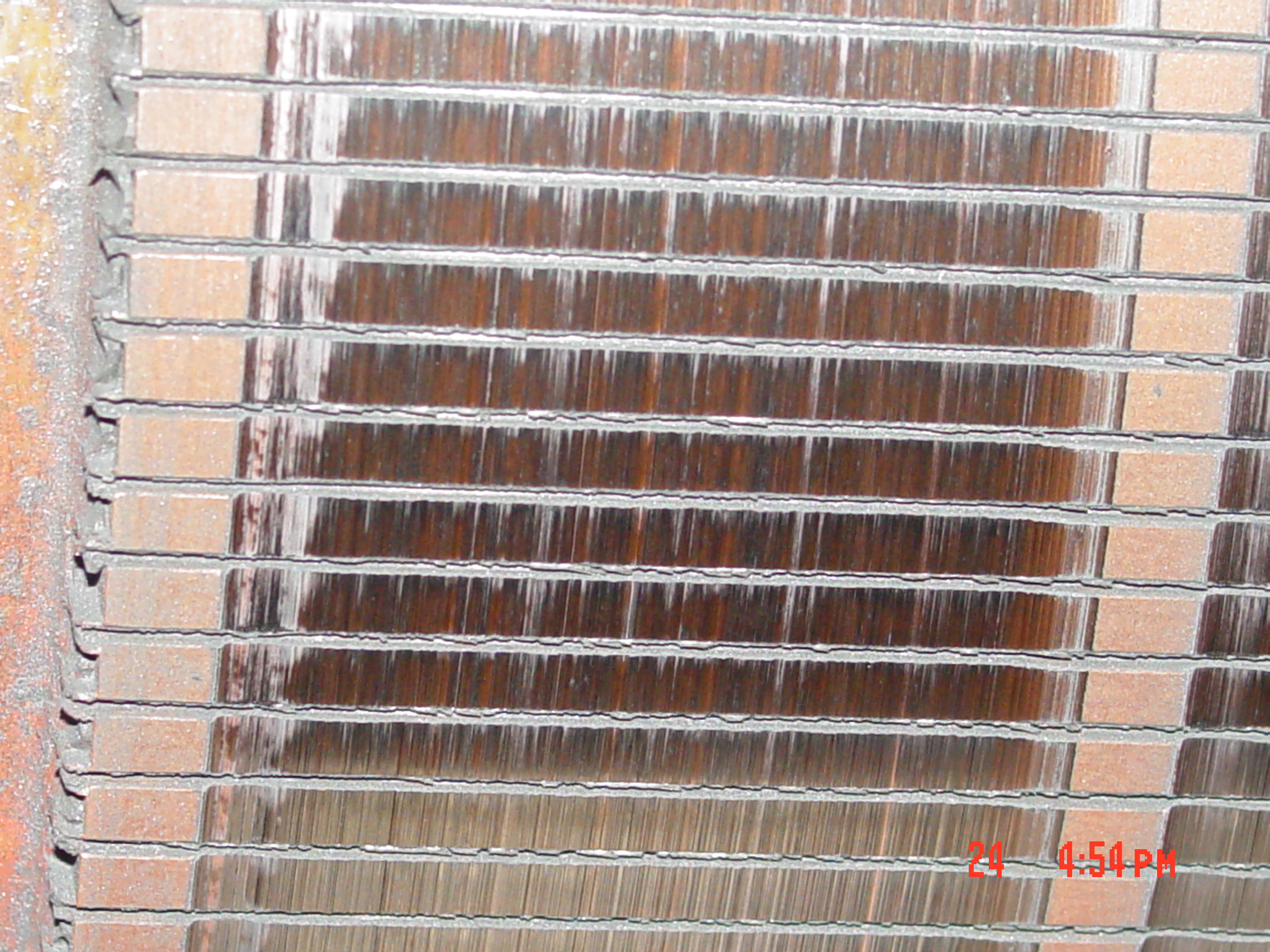

#2 Bead Tipper Extruder Drive GE 56 386-FM 75 500 123 1750 10-621292 / 10-621296 H55 8 86A replace  Cooper drag DSC00022.JPG DSC00023.JPG

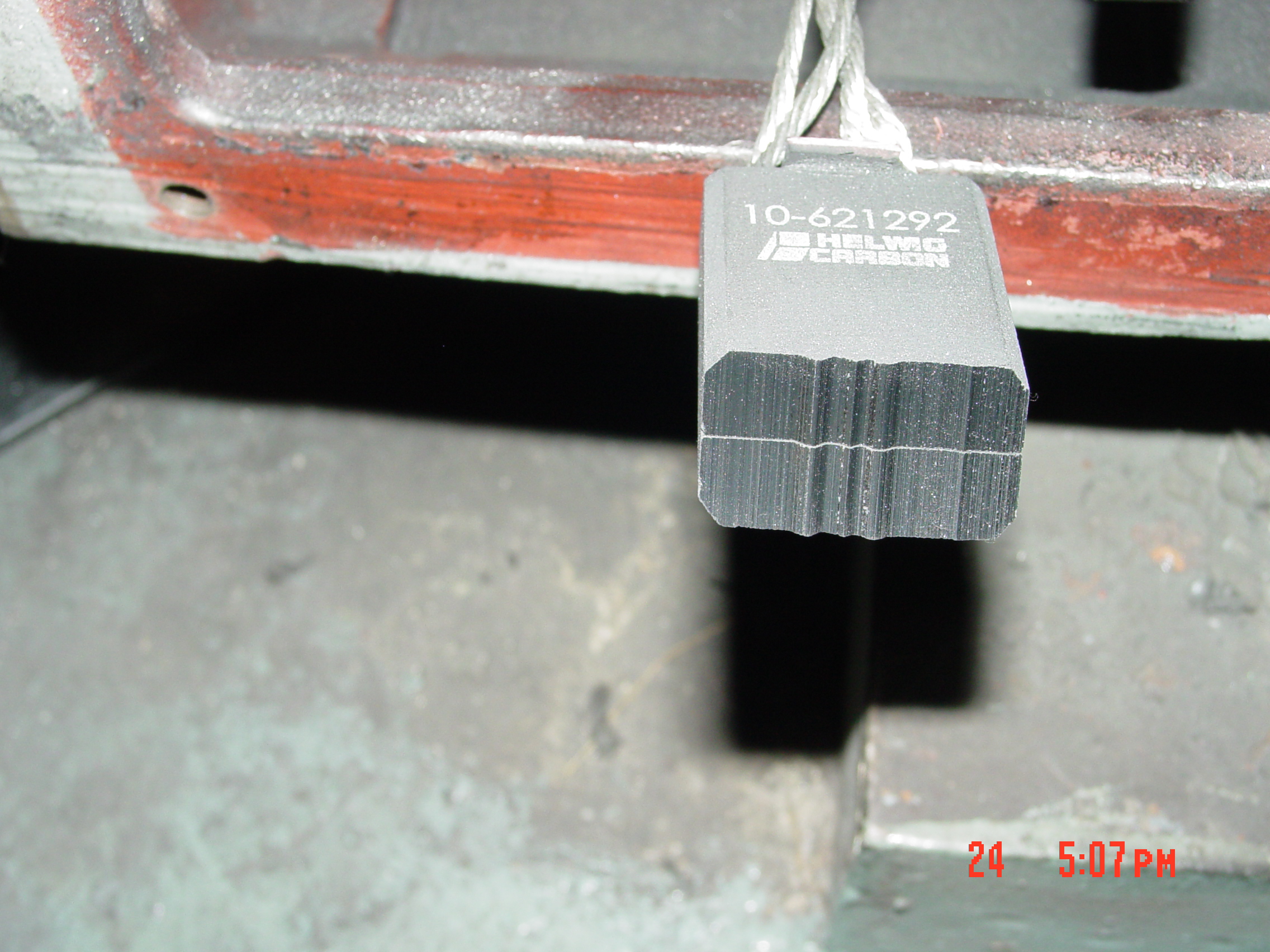

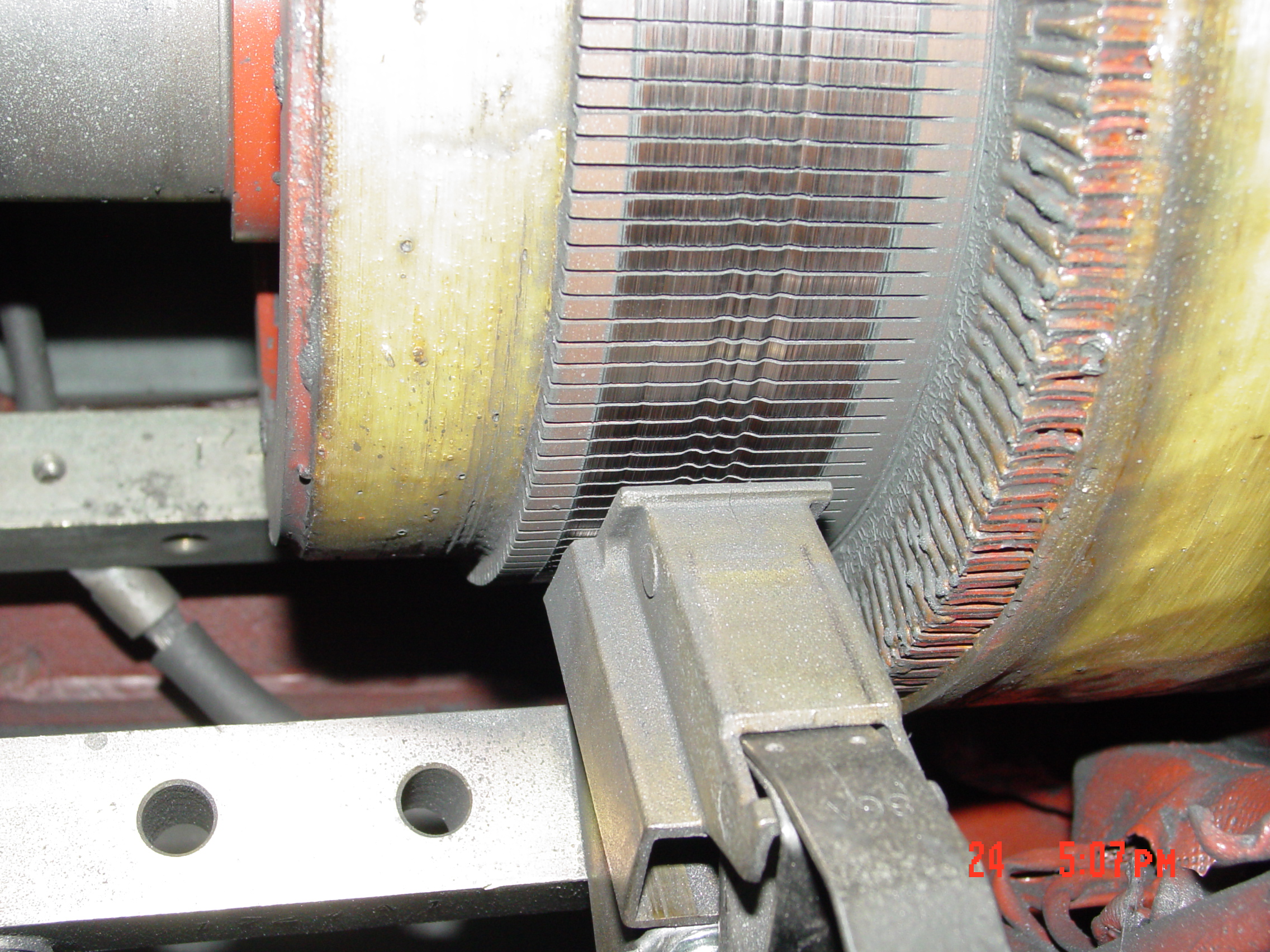

#1 Bead Tipper Extruder Drive GE ZG-1-29 ZG 75 500 112 1750 10-621292 / 10-621296 H55 4 86A replace  Bad threading DSC00027.JPG DSC00028.JPG

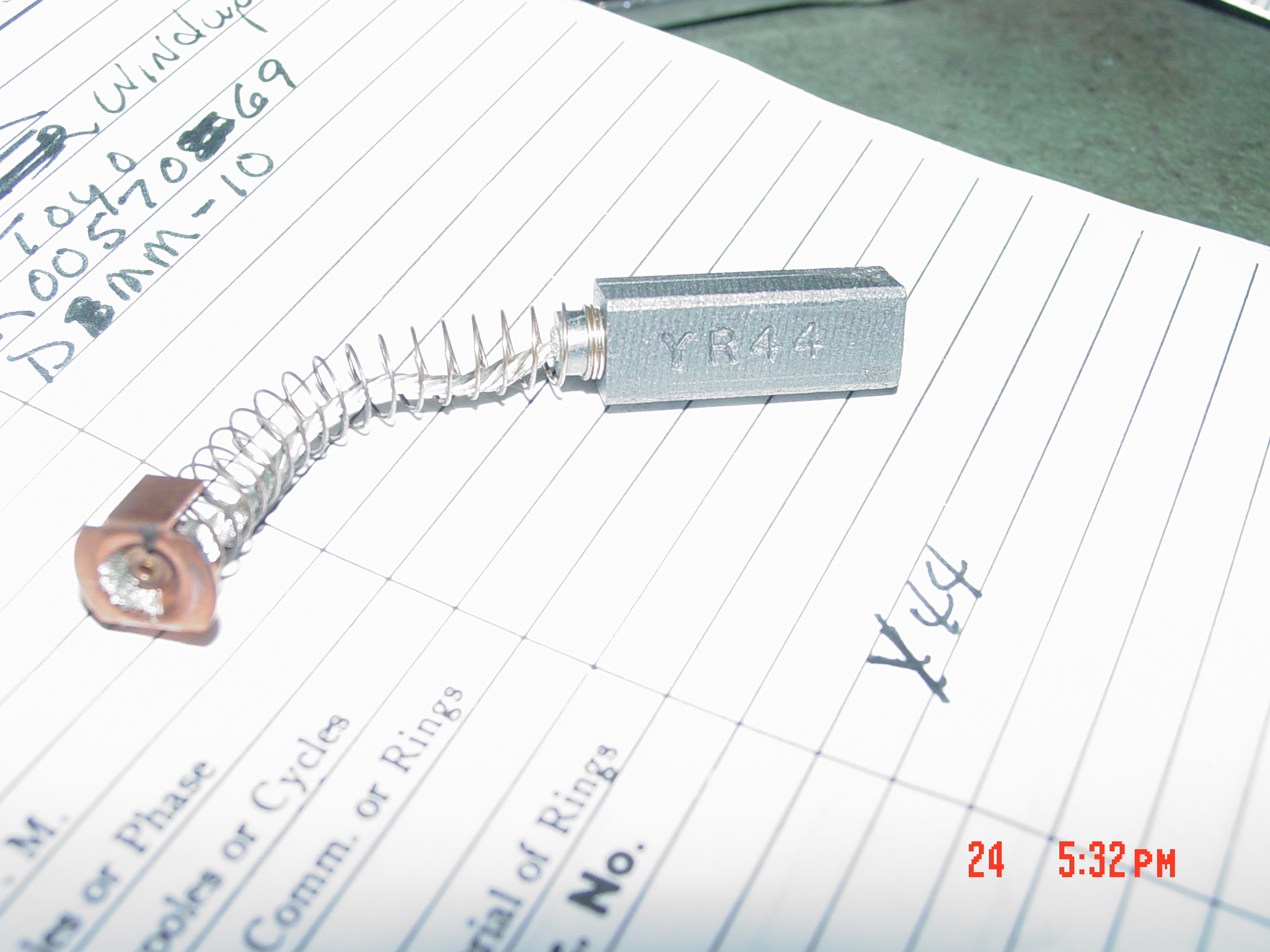

APC # 1 Wind up Guide Toyo K0057069 .1 KW 24 6 1800 Y44 / 30-233110034402 K254 2 Part of brush Hairline threading, grade change Increase spring length, and open coils DSC00029.JPG
APC #2 Wind up Guide Toyo K0057069 .1KW 24 6 1800 Y44 / 30-233110034402 K254 2 Part of brush Hairline threading, grade change. Increase spring length, and open coils DSC00029.JPG

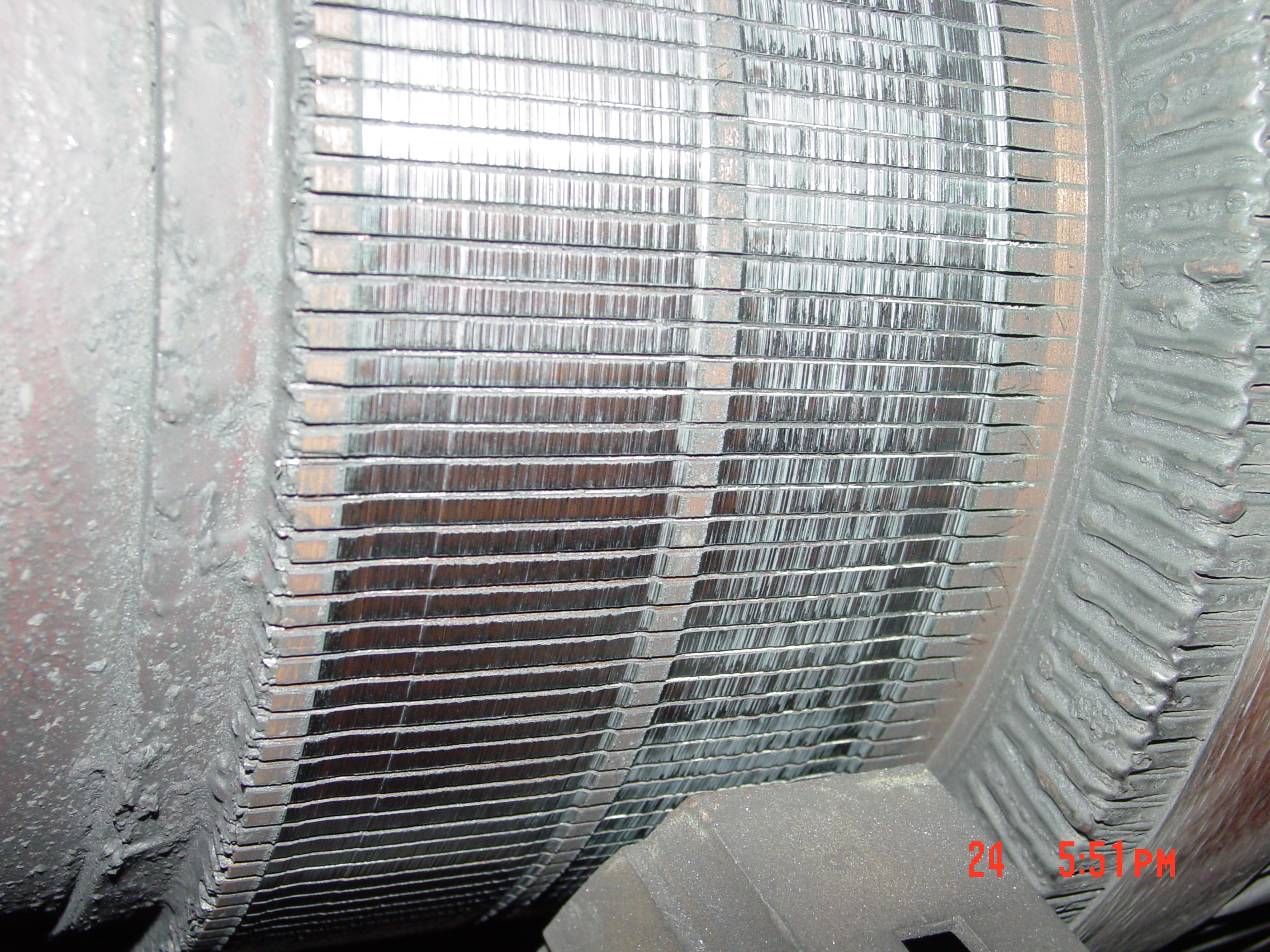

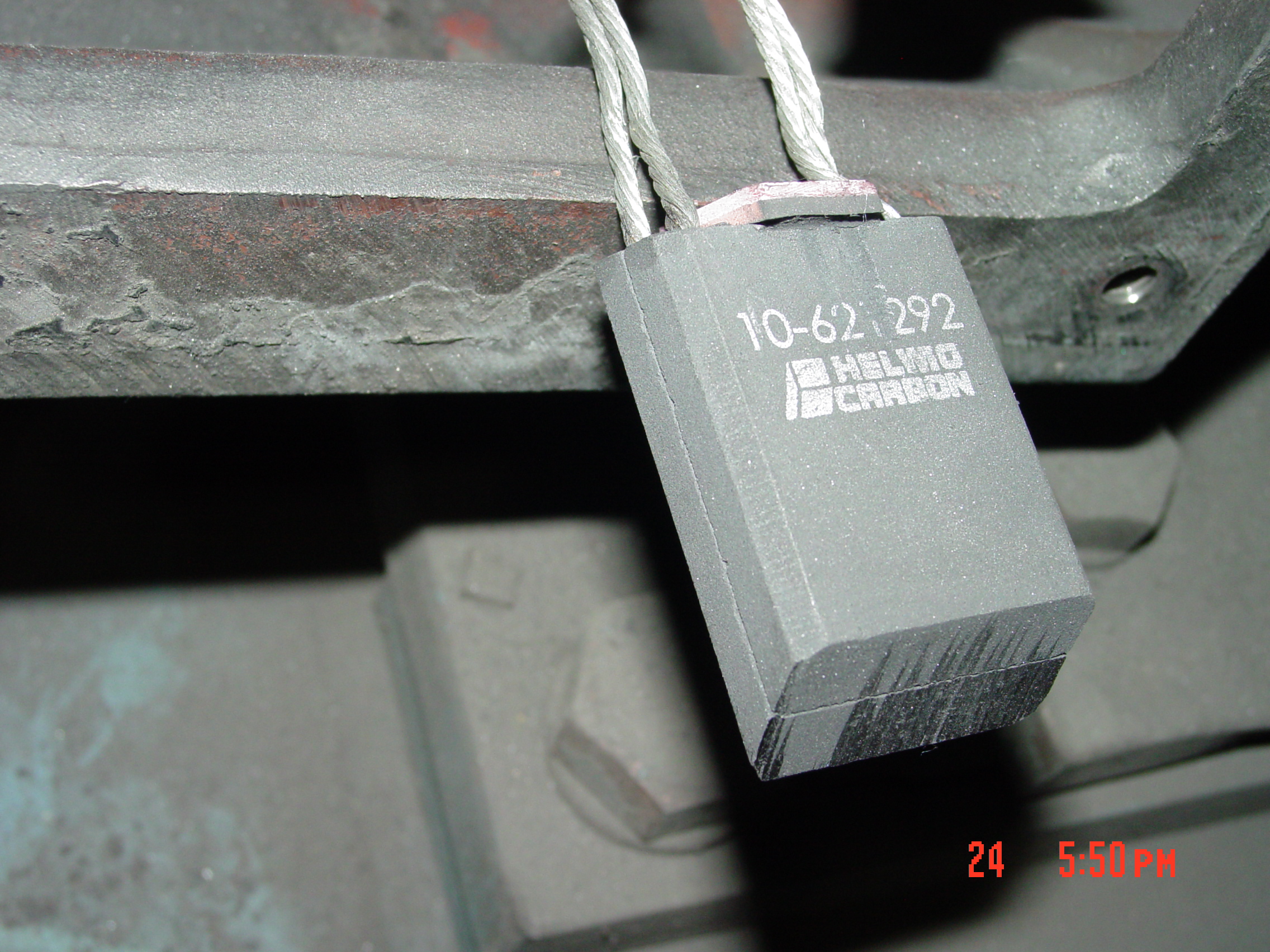

Mill Motor Baldor N029/0039-SP0018 75 500 123 1750 10-621292 H57  Grade OK 4 ID Again Com grooving  DSC00031.JPG DSC00032.JPG

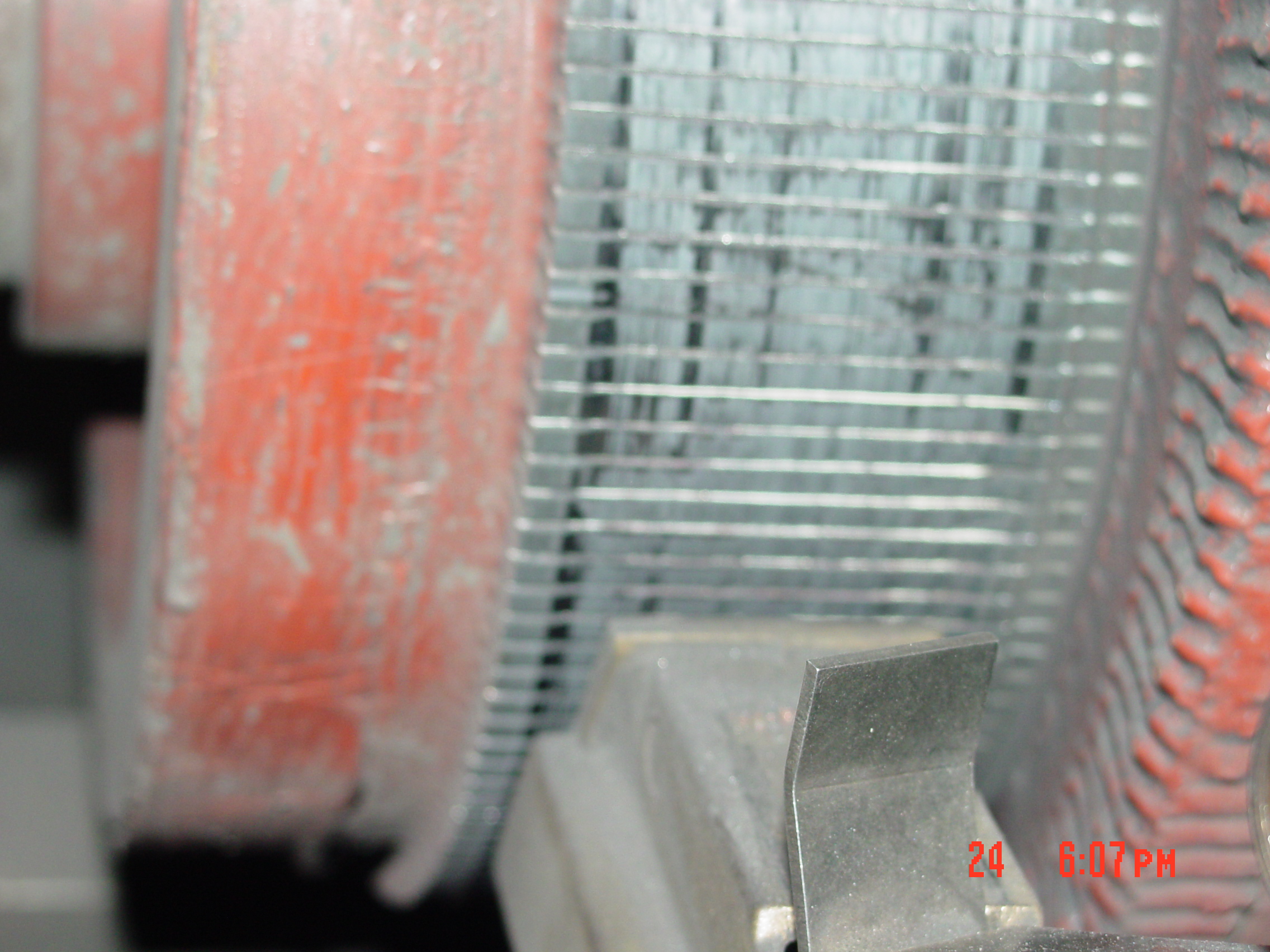

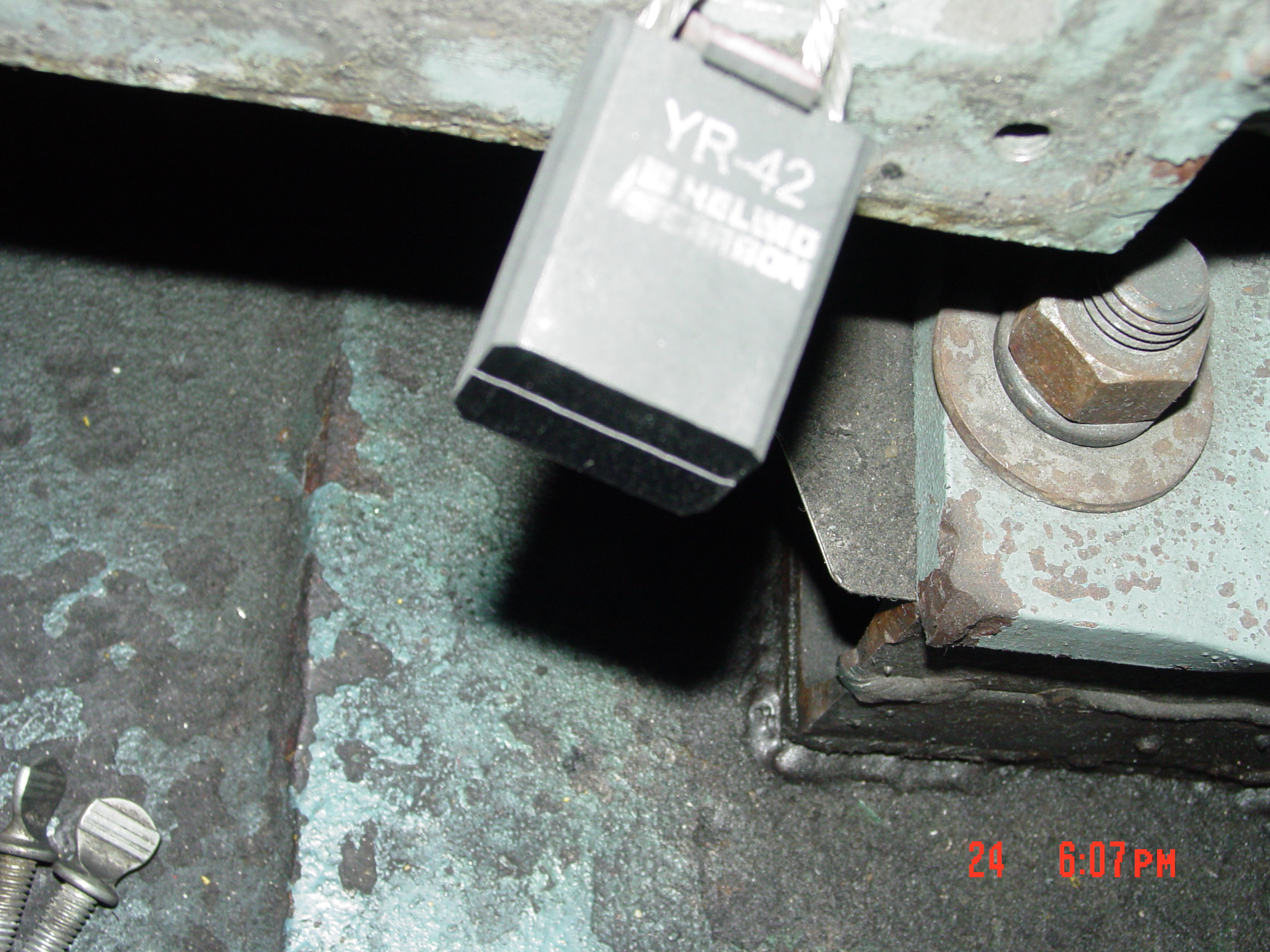

Extruder GE MS-1-31 MS 60 550 90 1750/2100 YR42 4 86A replace  Sever threading, runs no load/idle DSC00035.JPG DSC00036.JPG

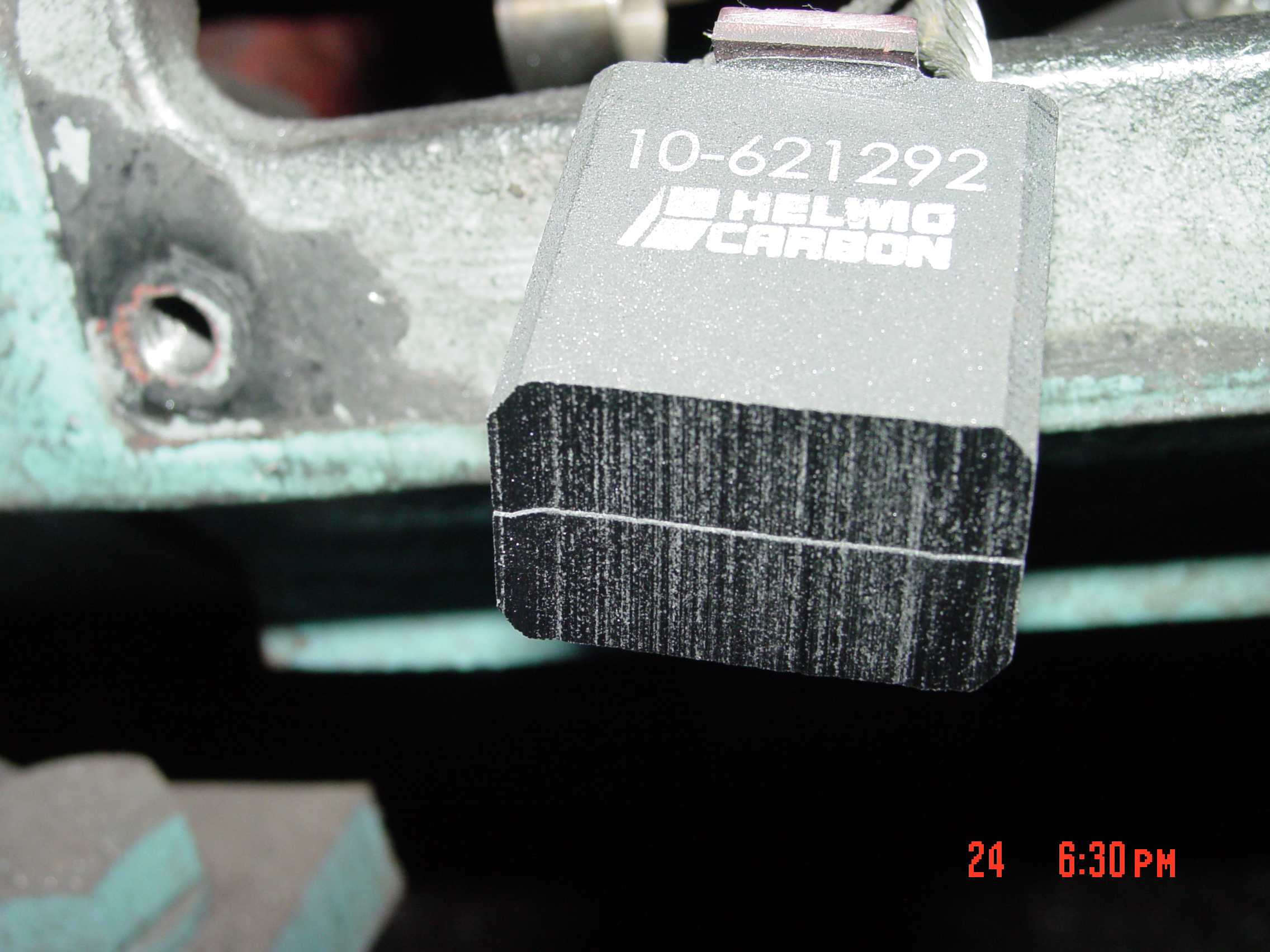

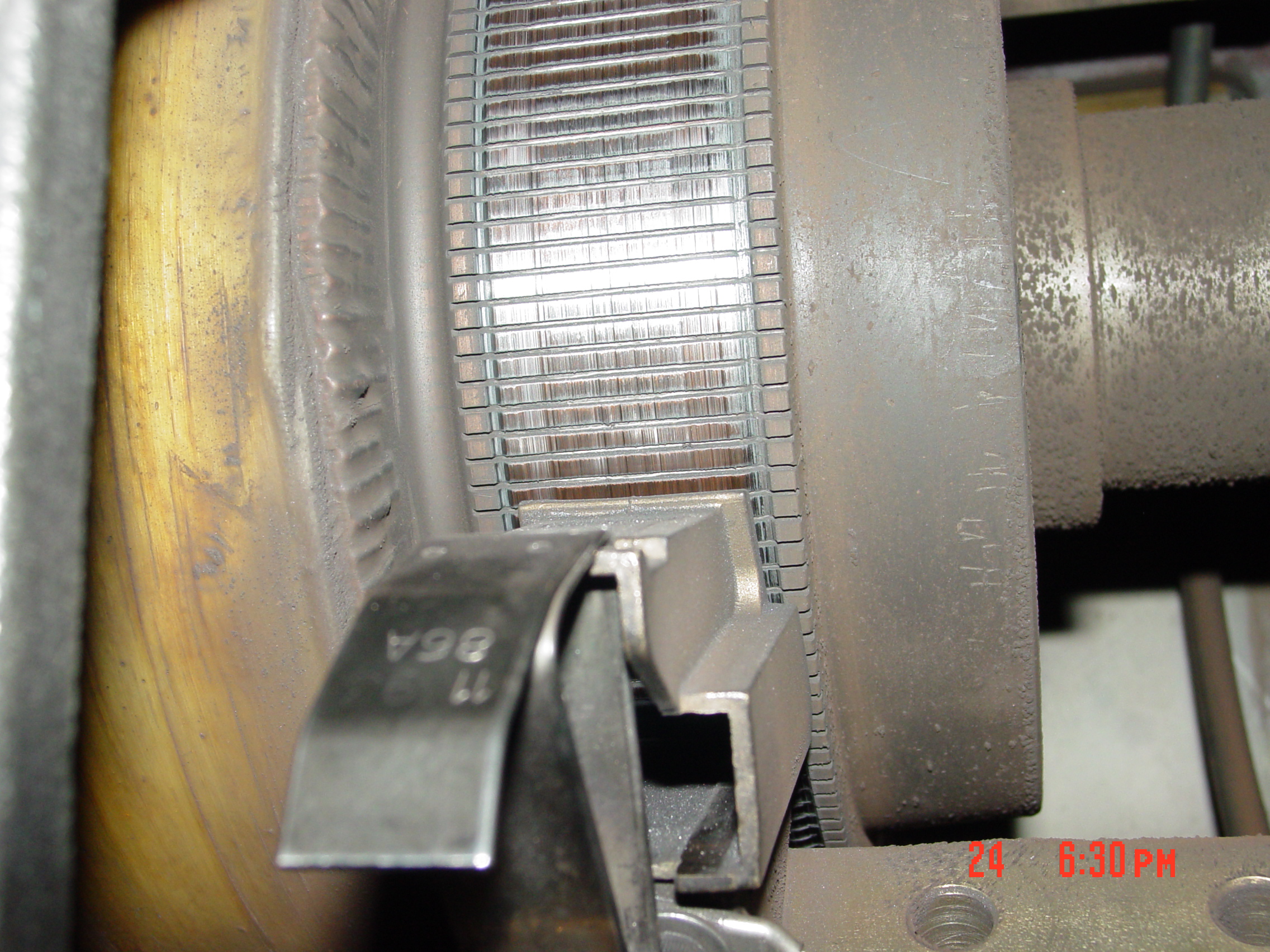

Automatic Bead Winder GE PU-1-205 Pu 75 500 122 1750/2100 10-621292 H57  Grade OK 4 86A replace  Smearing threading DSC00039.JPG DSC00040.JPG
