Brush Location	Image Link	Motor Manufacture	Description	Brush Length	Brush Width	Brush Thickness	Current Nutra Part Number	Helwig Part Number	Helwig Description	Cap Style	Cap Dimension	Width of Slot	Width	Thickness	Width Across Ears	Width of Ears	Length of Ears	Spring Diameter	Diameter of Shunt	Free Length	Diamter of Spring coil	# of Active Coils	# of Closed Coils

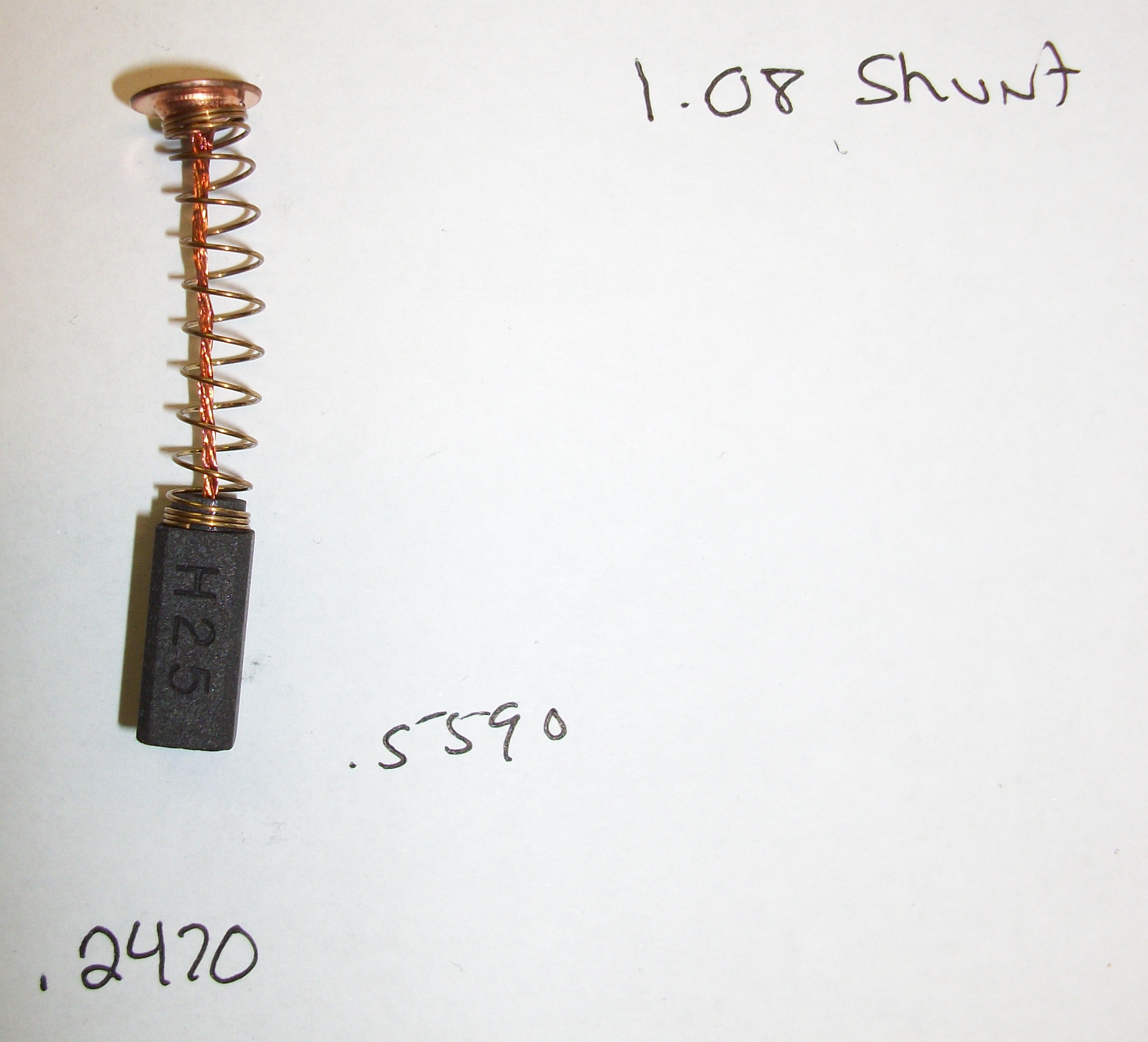

11-1a	11-1a	Unknown	DC Brush	0.5590	0.2470	0.2470	H25	822424463032201	82-242421	Round	0.3390							0.2285	0.0415	1.0500	0.0145	8	6

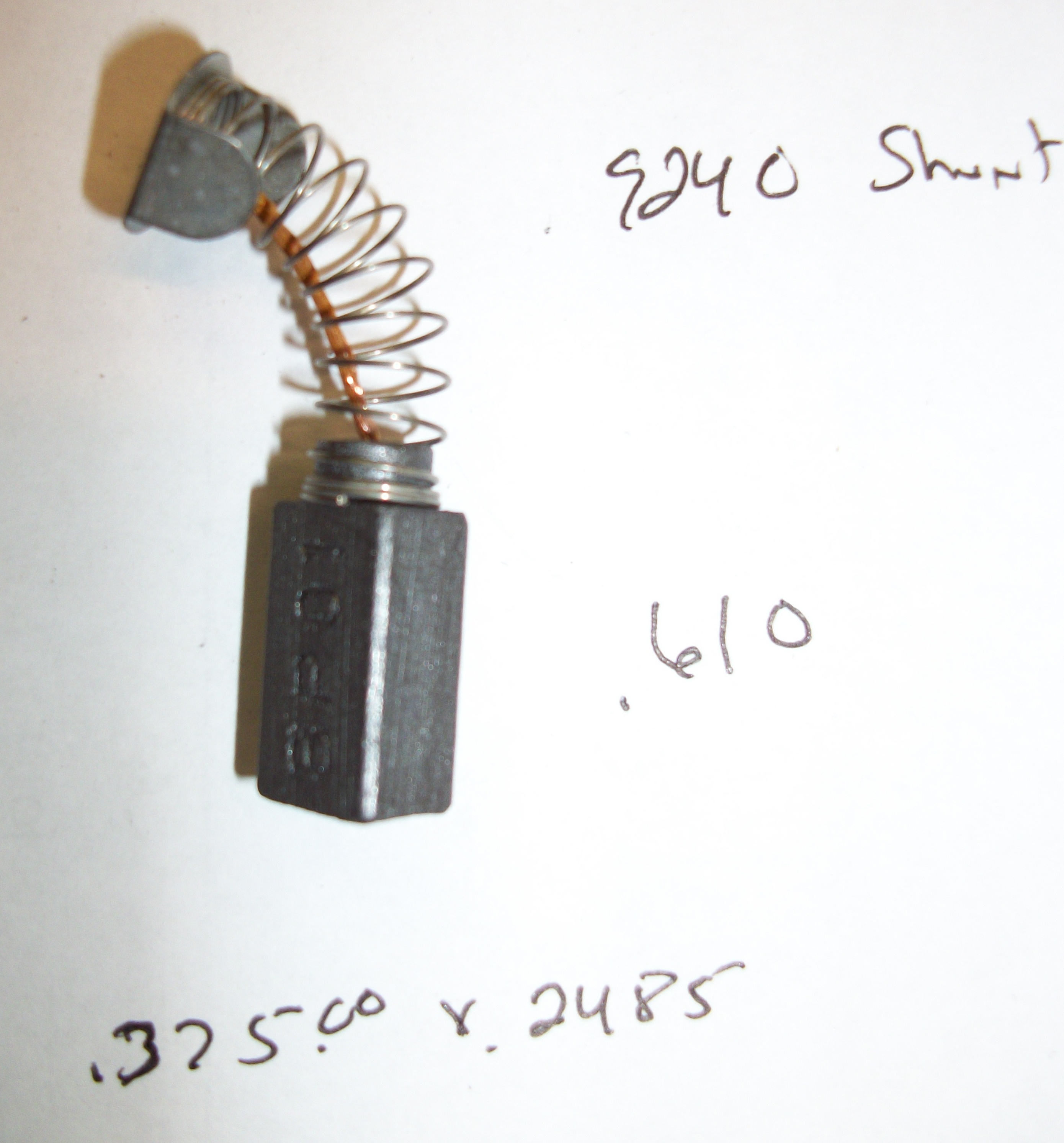

11-1b	11-1b	Unknown	DC Brush	0.6100	0.2485	0.3750	BP01			Eared Cap	0.4200				0.3730	0.2400	0.2365	0.2800	0.0320	0.9240	0.0165	7	6

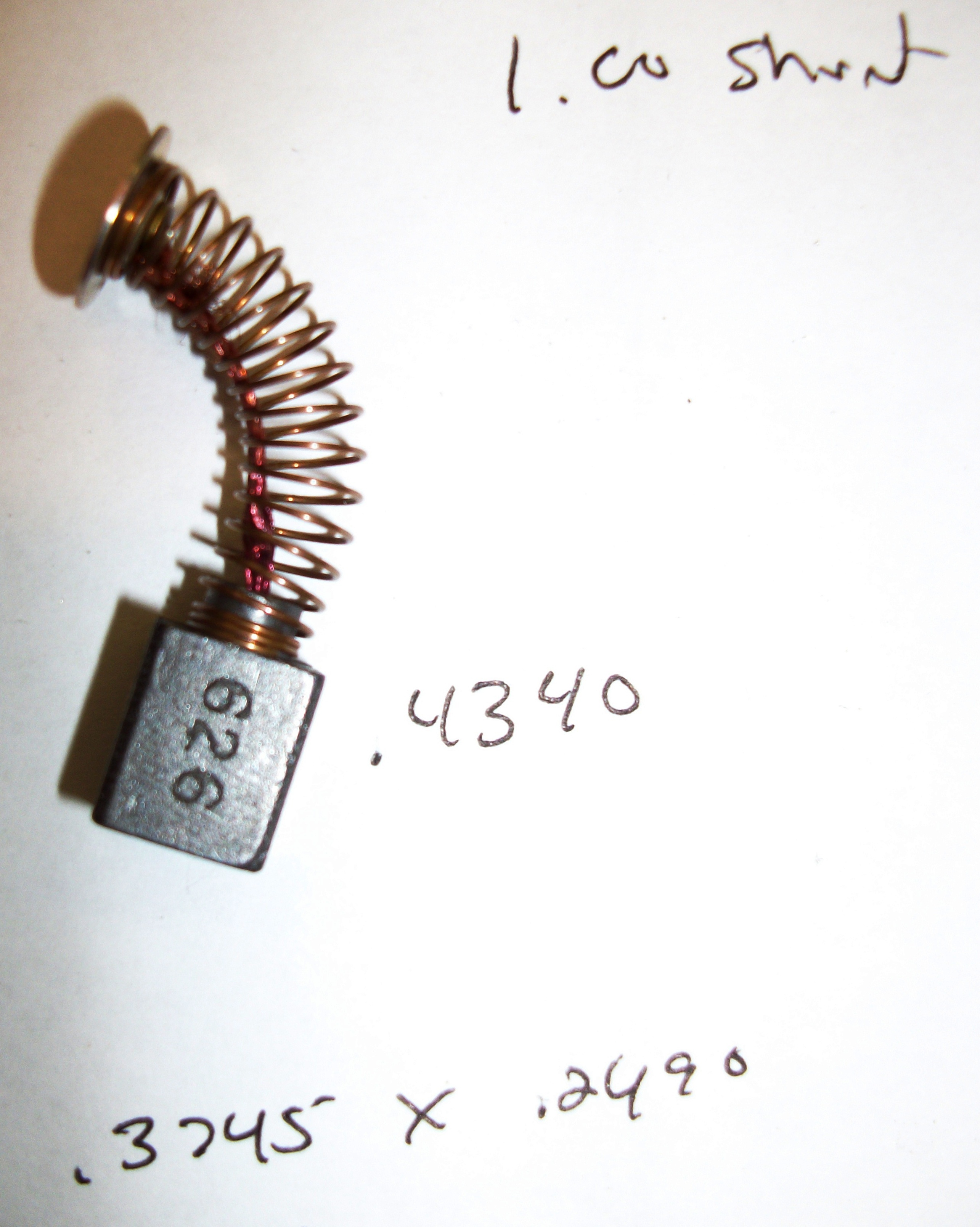

11-1c	11-1c	Unknown	DC Brush	0.4340	0.3750	0.2490	626	31253757032502	31-253757-032-5-02 6H6	Round	0.4260							0.2720	0.0450	1.0000	0.0175	13	6

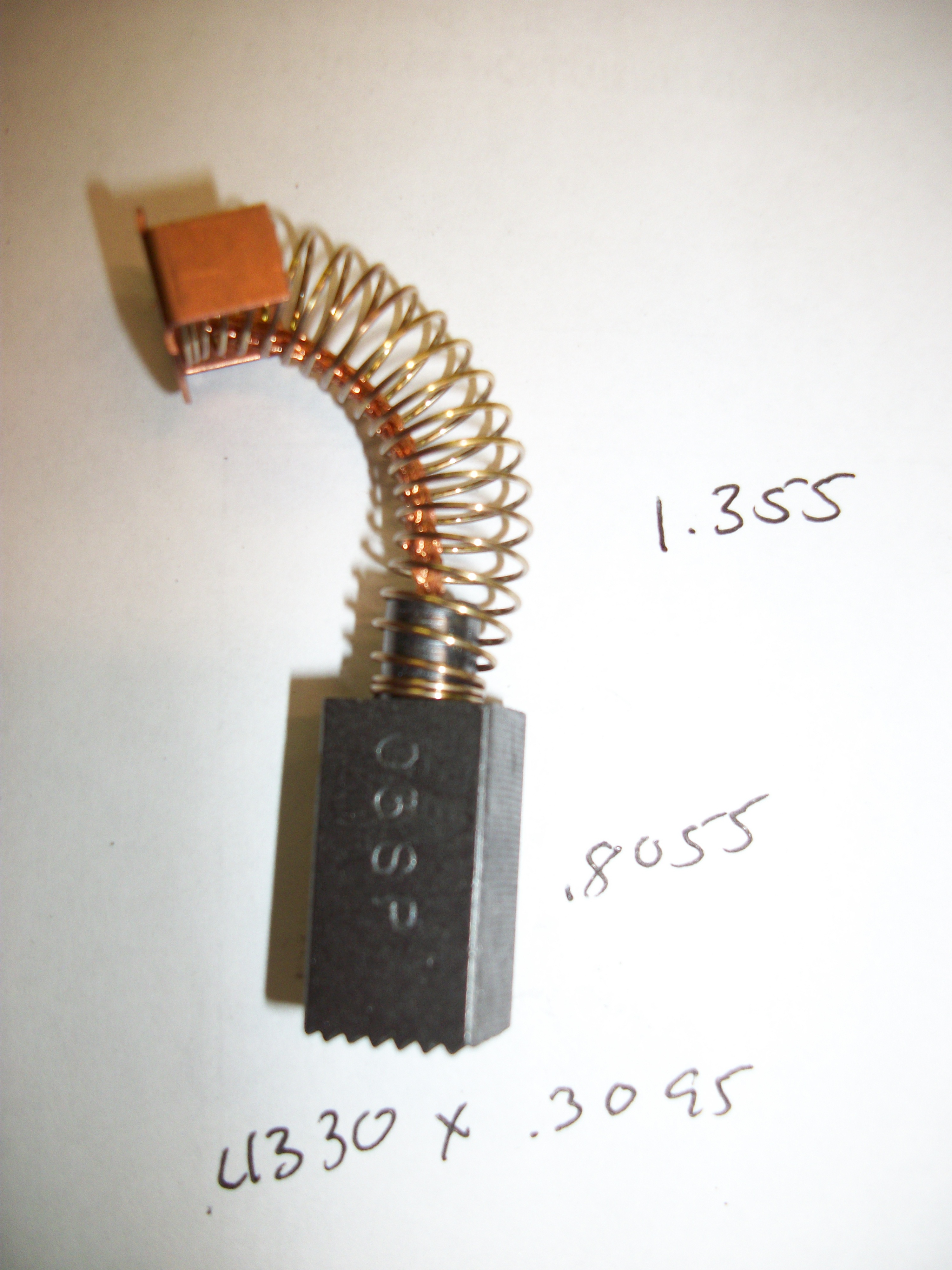

11-1d	11-1d	Unknown	DC Brush	0.8055	0.4330	0.3095	03SP	16314310034401	16-314310-034-4-01  K194	Eared Cap	0.4970				0.4325	0.2405	0.3140	0.3430	0.0515	1.3850	0.0235	18	6

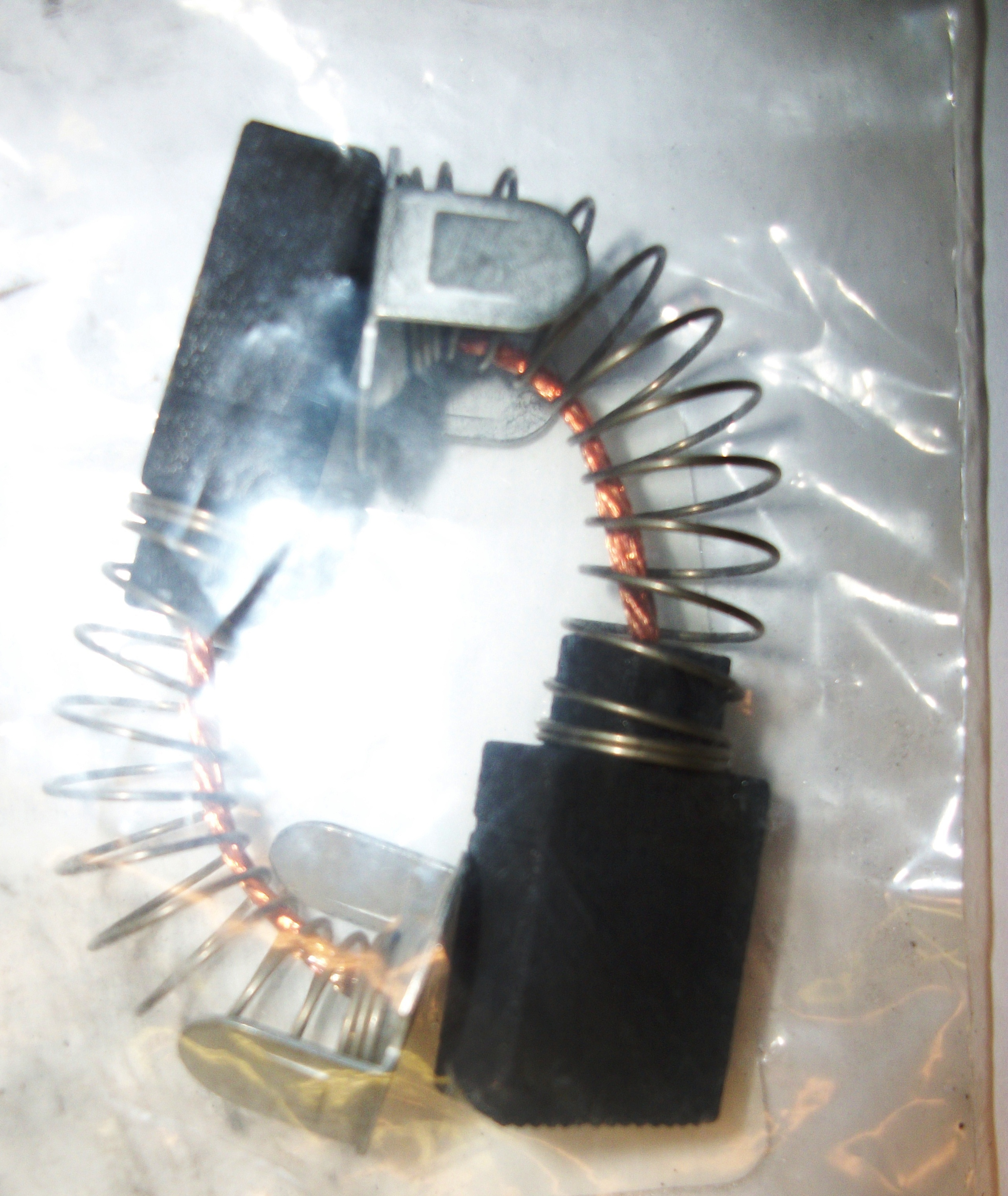

11-2a	11-2a	Baldor	DC Brush				BP500BK08SP			Eared Cap	0.7450				0.6255	0.3055	0.4565	0.4620	0.0470	1.2635	0.0255	10	6

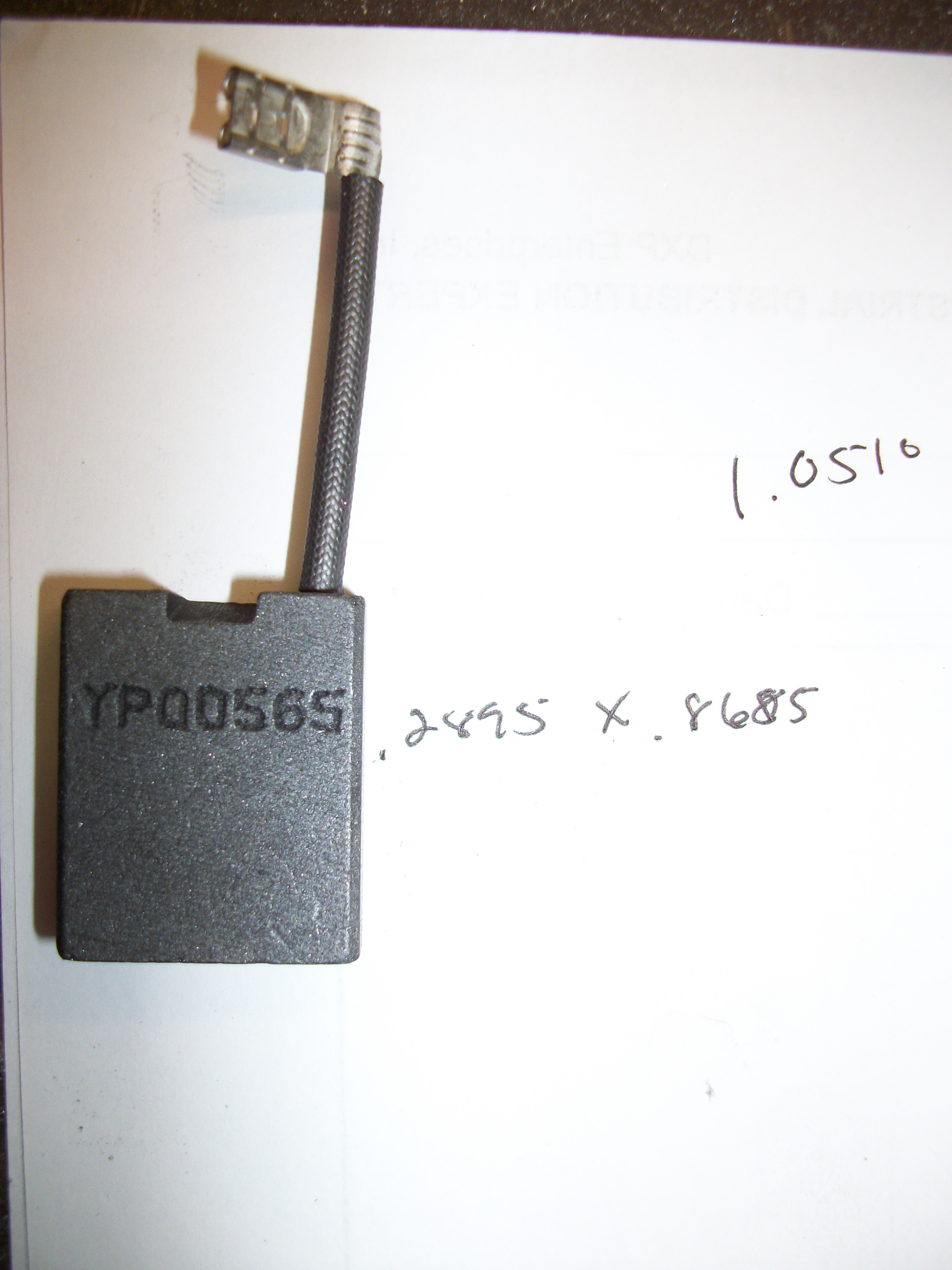

11-2b	11-2b	Unknown	DC Brush		0.8685	0.2895	YP00565	80298710248419	80-298710-248-4-19 H610	Quick Connect Terminal			0.2290	0.0995						1.0510

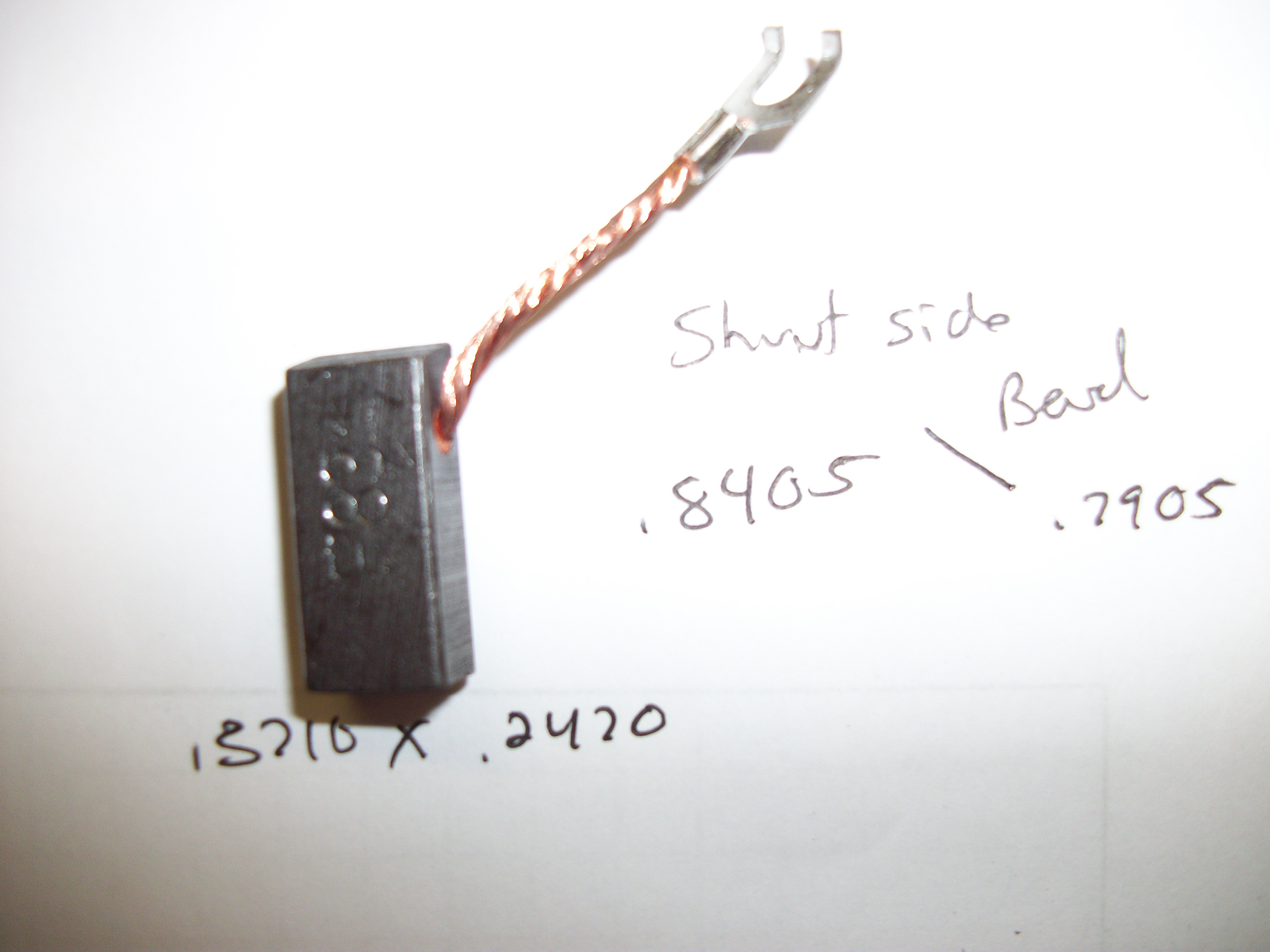

11-3a	11-3a	Unknown	DC Brush	0.8405	0.3710	0.2470	49200048	90253784200402	80-253741	Pressed Tube		0.1475	0.2750							0.7905
11-3b	No Image	Unknown	Spring				47400008

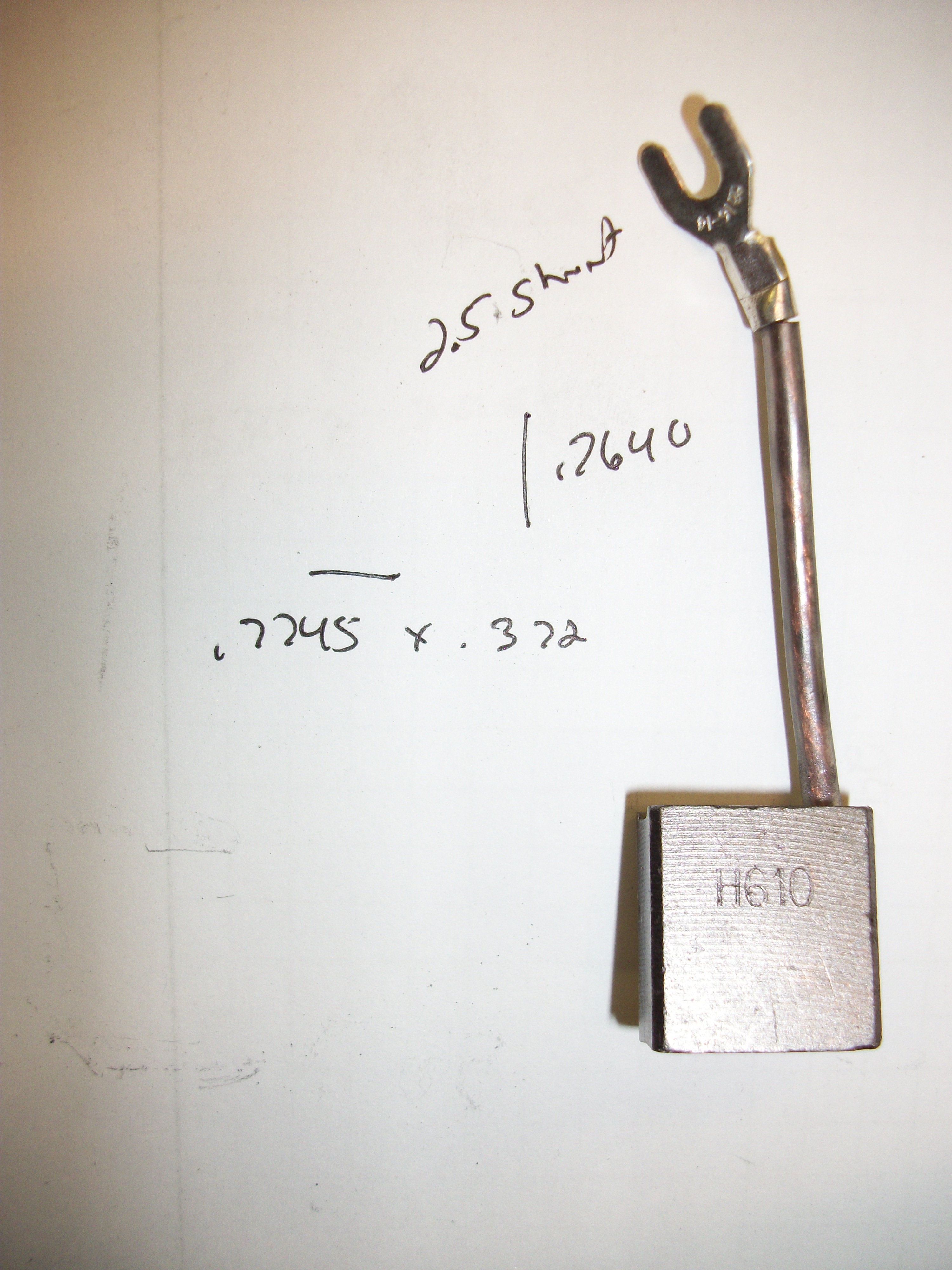

11-3c	11-3c	Unknown	DC Brush	0.7640	0.7745	0.3720	H610	35377884144401	35-377841	Pressed Tube		0.1435	0.3730							2.5000

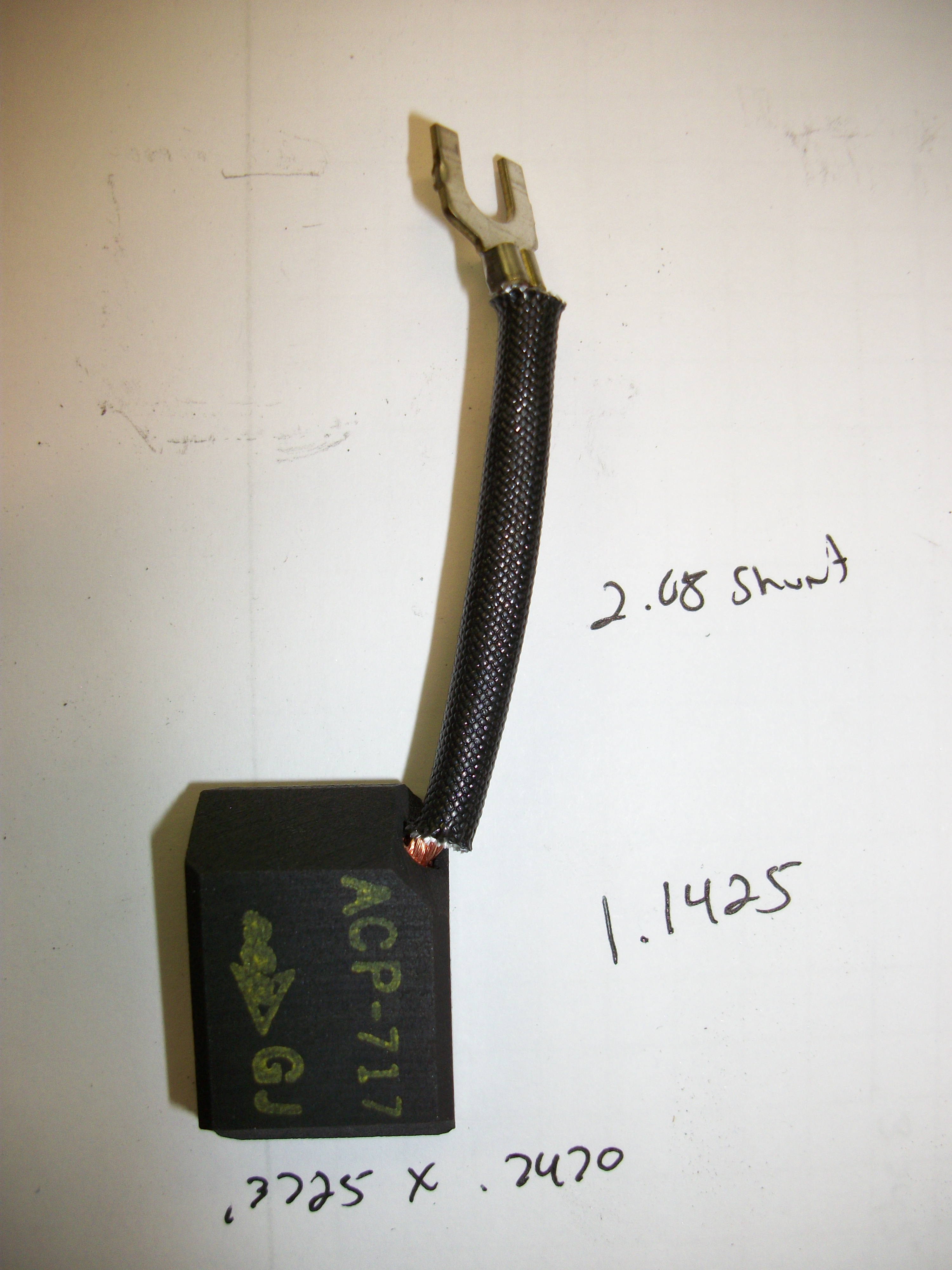

11-3d	11-3d	Unknown	DC Brush	1.1425	0.7470	0.3725	ACP-717	34377411404201	34-377421	Pressed Tube		0.1970	0.3735						0.8650	2.0800

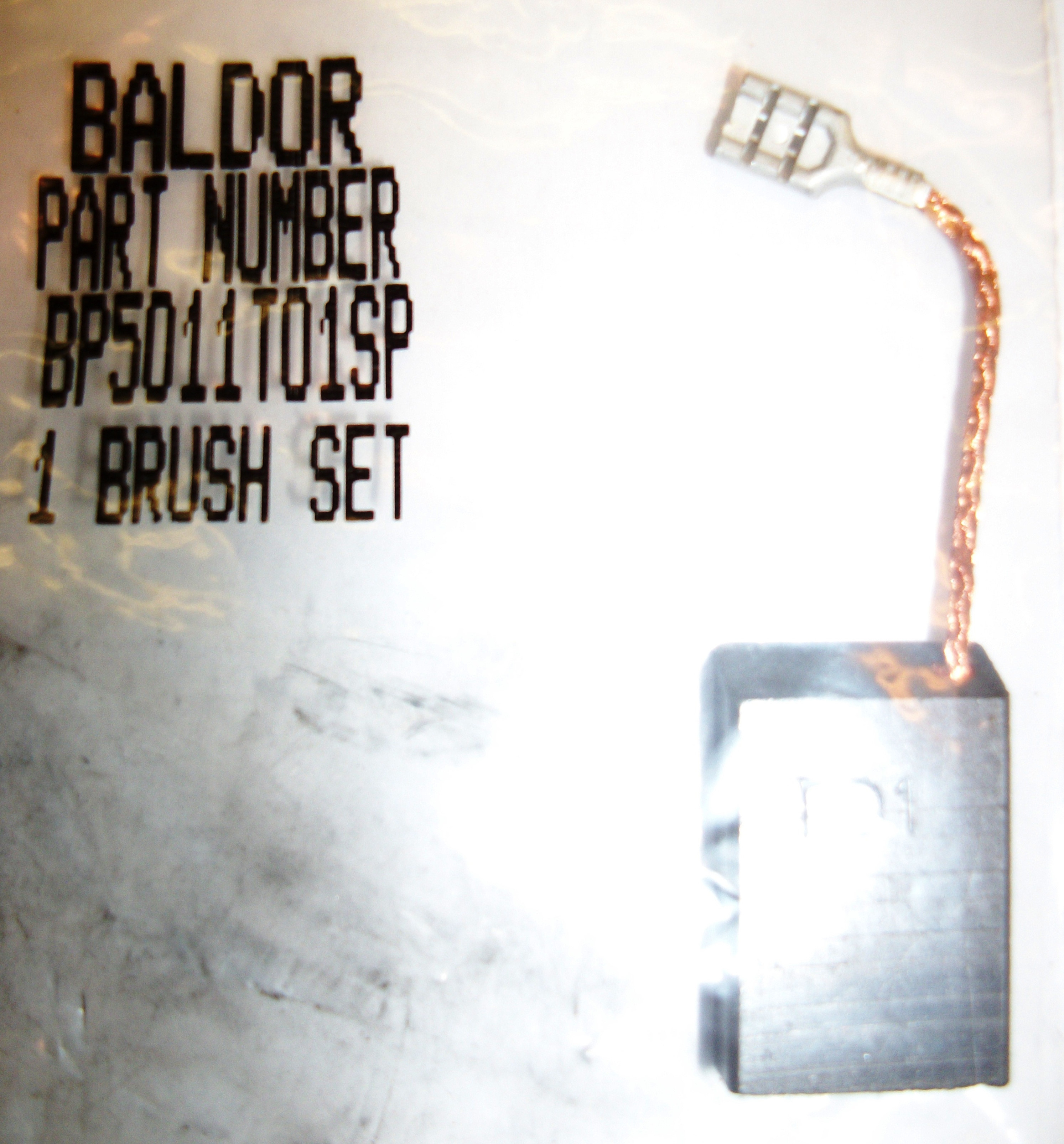

11-4a	11-4a	Baldor	DC Brush				BP5011T01SP	80226410208402	80-226442	Quick Connect Terminal			0.2205	0.0900					0.5850

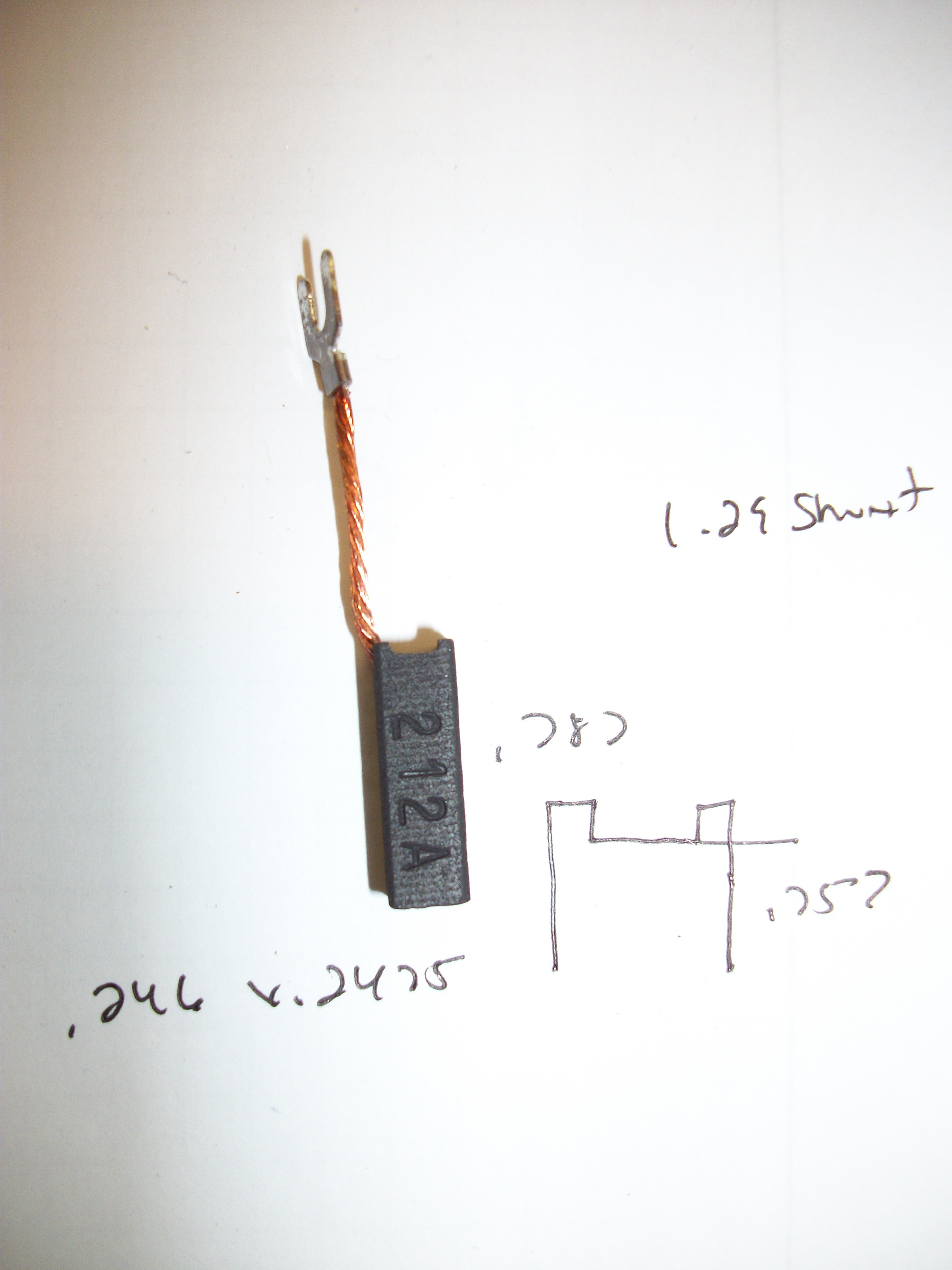

11-4b	11-4b	Unknown	DC Brush	0.7870	0.2460	0.2475	65705K51	48252581140101	212-A  H57	Pressed Tube		0.1270	0.3060						0.0470	1.2900
11-4c	No Image	Baldor	1B17-535D180FCC				P07

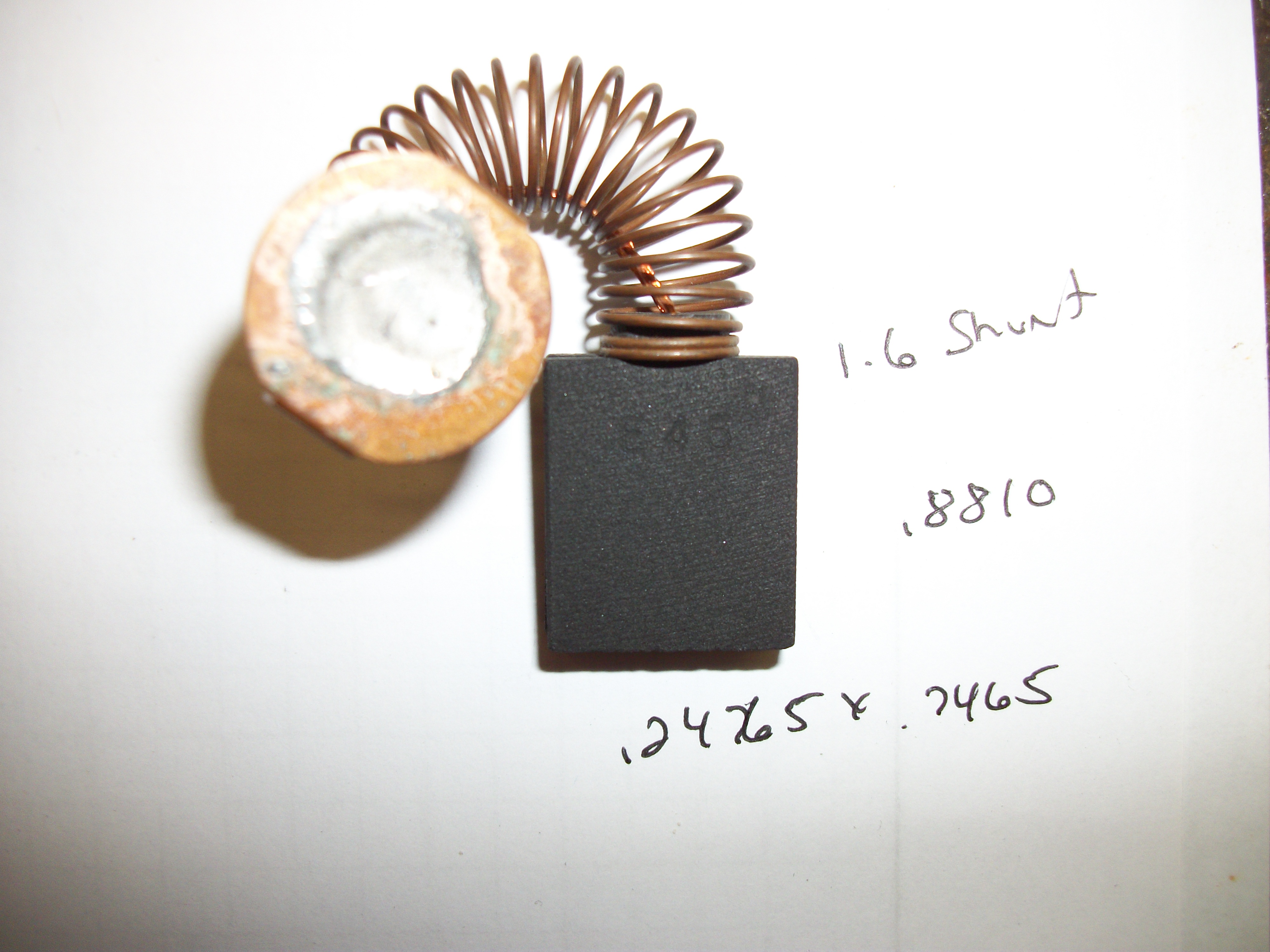

11-5a	11-5a	Unknown	DC Brush	0.8810	0.7465	0.2465	ACP-890			Eared Cap	0.8230				0.7230	0.2360	0.3695	0.4490	.031 x 2	1.6000	0.0310	13	6
11-5b	No Image	Baldor	DC Brush				BP5000A0114SP			Eared Cap	0.4985				0.4345	0.2400	0.3215	0.3220	0.0570	1.6020	0.0215	19	6
11-5c	No Image	Unknown	DC Brush				H03
